794611-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece 3mm Centerline, 250V, 5 A max. CONN SOCKET 26-30AWG TIN CRIMP Mate-N-Lok 26-30 awg contact socket Pin & Socket Connectors SOCKET 26-30 AWG Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = ReceptacleWire Range = 0.05-0.15 [30-26] mm [AWG]Bright Tin Contact Mating Area PlatingLoose PieceSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector CONTACT, SOCKET, 30-26 AWG, CRIMP Connector,Shell;Receptacle;5A(Max.);250;PhosphorBronze;26-30AWG;AMP Contact; female; 0.05÷0.12mm2; 26÷30AWG; Micro MATE-N-LOK; tinned TE Connectivity Micro MATE-N-LOK 系列 母 压接接线端子, 压接, 镀锡触点 MICRO MNL RPT CNT,LS PC,TIN |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 海关税号 | 85369010 | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 5 A |
机械参数
| 重量 | 0.007 | 包装方式 | Bulk |
| 导线线规 | 26-30 AWG | 端接方式 | Crimp |
| 触头类型 | Power | 柱间距 | 3mm |
| 安装类型 | crimped | 插针或插孔 | Socket |
| 连接器类型 | Connector Power | 接触镀层 | Gold |
| 安装样式 | for cable | 触头材料 | Phosphor Bronze |
| 包装数量 | Loose Piece | 连接器 - 电缆 | contact |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 接触件端接 | Crimp | 接触镀层厚度 | 59µin (1.50µm) |
| 线规或范围 - AWG | 30-26 | 线规或范围 - mm² | 0.05-0.15 [30-26] |
| 触点材料 - 镀层 | tinned | ||
产品信息
| SPG | 1 | 类型 | Stamped |
| 连接器性别 | SKT | 系列 | Mate-N-Lok |
| CAD图纸 | 3D CAD Model | 制造商全称 | AMP |
| 产品子类型 | Contact | 适配器系列 | Micro MATE-N-LOK |
| 单元数量 | 1 | 适用产品/相关产品 | :Micro MATE-N-LOK Connectors |
环境参数
| 工作温度 | +105°C | ||
文档与媒体
相关型号
91502-1
te connectivity / amp
General Hand Tool Used In The Aircraft And Military Industries Crimpers HAND TOOL/DIE 26-30 TOOL CERTI-CRIMP 26-30AWG Mate-N-Lok 3mm crimp tool,26-30 awg CRIMP TOOL, 0.05-0.15MM M/MNL Mate-N-Lok3mmcrimptool,26-30awg Tool: for crimping; terminals; 30÷26AWG; Application:794611 Crimping tool, 91502-1, TE Connectivity TE Connectivity CERTI-CRIMP II 系列 Micro MATE-N-LOK Contacts 压接工具 , 适用于30 → 26 AWG 线规格 SDE TOOL & DIE 30-26 MICRO MNL
794617-8
te connectivity / amp
Conn Housing RCP 8 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RCPT 3MM 8POS DL MATE-N-L 8 way 2 row receptacle Mate-N-Lok Pin & Socket Connectors RECPT DUAL ROW 8P Conn Housing RCP 8 POS 3mm Crimp ST Cable Mount Conn Housing RCP 8 POS 3mm Crimp ST Cable Mount Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 8Number of Rows = Dual3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector HOUSING, RECEPTACLE, 8 WAY, NYLON Connector,SoftShell;Nylon;Receptacle;Black;8;Dual;0.118in.;UL94V-0 Plug; wire-board; female; PIN:8; w/o terminals; 3mm; for cable Crimp housing Pitch3 mm Poles 2 x 4 MATE-N-LOK Micro, 794617-8, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 2 行 3mm 节距 8 路 直 母 压接连接器外壳 8POS,MICRO MNL,RCPT HSG
1-794617-4
te connectivity / amp
Conn Housing RCP 14 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RCPT 3MM 14POS DL MATE-N-L Housing FH 14 way 2 row Rec M Mate-n-Lok Pin & Socket Connectors RECPT DUAL ROW 14P Conn Housing RCP 14 POS 3mm ST Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 14Number of Rows = Dual3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector CONN, INLINE PLUG & SOCKET Connector,SoftShell;Nylon;Receptacle;Black;14;Dual;0.118in.;UL94V-0 Crimp housing Pitch3 mm Poles 2 x 14 MATE-N-LOK Micro, 1-794617-4, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 2 行 3mm 节距 14 路 直 母 连接器外壳 14POS,MICRO MNL,RCPT HSG
1445022-5
te connectivity / amp
Conn Housing RCP 5 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RECEPT 3MM 5POS MATE-N-LOK 5 way 1 row receptacle Mate-N-Lok Pin & Socket Connectors RECPT SINGLE ROW 5P Conn Housing RCP 5 POS 3mm ST Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 5Number of Rows = Single3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector RECEPTACLE, SINGLE ROW, 5WAY Connector,SoftShell;Nylon;Receptacle;Black;5;Single;0.118in.;UL94V-0 Crimp housing Pitch3 mm Poles 1 x 5 MATE-N-LOK Micro, 1445022-5, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 3mm 节距 5 路 直 母 连接器外壳 MICRO MNL RFECEPT HSG SINGLE R
1-794617-8
te connectivity / amp
Conn Housing RCP 18 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RCPT 3MM 18POS DL MATE-N-L Housing FH 18 way 2 row Rec M Mate-n-Lok Pin & Socket Connectors RECPT DUAL ROW 18P Conn Housing RCP 18 POS 3mm ST Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 18Number of Rows = Dual3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector PIN & SOCKET CONNECTOR HOUSING Connector,SoftShell;Nylon;Receptacle;Black;18;Dual;0.118in.;UL94V-0 Crimp housing Pitch3 mm Poles 2 x 18 MATE-N-LOK Micro, 1-794617-8, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 2 行 3mm 节距 18 路 直 母 电缆安装 连接器外壳 18POS,MICRO MNL,RCPT HSG

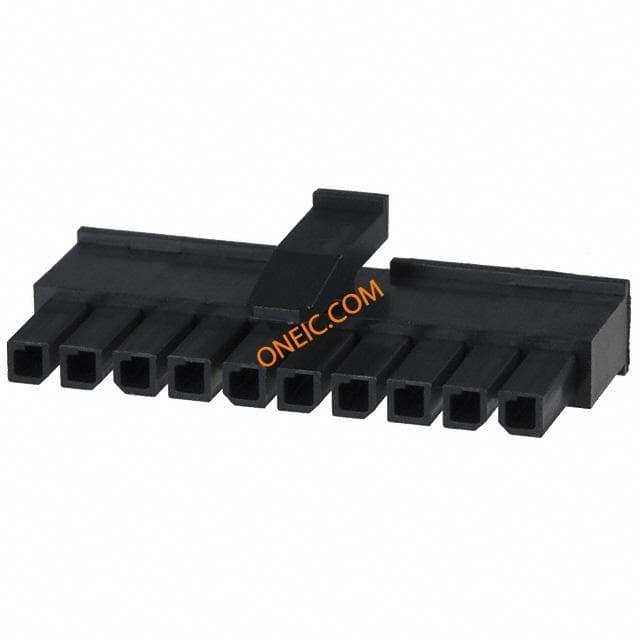

1-1445022-0
te connectivity / amp
Conn Housing RCP 10 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RECEPT 3MM 10POS MATE-N-LOK Micro MATE-N-LOK Receptacle housing 10P Pin & Socket Connectors RECPT SINGLE ROW 10P 1-1445022-0 Conn Housing RCP 10 POS 3mm ST Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 10Number of Rows = Single3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector Connector,SoftShell;Nylon;Receptacle;Black;10;Single;0.118in. MICRO MNL RFECEPT HSG SINGLE R
1445022-3
te connectivity / amp
Conn Housing RCP 3 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RECEPT 3MM 3POS MATE-N-LOK 3 way 1 row receptacle Mate-N-Lok Pin & Socket Connectors RECPT SINGLE ROW 3P Conn Housing RCP 3 POS 3mm ST Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 3Number of Rows = Single3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector HOUSING, RECEPTACLE, SINGLE ROW, 3WAY Connector,SoftShell;Nylon;Receptacle;Black;3;Single;0.118in.;UL94V-0 Crimp housing Pitch3 mm Poles 1 x 3 MATE-N-LOK Micro, 1445022-3, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 3mm 节距 3 路 直 母 连接器外壳 MICRO MNL RFECEPT HSG SINGLE R
1445022-8
te connectivity / amp
Conn Housing RCP 8 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RECEPT 3MM 8POS MATE-N-LOK Pin & Socket Connectors RECPT SINGLE ROW 8P Conn Housing RCP 8 POS 3mm ST Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 8Number of Rows = Single3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector Connector,SoftShell;Nylon;Receptacle;Black;8;Single;0.118in.;UL94V-0 TE Connectivity Micro MATE-N-LOK 系列 1 行 3mm 节距 8 路 直 母 电缆安装 压接连接器外壳 MICRO MNL RFECEPT HSG SINGLE R

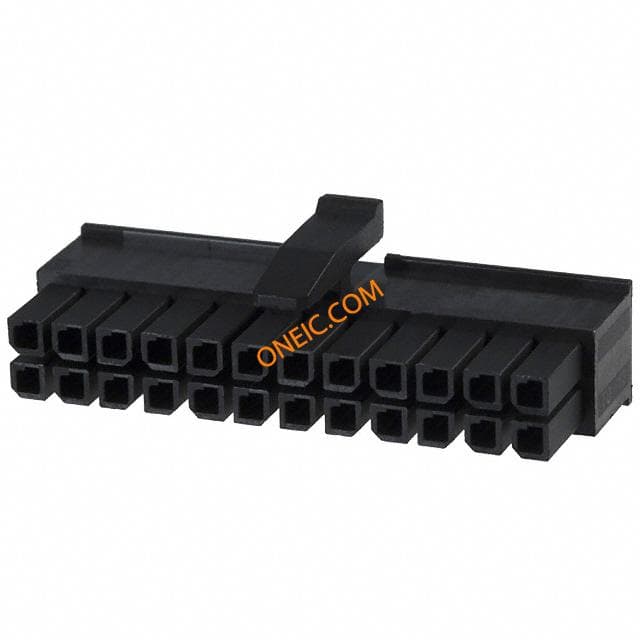

2-794617-4
te connectivity / amp
Conn Housing RCP 24 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RCPT 3MM 24POS DL MATE-N-L 24 way 2 row receptacle Mate-N-Lok Pin & Socket Connectors RECPT DUAL ROW 24P Conn Housing RCP 24 POS 3mm ST Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 24Number of Rows = Dual3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector CONNECTOR HOUSING, RCPT, 24WAY, NYLON Connector,SoftShell;Nylon;Receptacle;Black;24;Dual;0.118in.;UL94V-0 Crimp housing Pitch3 mm Poles 2 x 12 MATE-N-LOK Micro, 2-794617-4, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 2 行 3mm 节距 24 路 直 母 压接连接器外壳 24POS,MICRO MNL,RCPT HSG
1445022-9
te connectivity / amp
Conn Housing RCP 9 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RECEPT 3MM 9POS MATE-N-LOK Pin & Socket Connectors RECPT SINGLE ROW 9P Conn Housing RCP 9 POS 3mm ST Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 9Number of Rows = Single3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector MICRO MNL RFECEPT HSG SINGLE R
1-794617-6
te connectivity / amp
Conn Housing RCP 16 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RCPT 3MM 16POS DL MATE-N-L 16 way 2 row receptacle Mate-N-Lok Pin & Socket Connectors RECPT DUAL ROW 16P Conn Housing RCP 16 POS 3mm ST Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 16Number of Rows = Dual3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector HOUSING, RCPT, DUAL ROW, 16 WAY, NYLON Connector,SoftShell;Nylon;Receptacle;Black;16;Dual;0.118in.;UL94V-0 Crimp housing Pitch3 mm Poles 2 x 16 MATE-N-LOK Micro, 1-794617-6, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 2 行 3mm 节距 16 路 直 母 连接器外壳 16POS,MICRO MNL,RCPT HSG
794617-2
te connectivity / amp
Conn Housing RCP 2 POS ST 3mm Centerline, 250V, 5 A max. CONN RCPT 3MM 2POS DL MATE-N-L 2 way 2 row receptacle Mate-N-Lok Pin & Socket Connectors RECPT DUAL ROW 2P Conn Housing RCP 2 POS ST Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 2Number of Rows = Dual3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector HOUSING, RECEPTACLE, 2 WAY, NYLON Connector,SoftShell;Nylon;Receptacle;Black;2;Dual;0.118in.;UL94V-0 Plug; wire-board; female; PIN:2; w/o terminals; 3mm; for cable Crimp housing Pitch3 mm Poles 2 MATE-N-LOK Micro, 794617-2, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 2 行 3mm 节距 2 路 直 母 连接器外壳 2POS,MICRO MNL,RCPT HSG
91391-2
te connectivity / amp
SDE COMM Micro MNL Die Set Punches & Dies SDE ERGO DIE MICRO MNL SDE ERGO DIE MICRO MNL DIE SET, SDE Crimping dies, 91391-2, TE Connectivity SDE COMM MICRO MNL DIE SET
2-794617-2
te connectivity / amp
Conn Housing RCP 22 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RCPT 3MM 22POS DL MATE-N-L TE Connectivity Micro MATE-N-LOK Series 3mm 22 Way 2 Row Straight Free Hanging Power Distribution Power to the Board 22P HSG RECEPT Conn Housing RCP 22 POS 3mm ST Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 22Number of Rows = Dual3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector PLUG & SOCKET HOUSING, RECEPTACLE, NYLON Crimp housing Pitch3 mm Poles 2 x 11 MATE-N-LOK Micro, 2-794617-2, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 2 行 3mm 节距 22 路 直 母 电缆安装 压接连接器外壳 22POS,MICRO MNL,RCPT HSG
91391-1
te connectivity / amp
SDE PEW 12Micro MNL Hand Tool Crimpers SDE ERGO TL & DIE MICRO MNL SDE ERGO TL & DIE MICRO MNL SDE PEW 12MICRO MNL HAND TOOL CRIMP TOOL, MICRO MATE-N-LOK PIN & SOCKET CONTACTS Crimping tool, 91391-1, TE Connectivity

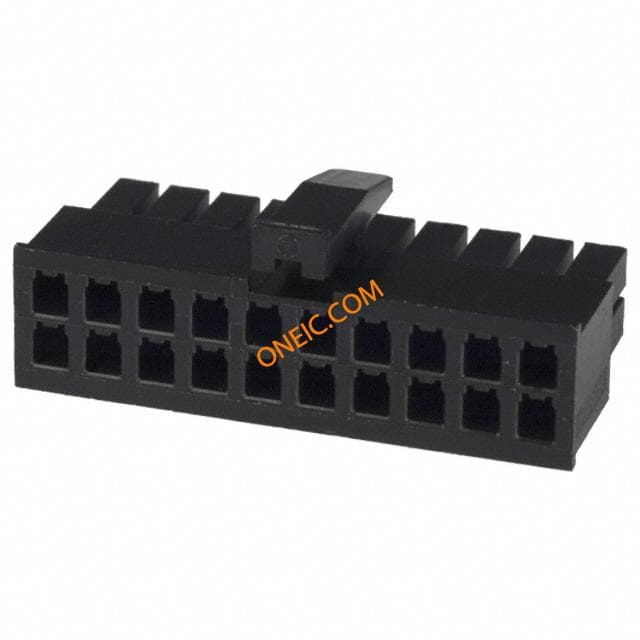

2-794617-0
te connectivity / amp
Conn Housing RCP 20 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RCPT 3MM 20POS DL MATE-N-L 20 way 2 row receptacle Mate-N-Lok Pin & Socket Connectors RECPT DUAL ROW 20P Conn Housing RCP 20 POS 3mm ST Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 20Number of Rows = Dual3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector RECEPTACLE, DUAL ROW, 20WAY Connector,SoftShell;Nylon;Receptacle;Black;20;Dual;0.118in.;UL94V-0 Crimp housing Pitch3 mm Poles 2 x 10 MATE-N-LOK Micro, 2-794617-0, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 2 行 3mm 节距 20 路 直 母 压接连接器外壳 20POS,MICRO MNL,RCPT HSG

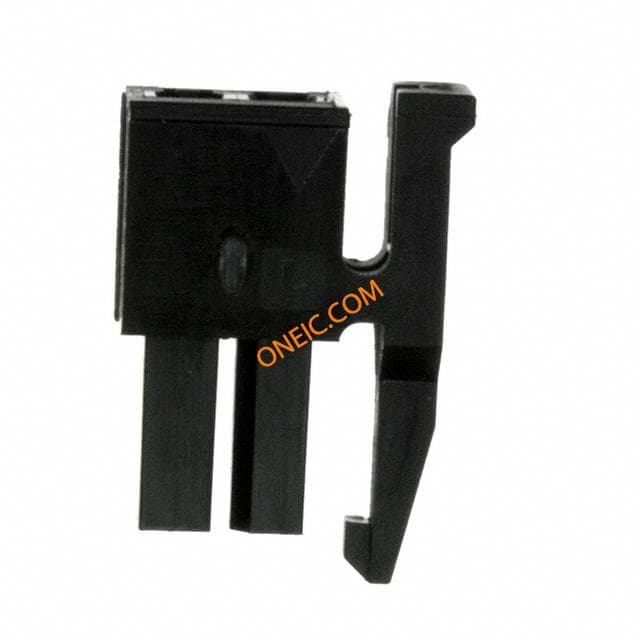

2029047-2
te connectivity / amp
Conn Housing RCP 2 POS 3mm Crimp ST Loose Piece Mini-Universal MATE-N-LOK Connectors CONN RCPT 3MM 2POS MICRO M-N-L Connector,housing,recpt,M-N-L,2 Way,Blk Pin & Socket Connectors RECPT 2 POS BLACK LOW PROFILE Conn Housing RCP 2 POS 3mm Crimp ST Loose Piece Product Highlights:ConnectorHousingNot PreloadedHousing Gender = ReceptacleContact Gender = SocketSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector RECEPTACLE HOUSING, 2WAY, BLACK CON,HSG,RECP,M-N-L,2W,BLK Crimp housing Pitch3 mm Poles 2 MATE-N-LOK Micro, 2029047-2, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 1 行 3mm 节距 2 路 直 母 压接连接器外壳 2P MICRO MNL RCPT HSG SR SIDE

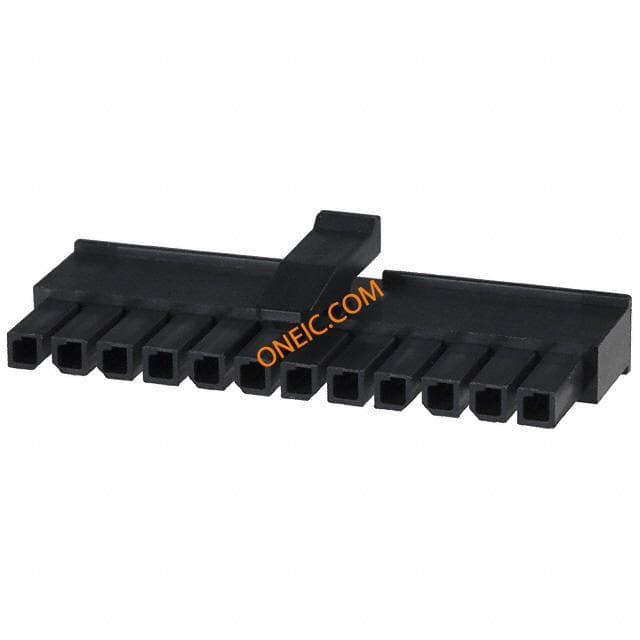

1-1445022-2
te connectivity / amp
Conn Housing RCP 12 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RECEPT 3MM 12POS MATE-N-LOK Pin & Socket Connectors RECPT SINGLE ROW 12P Conn Housing RCP 12 POS 3mm ST Product Highlights:HousingHousing Type = ReceptacleHousing Accepts Contact Type = Socket12 PositionsNumber of Rows = 1Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector Connector,SoftShell;Nylon;Receptacle;Black;12;Single;0.118in. MICRO MNL RFECEPT HSG SINGLE R

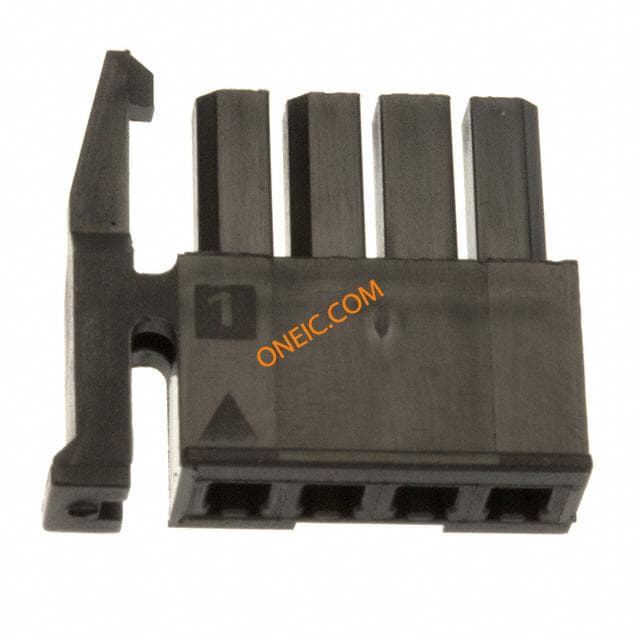

2029047-4
