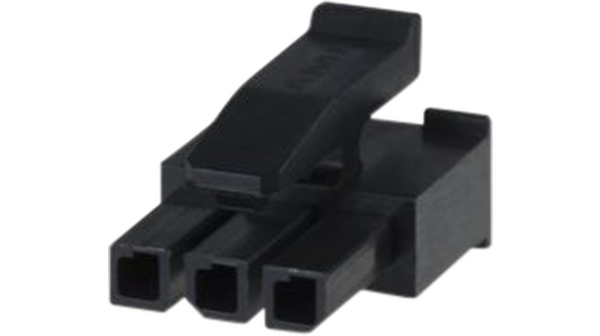

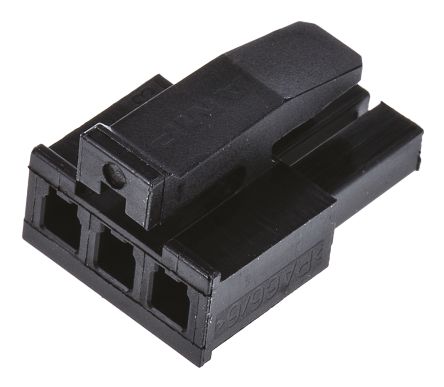

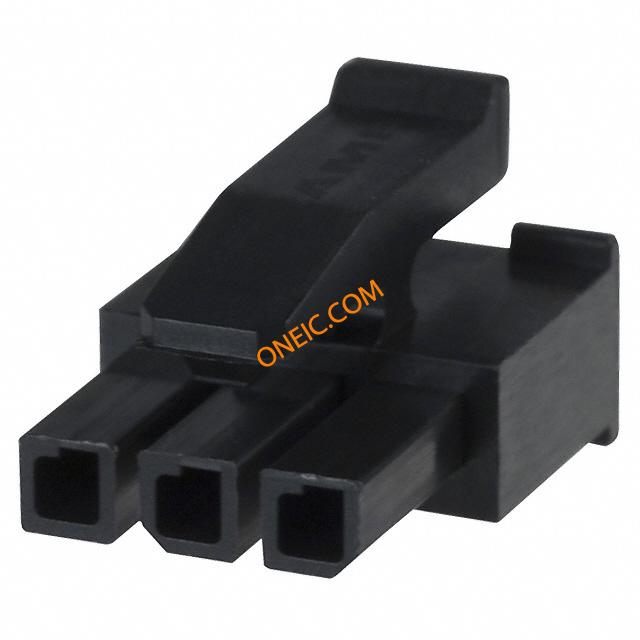

1445022-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 3 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RECEPT 3MM 3POS MATE-N-LOK 3 way 1 row receptacle Mate-N-Lok Pin & Socket Connectors RECPT SINGLE ROW 3P Conn Housing RCP 3 POS 3mm ST Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 3Number of Rows = Single3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector HOUSING, RECEPTACLE, SINGLE ROW, 3WAY Connector,SoftShell;Nylon;Receptacle;Black;3;Single;0.118in.;UL94V-0 Crimp housing Pitch3 mm Poles 1 x 3 MATE-N-LOK Micro, 1445022-3, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 3mm 节距 3 路 直 母 连接器外壳 MICRO MNL RFECEPT HSG SINGLE R |
| 分类 |
商业参数
| 其他名称 | A30259 | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | :CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 250 V | 接触电阻 | :20mohm |
| 击穿电压 | :1500V | 最大额定电流 | 5 A |
| 绝缘电阻 | :1000Mohm | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Black | 深度 | 14.04 mm |
| 间距 | 3 mm | 宽度 | 8.7mm |
| 高度 | 8.7 mm | 长度 | 10mm |
| 重量 | 0.046 | 材料（通用） | :Nylon |
| 包装方式 | Bulk | 导线线规 | (20-24)/(26-30) AWG |
| 触头类型 | Female Socket | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 紧固类型 | Latch Lock | 安装样式 | Wire |
| 排数 | 1 | 封装形式 | Receptacle |
| 锁定特性 | :Latch | 本体材料 | :Nylon (Polyamide) |
| 触头材料 | Phosphor Bronze | 壳体材料 | Nylon |
| 总长度 | 10 mm | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 连接器颜色 | :Black |
| 触点数 | 3 | 接触件端接 | Crimp |
| 位数 | 3 | 中心触点材料 | 3.00 [0.118] |
| 第一连接器安装类型 | :Socket | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | MATE-N-LOK |
| 产品子类型 | Housing | 适用产品/相关产品 | Centerline Soft Shell Pin & Socket Connector |
环境参数
| 工作温度 | -40C to 105C | ||
文档与媒体
相关型号
1445048-3
te connectivity / amp
Conn Housing PL 3 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN PLUG 3MM 3POS MATE-N-LOK 3 way 1 row panel plug Mate-N-Lok Pin & Socket Connectors PLUG SNGL PNL MNT 3P Conn Housing PL 3 POS 3mm ST Product Highlights:HousingHousing Type = PlugHousing Accepts Contact Type = Pin3 PositionsNumber of Rows = 1Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector No. of C Connector,SoftShell;Nylon;Plug;Black;3;Single;0.118in.;UL94V-0 Crimp housing Pitch3 mm Poles 1 x 3 MATE-N-LOK Micro, 1445048-3, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 3mm 节距 3 路 直 公 压接连接器外壳 PANEL MT SNGL ROW HSG 3 POS
1445099-3
te connectivity / amp
Conn Power HDR 3 POS 3mm Solder RA SMD 3 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3POS R/A 30GOLD SMD Pin & Socket Connectors MICRO MNL HDR ASSY MICRO MNL HDR ASSY SINGLE ROW MICRO MNL HDR ASSY SINGLE ROW Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
1445093-3
te connectivity / amp
Conn Power HDR 3 POS 3mm Solder ST Thru-Hole 3 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 3POS GOLD T/H Pin & Socket Connectors HDR VERT 3 POS 30 AU SINGLE ROW MICRO MNL HDR ASSY SINGLE ROW MICRO MNL HDR ASSY SINGLE ROW Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
2-1445085-3
te connectivity / amp
Conn Power HDR 3 POS 3mm Solder ST Thru-Hole 3 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3POS VERT T/H 15GOLD Pin & Socket Connectors micro mnl hdr assy s/row au lf 3mm Centerline, 250V, 5 A max. Product Highlights:ConnectorHeaderPreloadedHeader Gender = PlugContact Gender = PinSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector micro mnl hdr assy s/row au lf
2-1445054-3
te connectivity / amp
Conn Power HDR 3 POS 3mm Solder RA Thru-Hole 3 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3POS RT ANG T/H TIN Pin & Socket Connectors MICRO MNL HDR ASSY S/ROW LF 3mm Centerline, 250V, 5 A max. Product Highlights:ConnectorConnector Type = Header - PinThrough Hole Contact Termination Type3 PositionsNumber of Rows = 1Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector MICRO MNL HDR ASSY S/ROW LF
2-1445097-3
te connectivity / amp
Conn Power HDR 3 POS 3mm Solder RA Thru-Hole 3 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3POS R/A 30GOLD T/H Pin & Socket Connectors MICRO MNL HDR ASSY S/ROW AU LF Conn Power HDR 3 POS 3mm Solder RA Thru-Hole 3 Terminal 1 Port Product Highlights:ConnectorHeaderPreloadedHeader Gender = PlugContact Gender = PinSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector MICRO MNL HDR ASSY S/ROW AU LF
2-1445087-3
te connectivity / amp
Conn Power HDR 3 POS 3mm Solder ST SMD 3 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3POS VERT SMD 15GOLD Pin & Socket Connectors MICRO MNL HDR ASSY S/ROW AU LF Conn Power HDR 3 POS 3mm Solder ST SMD 3 Terminal 1 Port Product Highlights:Header AssemblyNumber of Positions = 3Number of Rows = SingleVertical Mount AngleMount Style = Surface MountSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector MICRO MNL HDR ASSY S/ROW AU LF
1445085-3
te connectivity / amp
Conn Power HDR 3 POS 3mm Solder ST Thru-Hole 3 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3POS STR 15GOLD T/H Pin & Socket Connectors MICRO MNL HDR ASSY SINGLE ROW 3mm Centerline, 250V, 5 A max. Product Highlights:ConnectorHeaderPreloadedHeader Gender = PlugContact Gender = PinSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
2-1445055-3
te connectivity / amp

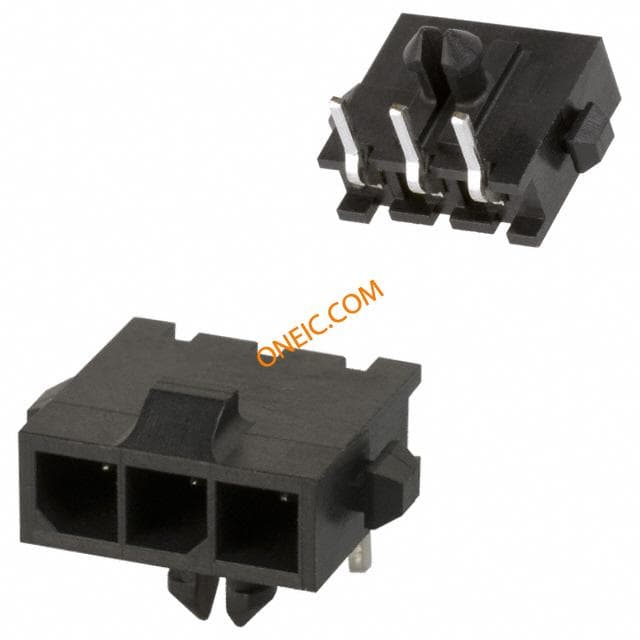

Conn Power HDR 3 POS 3mm Solder RA Thru-Hole 3 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 3POS R/A TIN TE Connectivity MATE-N-LOK Series 3mm Pitch 3 Way Right Angle Heavy Duty Power Connector, Solder Termination, 5A Pin & Socket Connectors HDR ASSY 3 POS R/A SINGLE ROW TIN Conn Power HDR 3 POS 3mm Solder RA Thru-Hole 3 Terminal 1 Port Product Highlights:ConnectorConnector Type = Header - PinThrough Hole Contact Termination Type3 PositionsNumber of Rows = 1Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector HEADER, RIGHT ANGLE, 1ROW, 3WAY 3WS/ROWPINHEADERR/A Pin header Pitch3 mm Poles 3 Contact DesignMale MATE-N-LOK, 2-1445055-3, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 3mm节距 3路 直角 PCB 针座, 焊接端接, 5A , 通孔 MICRO MNL HDR ASSY S/ROW LF
2-1445051-3
te connectivity / amp
Conn Power HDR 3 POS 3mm Solder ST Thru-Hole 3 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3POS VERT T/H TIN Pin & Socket Connectors MICRO MNL HDR ASSY S/ROW LF 3mm Centerline, 250V, 5 A max. Product Highlights:ConnectorConnector Type = Header - PinThrough Hole Contact Termination Type3 PositionsNumber of Rows = 1Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector MICRO MNL HDR ASSY S/ROW LF
2-1445057-3
te connectivity / amp

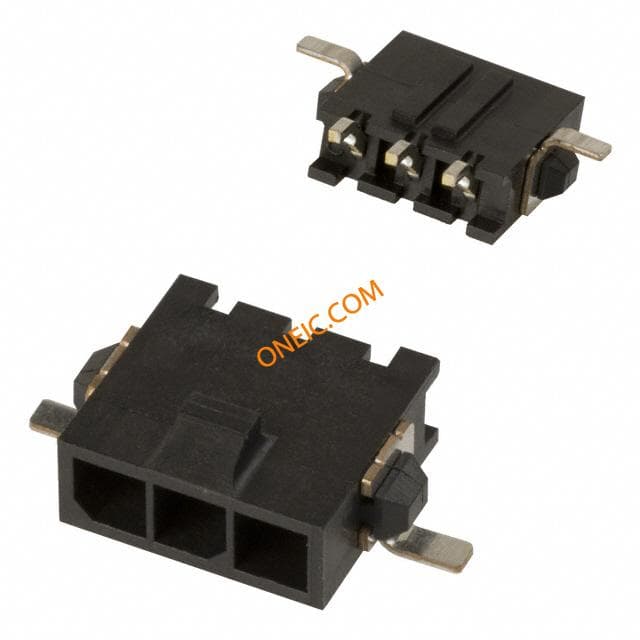

Conn Power HDR 3 POS 3mm Solder RA SMD 3 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 3POS R/A TIN SMD TE Connectivity MATE-N-LOK Series 3mm Pitch 3 Way Right Angle Heavy Duty Power Connector, Solder Termination, 5A Pin & Socket Connectors HDR ASSY 3 POS R/A SINGLE ROW TIN Conn Power HDR 3 POS 3mm Solder RA SMD 3 Terminal 1 Port Product Highlights:Header AssemblyNumber of Positions = 3Number of Rows = SingleRight Angle Mount AngleMount Style = Surface MountSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector HEADER, RIGHT ANGLE, SMT, 1ROW, 3WAY 3WS/ROWPINHDRR/ASMT Pin header Pitch3 mm Poles 3 Contact DesignMale MATE-N-LOK, 2-1445057-3, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 3路 3mm节距 直角 PCB 针座 , 焊接端接, 5A, 表面安装 MICRO MNL HDR ASSY SINGLE ROW
