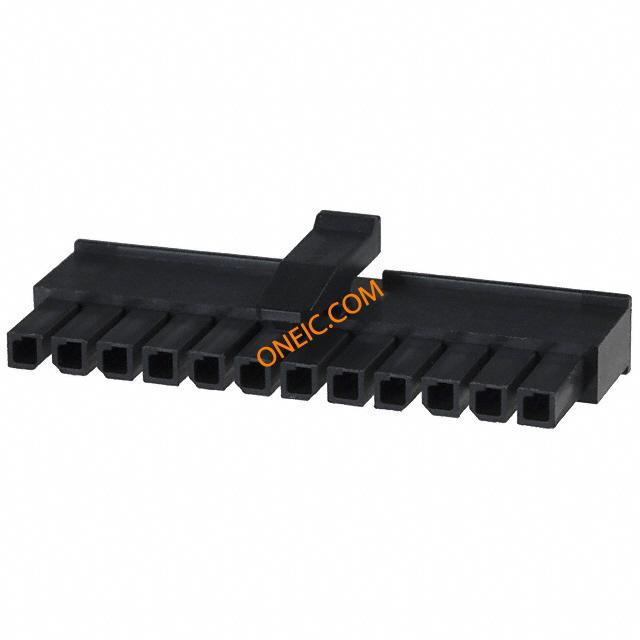

1-1445022-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 12 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RECEPT 3MM 12POS MATE-N-LOK Pin & Socket Connectors RECPT SINGLE ROW 12P Conn Housing RCP 12 POS 3mm ST Product Highlights:HousingHousing Type = ReceptacleHousing Accepts Contact Type = Socket12 PositionsNumber of Rows = 1Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector Connector,SoftShell;Nylon;Receptacle;Black;12;Single;0.118in. MICRO MNL RFECEPT HSG SINGLE R |
| 分类 |
商业参数
| 其他名称 | A30268 | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | 无铅定义 | Not relevant for lead free process |
| CSA档案号 | LR7189 | 标准编号 | CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-0 |
| 认证机构标志 | 已认证 | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 250 V | 供电电压 | 250 |
| 最大额定电流 | 5 A | ||
机械参数
| 颜色 | Black | 间距 | 0.118" (3.00mm) |
| 包装方式 | Bulk | 壳体颜色 | 黑色 |
| 触头类型 | Female Socket | 外壳颜色 | Black |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 接触镀层 | Without | 紧固类型 | Latch Lock |
| 安装样式 | Wire | 排数 | Single |
| 封装形式 | Receptacle | 外壳材料（壳体） | 母端, 母端 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Nylon |
| 包装数量 | 1 | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 12 |
| 接触件端接 | Crimp | 位数 | 12 |
| 中心触点材料 | 3.00 [0.118] | 典型触点布局 | 直插式 |
产品信息
| 备注 | Contacts Not Provided | 系列 | Micro Mate-N-Lok |
| 产品子类型 | Housing | ||
环境参数
| 工作范围 | 不密封 | 测试温度 | 标准件 - 非灼热丝 |
| 工作温度 | -40 – 105 °C [ -40 – 221 °F ] | ||
