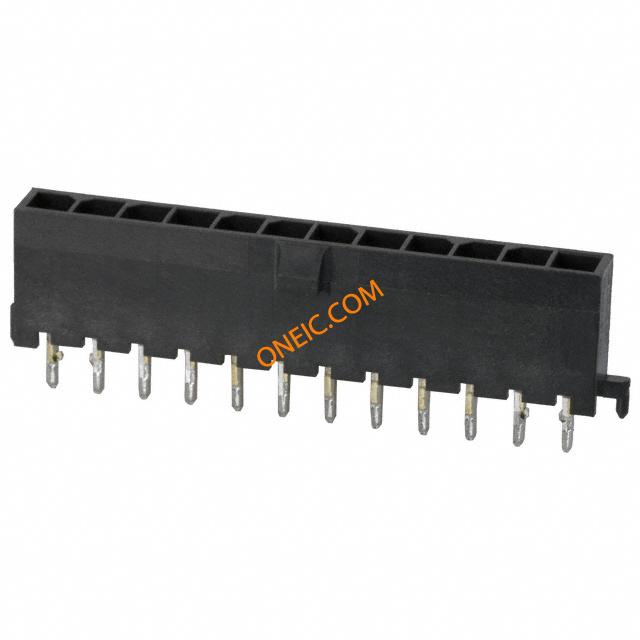

3-1445093-2

制造商	TE Connectivity Ltd.
描述	Conn Power HDR 12 POS 3mm Solder ST Thru-Hole 12 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 12POS GOLD T/H MICRO MNL HDR ASSY S/ROW AU LF MICRO MNL HDR ASSY S/ROW AU LF Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
分类	工具与焊接解决方案压接钳、压接机、压力机压接钳

对参数有疑问？问 AI 助手

商业参数

标准包装规格

标准包装数量

Bulk

合规参数

RoHS	Lead free / RoHS Compliant	无铅定义	Reflow solder capable to 245Â°C, Reflow solder capable to 260Â°C
RoHS/ELV合规状态	RoHS compliant, ELV compliant	材料阻燃等级	UL 94V-0

机械参数

颜色	Black	间距	0.118" (3.00mm)
包装方式	Tray	端接方式	Press-Fit
触头类型	Male Pin	极化	With
外壳颜色	Black	安装类型	Vertical
连接器类型	Header, Shrouded	接触镀层	Matte Tin
紧固类型	Locking Ramp	安装样式	Through-Hole
排数	Single	触头材料	Brass
壳体材料	Nylon	总长度	3.00 [0.118]
位数	12	接触镀层厚度	30µin (0.76µm)

产品信息

产品特性	Board Guide	产品子类型	Header Assembly
加载位置数	All

环境参数

温度额定值

High
