点击放大查看

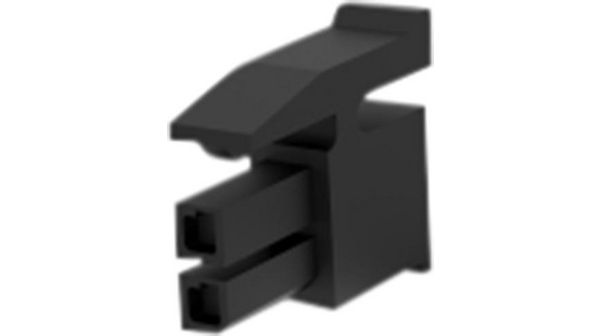

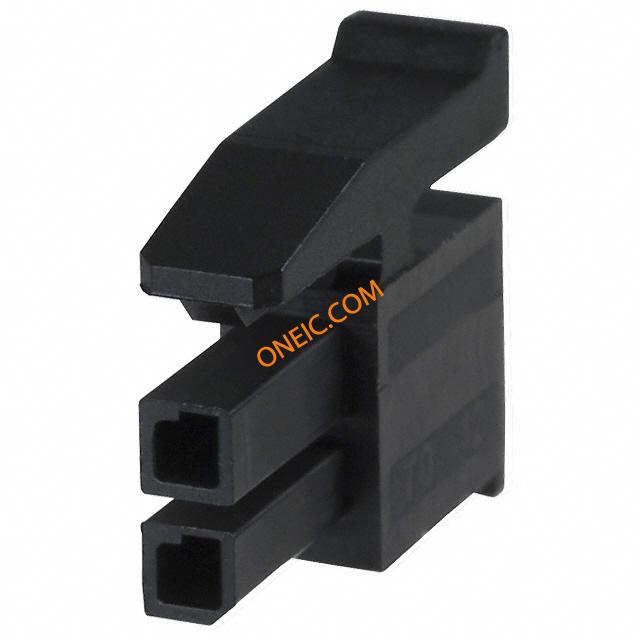

794617-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 2 POS ST 3mm Centerline, 250V, 5 A max. CONN RCPT 3MM 2POS DL MATE-N-L 2 way 2 row receptacle Mate-N-Lok Pin & Socket Connectors RECPT DUAL ROW 2P Conn Housing RCP 2 POS ST Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 2Number of Rows = Dual3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector HOUSING, RECEPTACLE, 2 WAY, NYLON Connector,SoftShell;Nylon;Receptacle;Black;2;Dual;0.118in.;UL94V-0 Plug; wire-board; female; PIN:2; w/o terminals; 3mm; for cable Crimp housing Pitch3 mm Poles 2 MATE-N-LOK Micro, 794617-2, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 2 行 3mm 节距 2 路 直 母 连接器外壳 2POS,MICRO MNL,RCPT HSG |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | :CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 250 V | 最大额定电流 | 5 A |
| 最小供电电压 | 250VAC | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 颜色 | Black | 深度 | 14.04mm |
| 间距 | 3 mm | 宽度 | 11.7mm |
| 高度 | 11.7 mm | 长度 | 4mm |
| 重量 | 0.034 | 材料（通用） | :Nylon |
| 包装方式 | Bulk | 导线线规 | 20 AWG |
| 排间距 | 0.118" (3.00mm) | 触头类型 | Female Socket |
| 柱间距 | 3mm | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 紧固类型 | Latch Lock | 安装样式 | Wire |
| 排数 | 2 | 封装形式 | Receptacle |
| 触头材料 | Phosphor Bronze | 壳体材料 | Nylon |
| 总长度 | 3.00 [0.118] | 包装数量 | 1 |
| 连接器 - 电缆 | plug | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 连接器颜色 | :Black |
| 触点数 | 2 | 接触件端接 | Crimp |
| 位数 | 2 | 第一连接器安装特征 | 2x1 |
产品信息
| SPG | 1 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | RCP |
| 系列 | MATE-N-LOK | CAD图纸 | 3D CAD Model |
| 产品子类型 | Housing | 适配器系列 | Micro MATE-N-LOK |
| 单元数量 | 1 | 适用产品/相关产品 | Centerline Soft Shell Pin & Socket Connector |
环境参数
| 工作温度 | -40C to 105C | ||
文档与媒体
相关型号

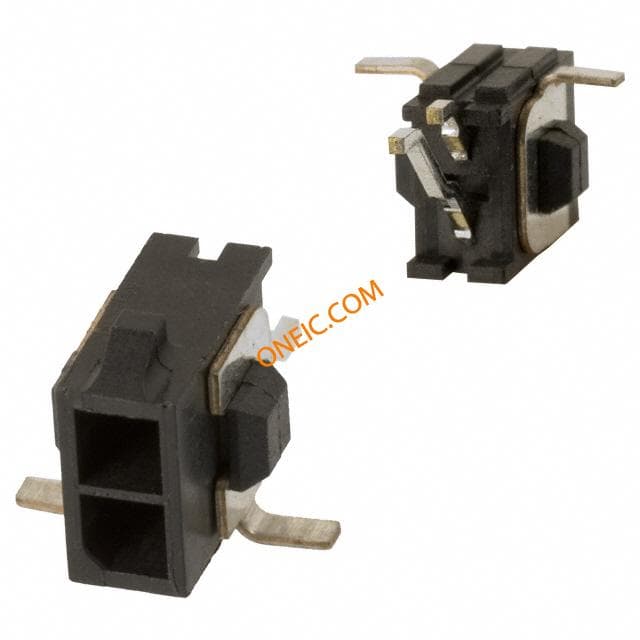

3-794627-2
te connectivity / amp
Conn Power HDR 2 POS 3mm Solder RA SMD 2 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HDR 2POS DUAL R/A TIN SMD Pin & Socket Connectors HDR ASSY 2P TIN R/A SMT 3-794627-2 02P MICRO MNL ASSY,R/A,SMT LF
794637-2
te connectivity / amp
Conn Power HDR 2 POS 3mm Solder ST SMD 2 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 2POS DL 15GOLD SMD Pin & Socket Connectors 2POS MICRO MNL ASSY 3mm Centerline, 250V, 5 A max. Product Highlights:Header AssemblyNumber of Positions = 2Number of Rows = DualVertical Mount AngleMount Style = Surface MountSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
3-794632-2
te connectivity / amp
Conn Power HDR 2 POS 3mm Solder ST Thru-Hole 2 Terminal 1 Port Power to the Board HDR VERT 2 POS 30 AU DUAL 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 2POS DUAL GOLD 02P MICRO MNL ASSY,VRT,HDR,LF 02P MICRO MNL ASSY,VRT,HDR,LF Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

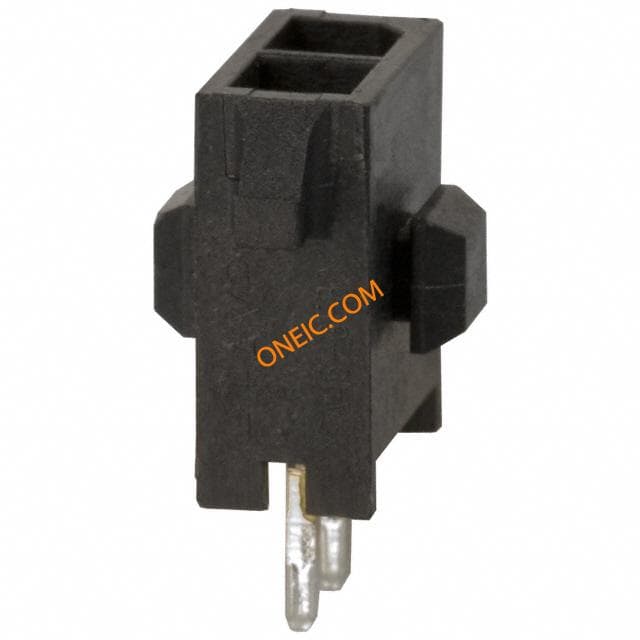

794630-2
te connectivity / amp
Conn Power HDR 2 POS 3mm Solder ST Thru-Hole 2 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 2POS DUAL TIN Power to the Board HDR ASSY 2 POS VERT DUAL TIN Conn Power HDR 2 POS 3mm Solder ST Thru-Hole 2 Terminal 1 Port Product Highlights:ConnectorHeaderPreloadedHeader Gender = PlugContact Gender = PinSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
794681-2
te connectivity / amp
Conn Power HDR 2 POS 3mm Solder ST Thru-Hole 2 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 2POS DL VERT 15GOLD Pin & Socket Connectors 2POS MICRO MNL ASSY,VRT,THRU 2POS MICRO MNL ASSY,VRT,THRU 2POS MICRO MNL ASSY,VRT,THRU Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

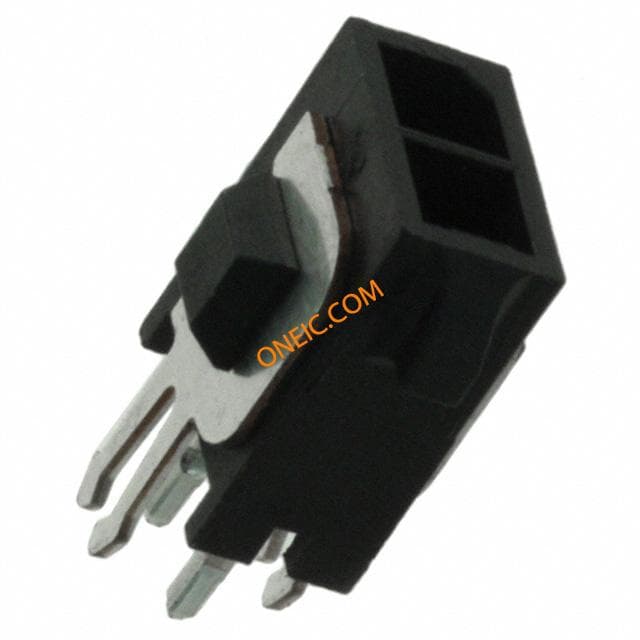

3-794682-2
te connectivity / amp
Conn Wire to Board HDR 2 POS Solder ST Thru-Hole 3mm Centerline, 250V, 5 A max. CONN HEADER 2POS 2ROW VERT T/H Pin & Socket Connectors 2P HDR VERT 3mm T/H 30 AU Conn Power HDR 2 POS Solder ST Thru-Hole 2 Terminal 1 Port 3mm Centerline, 250V, 5 A max. Product Highlights:ConnectorHeaderPreloadedHeader Gender = PlugContact Gender = PinSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector 02P MICRO MNL ASSY,VRT,THRU,LF
794635-2
te connectivity / amp
Conn Power HDR 2 POS 3mm Solder ST SMD 2 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 2POS DUAL 30GOLD SMD Pin & Socket Connectors 2POS MICRO MNL ASSY VRT SMT
794622-2
te connectivity / amp
Conn Power HDR 2 POS 3mm Solder RA SMD 2 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 2POS DL R/A 15AU SMD Pin & Socket Connectors 2POS MICRO MNL ASSY R/A SMT

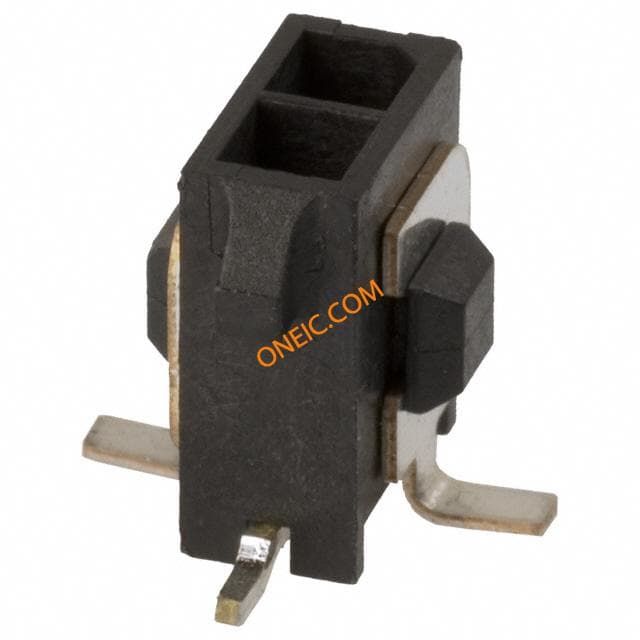

794636-2
te connectivity / amp
Conn Power HDR 2 POS 3mm Solder ST SMD 2 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 2POS DUAL TIN SMD Power to the Board HDR ASSY 2 POS TIN VERT SMT 2POS MICRO MNL ASSY,VRT,SMT 2POS MICRO MNL ASSY,VRT,SMT Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

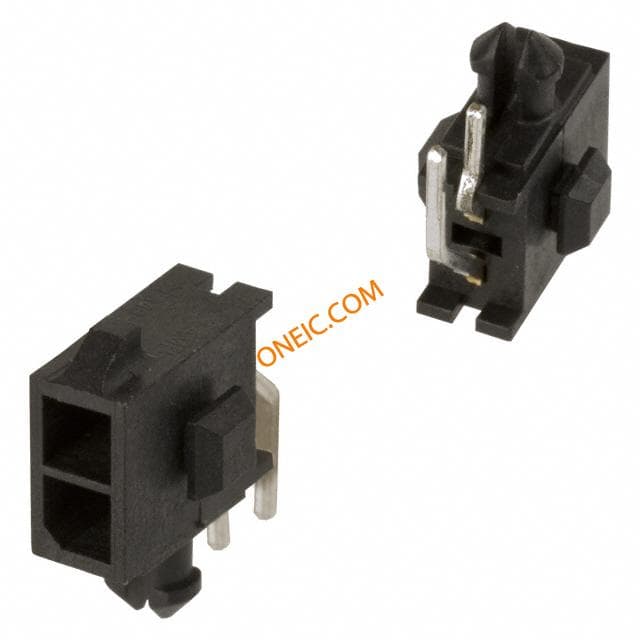

3-794620-2
