3-794618-2

点击放大查看

3-794618-2

制造商
TE Connectivity Ltd.

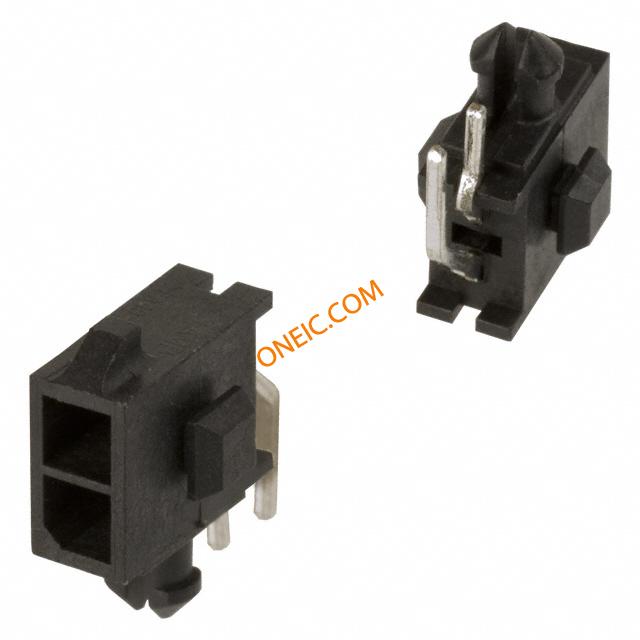

描述Conn Power HDR 2 POS 3mm Solder RA Thru-Hole 2 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 2POS DUAL R/A TIN Pin & Socket Connectors HDR R/A 2 POS TIN DUAL Conn Power HDR 2 POS 3mm Solder RA Thru-Hole 2 Terminal 1 Port Product Highlights:Header AssemblyNumber of Positions = 2Number of Rows = DualRight Angle Mount AngleMount Style = Through-HoleSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector HEADER, 2ROW, 2WAY 02P MICRO MNL ASSY R/A HDR LF
分类
工具与焊接解决方案压接钳、压接机、压力机压接钳
对参数有疑问？问 AI 助手

商业参数

产品类别Pin & Socket Connectors标准包装数量Trays
工厂包装数量533

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
无铅定义Reflow solder capable to 245°C, Reflow solder capable to 260°C认证机构:CSA, UL
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

量程（°/s）:TE - Micro MATE-N-LOK Series额定电压250 V
接触电阻:20mohm击穿电压:1500V
最大额定电流5 A绝缘电阻:1000Mohm
最小供电电压250VAC

机械参数

颜色Black深度11.92 mm
间距3 mm高度8.67 mm
重量0.001材料（通用）:Nylon
包装方式Tray排间距0.118" (3.00mm)
端接方式Solder触头类型Male Pin
引脚间距:3mm极化Without
外壳颜色Black安装类型Through Hole
连接器类型Header, Shrouded接触镀层Matte Tin
紧固类型Locking Ramp安装样式Through-Hole
排数Dual触头材料Brass
壳体材料High Temperature Nylon总长度7 mm
端接样式Solder第一触头极性Pin (Male)
连接器颜色:Black触点数2
接触件端接:Through Hole Right Angle位数2
中心触点材料3.00 [0.118]接触镀层厚度100µin (2.54µm)
第一连接器安装类型:PCB

产品信息

类型Power连接器性别HDR
系列Mate-N-Lok产品特性Board Lock
制造商全称AMP产品子类型Header Assembly
端口数1 Port加载位置数All

环境参数

工作温度-40C to 105C结工作温度105C

文档与媒体

PDF 文档
1650928.pdf

相关型号

794617-2

794617-2

te connectivity / amp

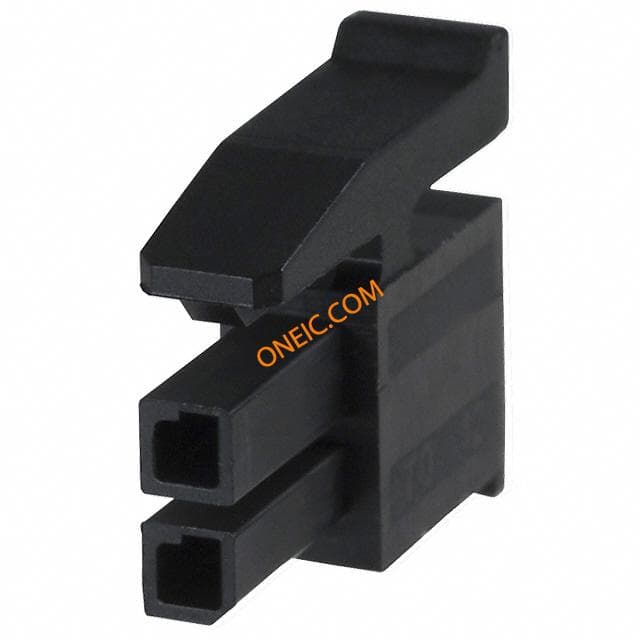

Conn Housing RCP 2 POS ST 3mm Centerline, 250V, 5 A max. CONN RCPT 3MM 2POS DL MATE-N-L 2 way 2 row receptacle Mate-N-Lok Pin & Socket Connectors RECPT DUAL ROW 2P Conn Housing RCP 2 POS ST Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 2Number of Rows = Dual3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector HOUSING, RECEPTACLE, 2 WAY, NYLON Connector,SoftShell;Nylon;Receptacle;Black;2;Dual;0.118in.;UL94V-0 Plug; wire-board; female; PIN:2; w/o terminals; 3mm; for cable Crimp housing Pitch3 mm Poles 2 MATE-N-LOK Micro, 794617-2, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 2 行 3mm 节距 2 路 直 母 连接器外壳 2POS,MICRO MNL,RCPT HSG
