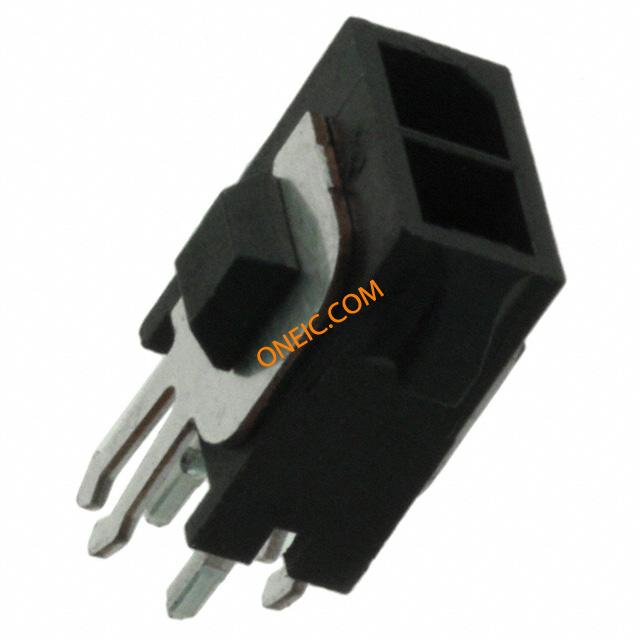

点击放大查看

3-794682-2

制造商	TE Connectivity Ltd.
描述	Conn Wire to Board HDR 2 POS Solder ST Thru-Hole 3mm Centerline, 250V, 5 A max. CONN HEADER 2POS 2ROW VERT T/H Pin & Socket Connectors 2P HDR VERT 3mm T/H 30 AU Conn Power HDR 2 POS Solder ST Thru-Hole 2 Terminal 1 Port 3mm Centerline, 250V, 5 A max. Product Highlights:ConnectorHeaderPreloadedHeader Gender = PlugContact Gender = PinSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector 02P MICRO MNL ASSY,VRT,THRU,LF
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	37946822	标准包装规格	533
产品类别	Pin & Socket Connectors	标准包装数量	Trays
工厂包装数量	533

合规参数

RoHS	Lead free / RoHS Compliant	无铅定义	Reflow solder capable to 245Â°C, Reflow solder capable to 260Â°C
RoHS/ELV合规状态	RoHS compliant, ELV compliant	材料阻燃等级	UL 94V-0

电气参数

额定电压	250 V	接触电阻	20 mohm
最大额定电流	5 A	最小供电电压	250VAC

机械参数

颜色	Black	深度	8.67 mm
间距	0.118" (3.00mm)	高度	9.24 mm
镀层	Tin	包装方式	Tray
排间距	0.118" (3.00mm)	端接方式	Solder
触头类型	Male Pin	极化	Without
外壳颜色	Black	安装类型	Vertical
连接器类型	Header, Shrouded	接触镀层	Matte Tin
紧固类型	Locking Ramp	安装样式	Through-Hole
排数	Dual	触头材料	Brass
壳体材料	High Temperature Nylon	总长度	7 mm
端接样式	Solder	第一触头极性	Pin (Male)
触点数	2	位数	2
中心触点材料	3.00 [0.118]	接触镀层厚度	30µin (0.76µm)

产品信息

备注	Retention feature located on end contacts only.	类型	Wire to Board
连接器性别	HDR	系列	Micro Mate-N-Lok
产品特性	Board Lock	制造商全称	AMP
产品子类型	Header Assembly	端口数	1 Port
加载位置数	All

环境参数

工作温度

-40C to 105C

结工作温度

105C
