1-794617-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 16 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RCPT 3MM 16POS DL MATE-N-L 16 way 2 row receptacle Mate-N-Lok Pin & Socket Connectors RECPT DUAL ROW 16P Conn Housing RCP 16 POS 3mm ST Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 16Number of Rows = Dual3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector HOUSING, RCPT, DUAL ROW, 16 WAY, NYLON Connector,SoftShell;Nylon;Receptacle;Black;16;Dual;0.118in.;UL94V-0 Crimp housing Pitch3 mm Poles 2 x 16 MATE-N-LOK Micro, 1-794617-6, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 2 行 3mm 节距 16 路 直 母 连接器外壳 16POS,MICRO MNL,RCPT HSG |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | :CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 250 V | 接触电阻 | :20mohm |
| 击穿电压 | :1500V | 最大额定电流 | 5 A |
| 绝缘电阻 | :1000Mohm | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Black | 深度 | 14.04mm |
| 间距 | 3 mm | 宽度 | 11.7mm |
| 高度 | 11.7 mm | 长度 | 25mm |
| 重量 | 0.002 | 材料（通用） | :Nylon |
| 包装方式 | Bulk | 导线线规 | 20 AWG |
| 排间距 | 0.118" (3.00mm) | 触头类型 | Female Socket |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Receptacle | 紧固类型 | Latch Lock |
| 安装样式 | Wire | 排数 | 2 |
| 封装形式 | Receptacle | 触头材料 | Phosphor Bronze |
| 壳体材料 | Nylon | 总长度 | 3.00 [0.118] |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 连接器颜色 | :Black | 触点数 | 16 |
| 接触件端接 | Crimp | 位数 | 16 |
| 第一连接器安装类型 | :Socket | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | MATE-N-LOK |
| CAD图纸 | 3D CAD Model | 产品子类型 | Housing |
| 适用产品/相关产品 | Centerline Soft Shell Pin & Socket Connector | ||
环境参数
| 工作温度 | -40C to 105C | ||
文档与媒体
相关型号
1-794635-6
TE Connectivity / AMP
Pin & Socket Connectors 16POS MICRO MNL ASSY VRT,SMT 3mm Centerline, 250V, 5 A max. CONN HEADER 16POS DL 30GOLD SMD 16POS MICRO MNL ASSY,VRT,SMT 16POS MICRO MNL ASSY,VRT,SMT Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
4-794630-6
te connectivity / amp
Conn Power HDR 16 POS 3mm Solder ST Thru-Hole 16 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 16POS DUAL TIN TE Connectivity MATE-N-LOK Series 3mm Pitch 16 Way Straight Heavy Duty Power Connector, Solder Termination, 5A Pin & Socket Connectors HDR VERT 16 POS TIN DUAL Conn Power HDR 16 POS 3mm Solder ST Thru-Hole 16 Terminal 1 Port Product Highlights:HeaderConnector Type = Header - PinThrough Hole Contact Termination TypeNumber of Positions = 16Number of Rows = 2Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector HEADER, 2ROW, 16WAY 16WD/ROWPINHDRVERT Pin header Pitch3 mm Poles 16 Contact DesignMale MATE-N-LOK, 4-794630-6, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 3mm节距 16路 直 PCB 针座, 焊接端接, 5A , 通孔 16P MICRO MNL ASSY,VRT,HDR,LF

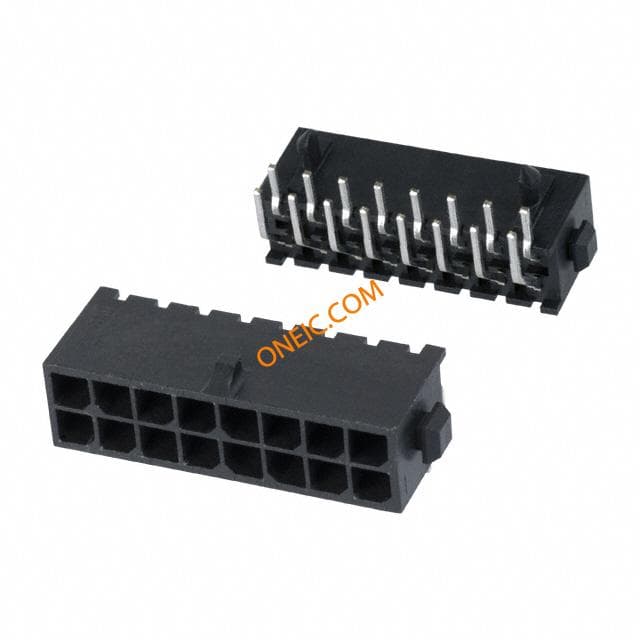

4-794618-6
te connectivity / amp
Conn Power HDR 16 POS 3mm Solder RA Thru-Hole 16 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 16POS DUAL R/A TIN TE Connectivity MATE-N-LOK Series 3mm Pitch 16 Way Right Angle Heavy Duty Power Connector, Solder Termination, 5A Pin & Socket Connectors HDR ASSY 16P R/A TIN Conn Power HDR 16 POS 3mm Solder RA Thru-Hole 16 Terminal 1 Port Product Highlights:ConnectorConnector Type = Header - PinThrough Hole Contact Termination Type16 PositionsNumber of Rows = 2Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector HEADER, RIGHT ANGLE, DUAL ROW, 16 WAY 16way2rowr/aheaderMate-N-Lok Pin header Pitch3 mm Poles 16 Contact DesignMale MATE-N-LOK, 4-794618-6, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 3mm节距 16路 直角 PCB 针座, 焊接端接, 5A , 通孔 16P MICRO MNL ASSY R/A HDR LF

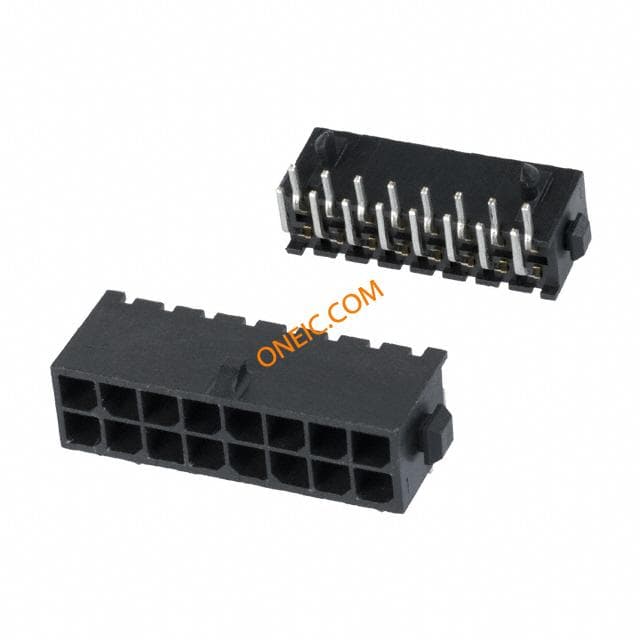

4-794620-6
