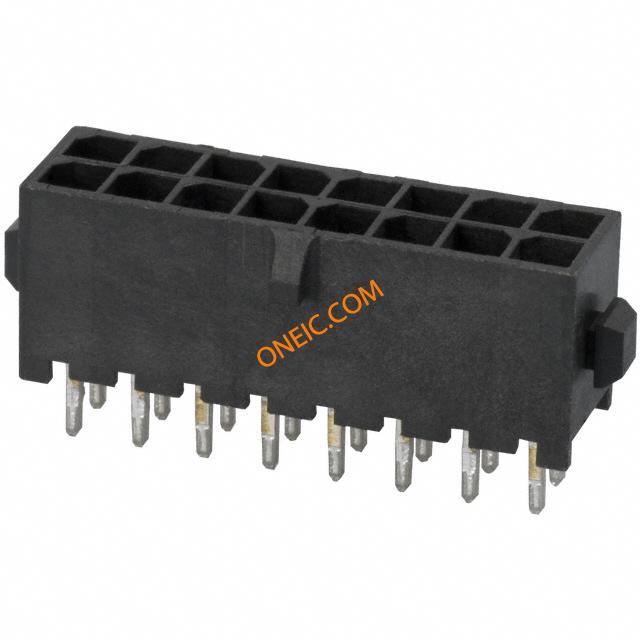

1-794630-6

制造商	TE Connectivity Ltd.
描述	Conn Power HDR 16 POS 3mm Solder ST Thru-Hole 16 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 16POS DUAL TIN Pin & Socket Connectors 16POS MICRO MNL ASSY Conn Power HDR 16 POS 3mm Solder ST Thru-Hole 16 Terminal 1 Port Product Highlights:HeaderConnector Type = Header - PinThrough Hole Contact Termination TypeNumber of Positions = 16Number of Rows = 2Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
分类	工具与焊接解决方案压接钳、压接机、压力机压接钳

对参数有疑问？问 AI 助手

商业参数

其他名称	A30409	产品类别	Pin & Socket Connectors
标准包装数量	Trays	工厂包装数量	1

合规参数

RoHS	Contains lead / RoHS non-compliant	无铅定义	Not suitable for lead free processing
RoHS/ELV合规状态	Not ELV/RoHS compliant	材料阻燃等级	UL 94V-0

电气参数

额定电压

250 V

最大额定电流

5 A

机械参数

颜色	Black	间距	0.118" (3.00mm)
包装方式	Tray	排间距	0.118" (3.00mm)
端接方式	Solder	触头类型	Male Pin
极化	Without	外壳颜色	Black
安装类型	Vertical	连接器类型	Header, Shrouded
接触镀层	Tin-Lead	紧固类型	Locking Ramp
安装样式	Through-Hole	排数	Dual
触头材料	Brass	壳体材料	High Temperature Nylon
触点数	16	位数	16
中心触点材料	3.00 [0.118]	接触镀层厚度	100µin (2.54µm)

产品信息

备注	Retention feature located on end contacts only.	系列	Mate-N-Lok
产品子类型	Header Assembly	加载位置数	All
