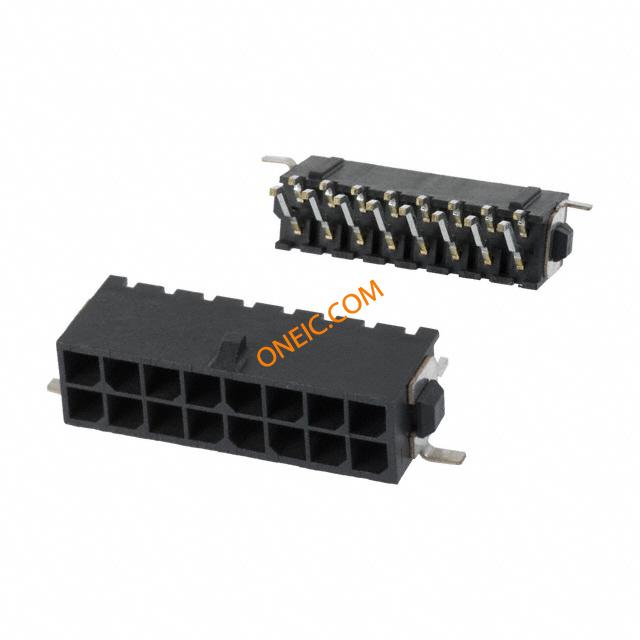

1-794627-6

制造商	TE Connectivity Ltd.
描述	Conn Power HDR 16 POS 3mm Solder RA SMD 16 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HDR 16POS DUAL R/A TIN SMD 3mm Centerline, 250V, 5 A max. Product Highlights:ConnectorConnector Type = Header - PinSurface Mount Contact Termination Type16 PositionsNumber of Rows = 2Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
分类	工具与焊接解决方案压接钳、压接机、压力机压接钳

对参数有疑问？问 AI 助手

商业参数

其他名称	A30481TR	标准包装规格	150
标准包装数量	Tape & Reel

合规参数

RoHS	Contains lead / RoHS non-compliant	无铅定义	Not suitable for lead free processing
RoHS/ELV合规状态	Not ELV/RoHS compliant	材料阻燃等级	UL 94V-0

机械参数

颜色	Black	间距	0.118" (3.00mm)
镀层	Tin-Lead	包装方式	Tape & Reel (TR)
排间距	0.118" (3.00mm)	端接方式	Solder
触头类型	Male Pin	极化	Without
外壳颜色	Black	安装类型	Right Angle
连接器类型	Header, Shrouded	接触镀层	Tin-Lead
紧固类型	Locking Ramp	安装样式	Surface Mount
排数	Dual	触头材料	Brass
壳体材料	High Temperature Nylon	框架材料	Phosphor Bronze
位数	16	中心触点材料	3.00 [0.118]
接触镀层厚度	100µin (2.54µm)

产品信息

产品子类型

Header Assembly

加载位置数

All
