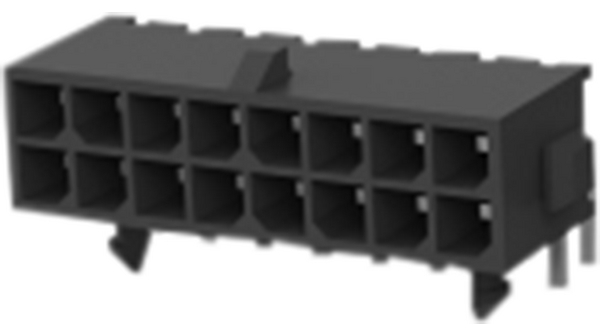

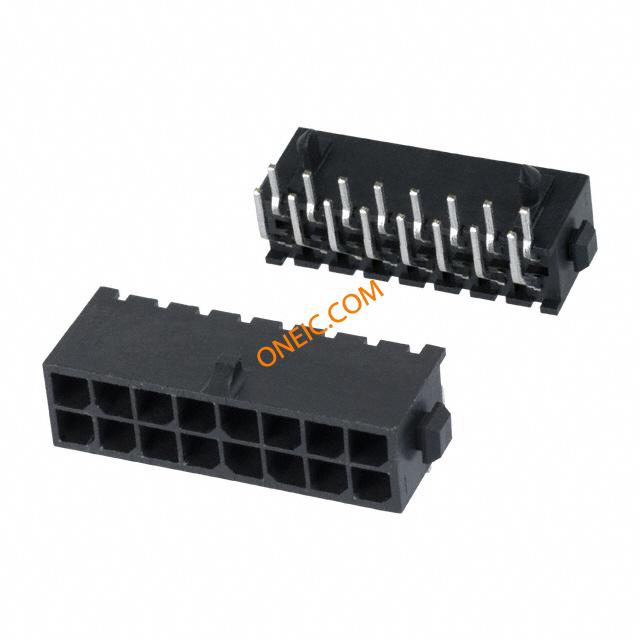

4-794618-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 16 POS 3mm Solder RA Thru-Hole 16 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 16POS DUAL R/A TIN TE Connectivity MATE-N-LOK Series 3mm Pitch 16 Way Right Angle Heavy Duty Power Connector, Solder Termination, 5A Pin & Socket Connectors HDR ASSY 16P R/A TIN Conn Power HDR 16 POS 3mm Solder RA Thru-Hole 16 Terminal 1 Port Product Highlights:ConnectorConnector Type = Header - PinThrough Hole Contact Termination Type16 PositionsNumber of Rows = 2Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector HEADER, RIGHT ANGLE, DUAL ROW, 16 WAY 16way2rowr/aheaderMate-N-Lok Pin header Pitch3 mm Poles 16 Contact DesignMale MATE-N-LOK, 4-794618-6, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 3mm节距 16路 直角 PCB 针座, 焊接端接, 5A , 通孔 16P MICRO MNL ASSY R/A HDR LF |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Reflow solder capable to 245°C, Reflow solder capable to 260°C | 认证机构 | :CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 量程（°/s） | :TE - Micro MATE-N-LOK Series | 额定电压 | 250 V ac |
| 接触电阻 | :20mohm | 击穿电压 | :1500V |
| 最大额定电流 | 5A | 绝缘电阻 | :1000Mohm |
机械参数
| 颜色 | Black | 间距 | 3 mm |
| 重量 | 0.002 | 材料（通用） | :Nylon |
| 包装方式 | Tray | 排间距 | 0.118" (3.00mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 引脚间距 | :3mm | 极化 | Without |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Matte Tin |
| 紧固类型 | Locking Ramp | 安装样式 | Through-Hole |
| 排数 | Dual | 触头材料 | Brass |
| 壳体材料 | High Temperature Nylon | 第一触头极性 | Pin (Male) |
| 连接器颜色 | :Black | 触点数 | 16 |
| 接触件端接 | :Through Hole Right Angle | 位数 | 16 |
| 中心触点材料 | 3.00 [0.118] | 接触镀层厚度 | 100µin (2.54µm) |
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 系列 | MATE-N-LOK | 产品特性 | Board Lock |
| CAD图纸 | 3D CAD Model | 制造商全称 | AMP |
| 产品子类型 | Header Assembly | 加载位置数 | All |
环境参数
| 工作温度 | :+105°C | ||
