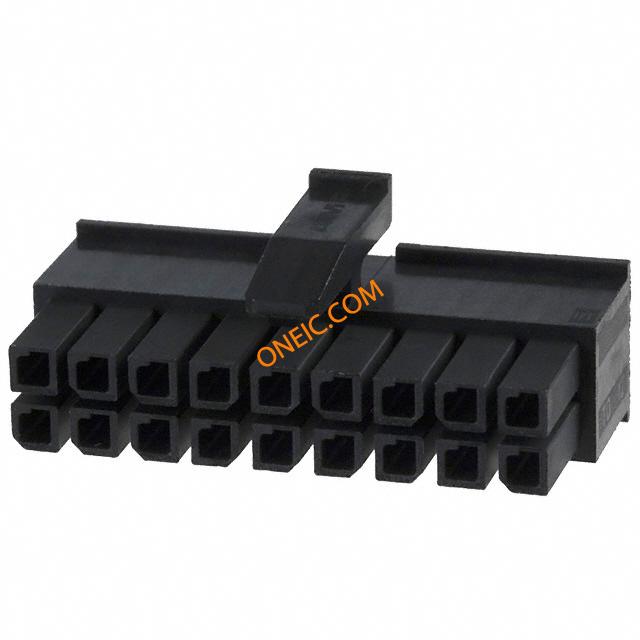

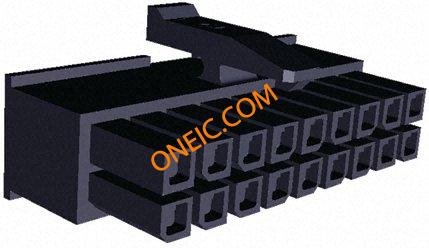

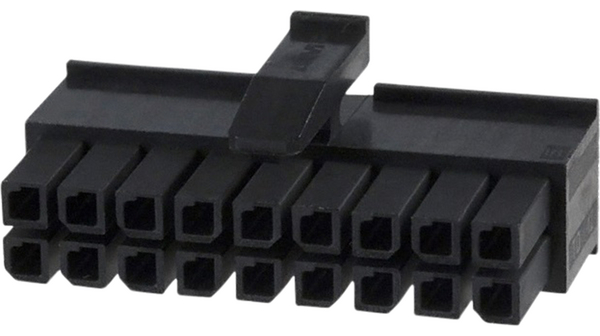

1-794617-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 18 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RCPT 3MM 18POS DL MATE-N-L Housing FH 18 way 2 row Rec M Mate-n-Lok Pin & Socket Connectors RECPT DUAL ROW 18P Conn Housing RCP 18 POS 3mm ST Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 18Number of Rows = Dual3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector PIN & SOCKET CONNECTOR HOUSING Connector,SoftShell;Nylon;Receptacle;Black;18;Dual;0.118in.;UL94V-0 Crimp housing Pitch3 mm Poles 2 x 18 MATE-N-LOK Micro, 1-794617-8, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 2 行 3mm 节距 18 路 直 母 电缆安装 连接器外壳 18POS,MICRO MNL,RCPT HSG |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 5 A |
| 最小供电电压 | 250VAC | ||
机械参数
| 颜色 | Black | 深度 | 11.7mm |
| 间距 | 3 mm | 宽度 | 8.26mm |
| 高度 | 11.7 mm | 长度 | 28mm |
| 重量 | 0.00159 | 包装方式 | Bulk |
| 导线线规 | 20 AWG | 排间距 | 0.118" (3.00mm) |
| 触头类型 | Female Socket | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 紧固类型 | Latch Lock | 安装样式 | Wire |
| 排数 | 2 | 封装形式 | Receptacle |
| 触头材料 | Phosphor Bronze | 壳体材料 | Nylon |
| 总长度 | 3.00 [0.118] | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 连接器颜色 | :Black |
| 触点数 | 18 | 接触件端接 | Crimp |
| 位数 | 18 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | Mate-N-Lok |
| 产品子类型 | Housing | 适用产品/相关产品 | PCB Connector |
环境参数
| 工作温度 | -40C to 105C | ||
文档与媒体
相关型号
1-794618-8
te connectivity / amp
Conn Power HDR 18 POS 3mm Solder RA Thru-Hole 18 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 18POS DUAL R/A TIN Pin & Socket Connectors HDR R/A 18 POS TIN DUAL 3mm Centerline, 250V, 5 A max. Product Highlights:ConnectorWith ContactsHousing Gender = Header - PinContact Gender = PinThrough Hole Contact Termination TypeSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
1-794637-8
te connectivity / amp
Conn Power HDR 18 POS 3mm Solder ST SMD 18 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 18POS DL 15GOLD SMD Pin & Socket Connectors 18POS MICRO MNL ASSY VRT,SMT Conn Power HDR 18 POS 3mm Solder ST SMD 18 Terminal 1 Port Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
1-794627-8
te connectivity / amp
Conn Power HDR 18 POS 3mm Solder RA SMD 18 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HDR 18POS DUAL R/A TIN SMD Pin & Socket Connectors HDR ASSY 18P TIN R/A SMT
4-794632-8
te connectivity / amp
Conn Power HDR 18 POS 3mm Solder ST Thru-Hole 18 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 18POS DUAL GOLD Pin & Socket Connectors 18P MICRO MNL ASSY VRT,HDR,LF 18P MICRO MNL ASSY,VRT,HDR,LF
1-794626-8
te connectivity / amp
Conn Power HDR 18 POS 3mm Solder RA SMD 18 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADR 18POS DL R/A 30AU SMD Pin & Socket Connectors 18POS MICRO MNL ASSY R/A,SMT 3mm Centerline, 250V, 5 A max. Product Highlights:Header AssemblyNumber of Positions = 18Number of Rows = DualRight Angle Mount AngleMount Style = Surface MountSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
4-794618-8
te connectivity / amp

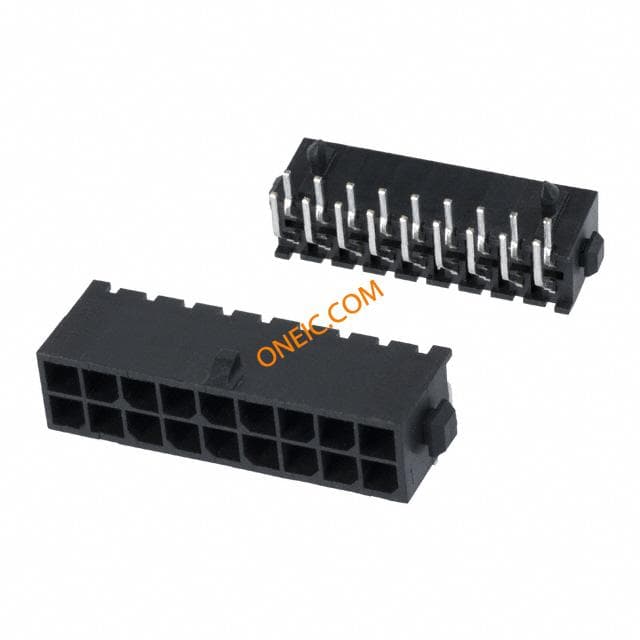

Conn Power HDR 18 POS 3mm Solder RA Thru-Hole 18 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 18POS DUAL R/A TIN Pin & Socket Connectors HDR ASSY 18P R/A TIN 18P MICRO MNL ASSY R/A HDR LF
1-794615-8
te connectivity / amp
Conn Housing PL 18 POS 3mm Crimp ST 3mm Centerline, 250V, 5 A max. CONN PLUG 3MM 18POS DL M-N-L PNL Pin & Socket Connectors PLUG DUAL PNL MNT 18 Conn Housing PL 18 POS 3mm Crimp ST Product Highlights:HousingHousing Type = PlugNumber of Positions = 18Number of Rows = DualMount Type = Panel MountSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector Connector,SoftShell;Nylon;Plug;Black;18;Dual;0.118in.;UL94V-0 PANEL MT DBL ROW HSG 18 POS
4-794629-8
te connectivity / amp

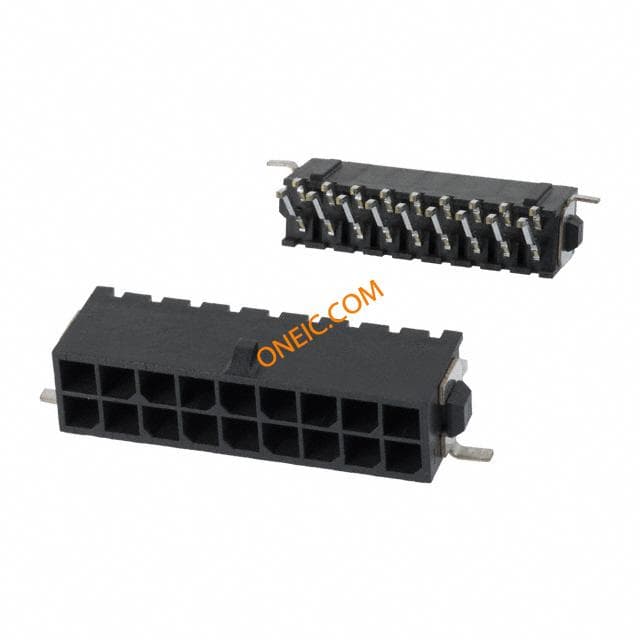

Conn Power HDR 18 POS 3mm Solder RA SMD 18 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HDR 18POS DUAL R/A GOLD SMD 18P MICRO MNL ASSY,R/A,SMT,LF 18P MICRO MNL ASSY,R/A,SMT,LF Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
