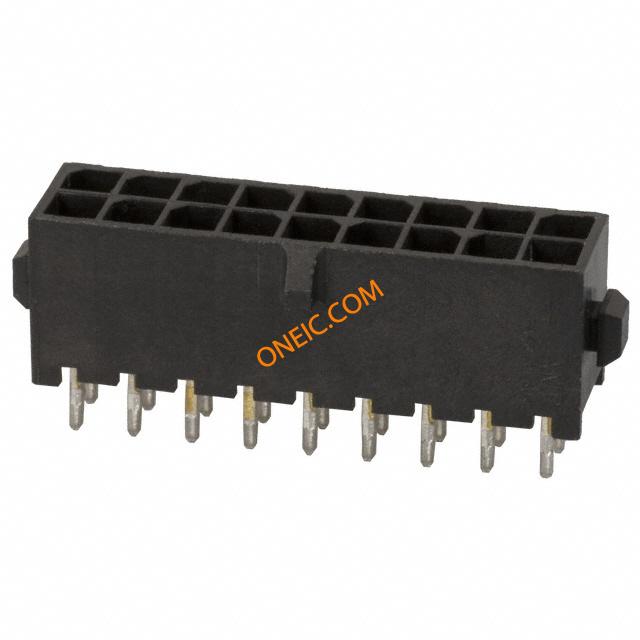

4-794632-8

点击放大查看

4-794632-8

制造商
TE Connectivity Ltd.
描述Conn Power HDR 18 POS 3mm Solder ST Thru-Hole 18 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 18POS DUAL GOLD Pin & Socket Connectors 18P MICRO MNL ASSY VRT,HDR,LF 18P MICRO MNL ASSY,VRT,HDR,LF
分类
工具与焊接解决方案压接钳、压接机、压力机压接钳
对参数有疑问？问 AI 助手

商业参数

产品类别Pin & Socket Connectors标准包装数量Bulk

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
零件状态E28476无铅定义Reflow solder capable to 245°C, Reflow solder capable to 260°C
CSA档案号LR7189标准编号CSA, UL
CSA分类已认证RoHS/ELV合规状态RoHS compliant, ELV compliant
UL阻燃等级UL 94V-0认证机构标志是
材料阻燃等级UL 94V-0

电气参数

供电电压250最大额定电流5

机械参数

颜色Black间距3 mm
宽度9.24长度31
密封型Not Sealed包装方式Tray
壳体颜色黑色排间距0.118" (3.00mm)
端接方式Solder触头类型Male Pin
极化Without外壳颜色Black
安装类型Through Hole连接器类型Header, Shrouded
接触镀层Matte Tin紧固类型Locking Ramp
安装样式Through-Hole引脚数18
排数Dual高度（英寸）8.67
触头材料Brass壳体材料High Temperature Nylon
安装特性保持凸块包装数量117
面板安装类型通孔 - 焊接端接样式插针
绝缘直径1.52位数18
外壳尺寸-插件插头兼容外壳尺寸（如TM-700等）插头护套
安装孔直径带有中心触点材料3.00 [0.118]
接触件表面处理 - 配合哑光端子柱长度3.43 mm [ .135 in ]
接触镀层厚度30µin (0.76µm)后壳材料及镀层磷青铜

产品信息

备注Retention feature located on end contacts only.类型Power
连接器性别HDR产品子类型Header Assembly
应用细节Power加载位置数All

环境参数

测试温度标准件 - 非灼热丝工作温度-40 – 105 °C [ -40 – 221 °F ]
封装热阻1.6 mm [ .063 in ]

文档与媒体

在线文档
4-794632-8?RQPN=4-794632-8
