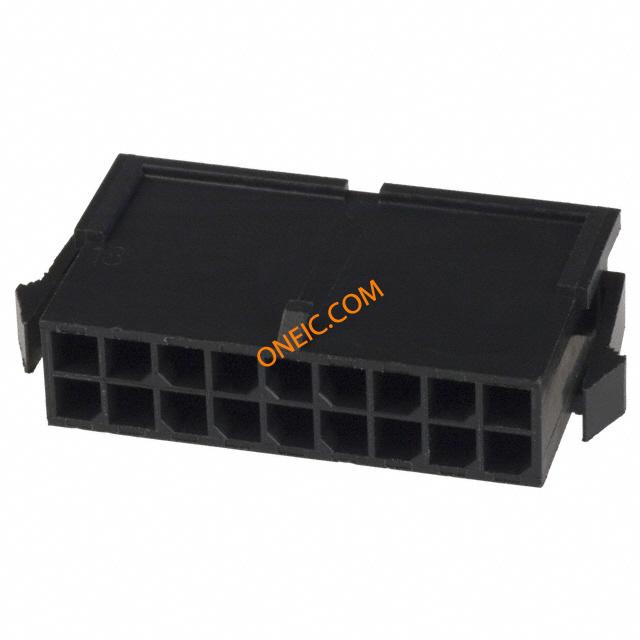

1-794615-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 18 POS 3mm Crimp ST 3mm Centerline, 250V, 5 A max. CONN PLUG 3MM 18POS DL M-N-L PNL Pin & Socket Connectors PLUG DUAL PNL MNT 18 Conn Housing PL 18 POS 3mm Crimp ST Product Highlights:HousingHousing Type = PlugNumber of Positions = 18Number of Rows = DualMount Type = Panel MountSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector Connector,SoftShell;Nylon;Plug;Black;18;Dual;0.118in.;UL94V-0 PANEL MT DBL ROW HSG 18 POS |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | 无铅定义 | Not relevant for lead free process |
| CSA档案号 | LR7189 | 标准编号 | CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-0 |
| 认证机构标志 | 已认证 | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 250 V | 供电电压 | 250 |
| 最大额定电流 | 5 A | ||
机械参数
| 颜色 | Black | 间距 | 0.118" (3.00mm) |
| 宽度 | 7.11 | 长度 | 16.89 |
| 包装方式 | Bulk | 壳体颜色 | 黑色 |
| 排间距 | 0.118" (3.00mm) | 本体尺寸 | 1.57 – 2.3 mm [ .062 – .091 in ] |
| 触头类型 | Male Pin | 外壳颜色 | Black |
| 安装类型 | Panel Mount | 连接器类型 | Plug |
| 接触镀层 | Without | 紧固类型 | Locking Ramp |
| 安装样式 | Panel | 排数 | Dual |
| 封装形式 | Plug | 外壳材料（壳体） | 插头 |
| 高度（英寸） | 6.86 | 触头材料 | Brass |
| 壳体材料 | Nylon | 总长度 | 3.00 [0.118] |
| 包装数量 | 400 | 面板安装类型 | 带有 |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 触点数 | 18 | 接触件端接 | Crimp |
| 绝缘直径 | 1.52 mm [ .6 in ] | 位数 | 18 |
| 安装孔直径 | 带有 | 静电放电屏蔽 | 不带 |
产品信息
| 备注 | Contacts Not Provided | 系列 | Mate-N-Lok |
| 产品子类型 | Housing | ||
环境参数
| 工作范围 | 不密封 | 测试温度 | 标准件 - 非灼热丝 |
| 工作温度 | -40 – 105 °C [ -40 – 221 °F ] | ||
