794608-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount T/R 3mm Centerline, 250V, 5 A max. CONN PIN 20-24AWG GOLD CRIMP Pin & Socket Connectors PIN CONTACT 24-20 Contact PIN Crimp ST Cable Mount T/R Product Highlights:ContactContact Type = PlugWire Range = 0.20-0.60² [24-20] mm [AWG]Gold (30) Contact Mating Area Plating MaterialStripSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector PIN CONT 20-24 30 GOLD STRIP |
| 分类 |
商业参数
| 其他名称 | A30308TR | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 10000 |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | Not ELV/RoHS compliant | ||
电气参数
| 供电电压 | 250 | 最大额定电流 | 5 |
机械参数
| 间距 | 3 mm | 镀层 | 锡铅 |
| 包装方式 | Tape & Reel (TR) | 电缆类型 | 分离式导线 |
| 导线线规 | 20-24 AWG | 端接方式 | Crimp |
| 触头类型 | Power | 插针或插孔 | Pin |
| 连接器类型 | Connector Power | 接触镀层 | Tin |
| 安装样式 | Panel | 插入件材料 | 黄铜 |
| 触头材料 | Phosphor Bronze | 壳体材料 | 带有 |
| 框架材料 | 镍 | 包装数量 | Strip |
| 端接样式 | 插针 | 触点数 | 6 |
| 接触件端接 | Crimp | 绝缘直径 | .89 – 1.52 mm [ .035 – .06 in ] |
| 触点镀层 | 亮光 | 接触件表面处理 - 配合 | 锡铅 |
| 接触镀层厚度 | 30µin (0.76µm) | 线规或范围 - mm² | 0.20-0.60² [24-20] |
| 护套（绝缘）厚度 | 1.27 µm [ 50 µin ] | ||
产品信息
| 类型 | Stamped | 连接器性别 | PIN |
| 产品子类型 | Contact | 其他规格 | 否 |
| 应用细节 | Power | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -40 – 105 °C [ -40 – 221 °F ] |
文档与媒体
相关型号
794616-6
te connectivity / amp

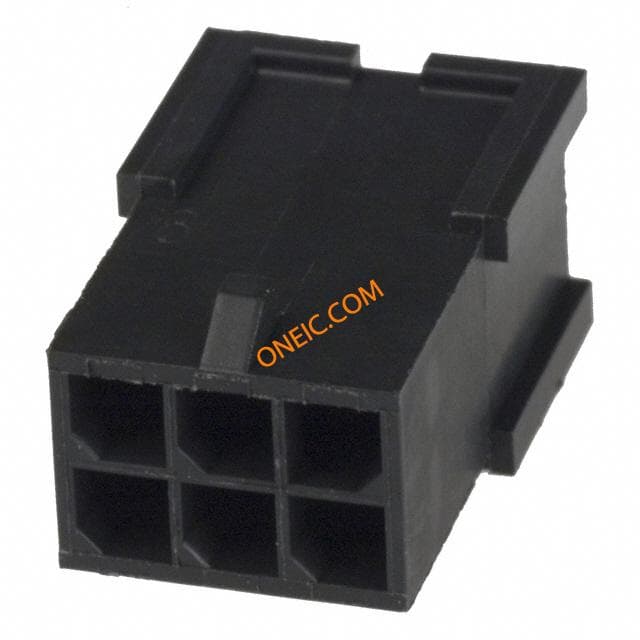

Conn Housing PL 6 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN PLUG 3MM 6POS DL MATE-N-LOK Housing,plug,micro Mate-n-lok,2 row,6Way Pin & Socket Connectors PLUG DUAL F.H. 6P free hanging Conn Housing PL 6 POS 3mm ST Product Highlights:HousingHousing Type = PlugNumber of Positions = 6Number of Rows = DualMount Type = Free HangingSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector CONNECTOR HOUSING, PLUG, 6 WAY, NYLON PLUG & SOCKET HOUSING, PLUG, NYLON SoftShellHousing;Nylon;Black;0.118in.;FreeHanging;Plug;6;UL94V-0 Crimp housing Pitch3 mm Poles 6 MATE-N-LOK Micro, 794616-6, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 2 行 3mm 节距 6 路 直 公 压接连接器外壳 FREE HANG DBL ROW HSG 6 POS
1445048-3
te connectivity / amp
Conn Housing PL 3 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN PLUG 3MM 3POS MATE-N-LOK 3 way 1 row panel plug Mate-N-Lok Pin & Socket Connectors PLUG SNGL PNL MNT 3P Conn Housing PL 3 POS 3mm ST Product Highlights:HousingHousing Type = PlugHousing Accepts Contact Type = Pin3 PositionsNumber of Rows = 1Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector No. of C Connector,SoftShell;Nylon;Plug;Black;3;Single;0.118in.;UL94V-0 Crimp housing Pitch3 mm Poles 1 x 3 MATE-N-LOK Micro, 1445048-3, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 3mm 节距 3 路 直 公 压接连接器外壳 PANEL MT SNGL ROW HSG 3 POS
2-794616-0
te connectivity / amp

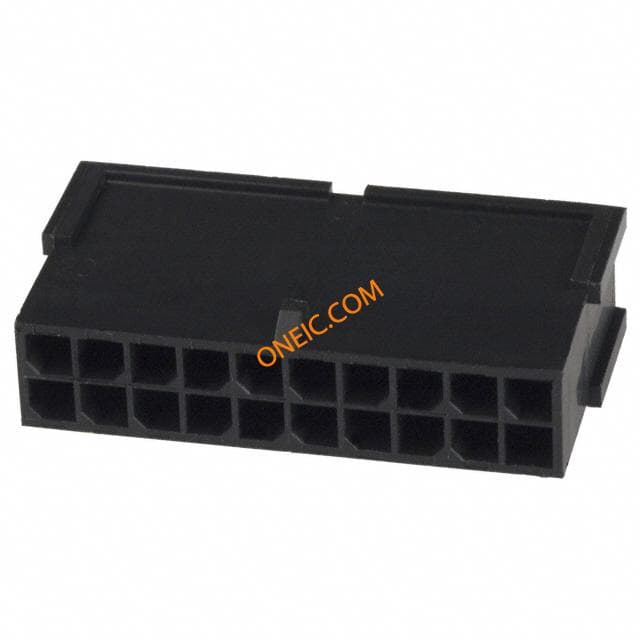

Conn Housing PL 20 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN PLUG 3MM 20POS DL MATE-N-L Micro MATE-N-LOK Plug housing 10+10P Pin & Socket Connectors PLUG DUAL F.H. 20P free hanging Conn Housing PL 20 POS 3mm ST Product Highlights:HousingHousing Type = PlugAccepts Contact Type = PinNumber of Positions = 20Number of Rows = 2Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector SoftShellHousing;Nylon;Black;0.118in.;FreeHanging;Plug;20;UL94V-0 FREE HANG DBL ROW HSG 20 POS
1445049-8
te connectivity / amp
Conn Housing PL 8 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN PLUG 3MM 8POS MATE-N-LOK Pin & Socket Connectors PLUG SINGLE F.H. 8P free hanging Conn Housing PL 8 POS 3mm ST Product Highlights:ConnectorHousingNot PreloadedHousing Gender = PlugContact Gender = PinSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector FREE HANG SNGL ROW HSG 8 POS
2-794615-2
te connectivity / amp
Conn Housing PL 22 POS 3mm Crimp ST 3mm Centerline, 250V, 5 A max. CONN PLUG 3MM 22POS DL M-N-L PNL Pin & Socket Connectors PLUG DUAL PNL MNT 22 Conn Housing PL 22 POS 3mm Crimp ST Product Highlights:HousingHousing Type = PlugNumber of Positions = 22Number of Rows = DualMount Type = Panel MountSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector PANEL MT DBL ROW HSG 22 POS
1-794615-0
te connectivity / amp
Conn Housing PL 10 POS 3mm Crimp ST 3mm Centerline, 250V, 5 A max. CONN PLUG 3MM 10POS DL M-N-L PNL 10 way 2 row panel plug Mate-N-Lok Pin & Socket Connectors PLUG DUAL PNL MNT 10 Conn Housing PL 10 POS 3mm Crimp ST Product Highlights:HousingHousing Type = PlugNumber of Positions = 10Number of Rows = DualMount Type = Panel MountSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector PLUG, PANEL, DUAL ROW, 10WAY Connector,SoftShell;Nylon;Plug;Black;10;Dual;0.118in.;UL94V-0 Crimp housing Pitch3 mm Poles 2 x 10 MATE-N-LOK Micro, 1-794615-0, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 2 行 3mm 节距 10 路 直 公 压接连接器外壳 PANEL MT DBL ROW HSG 10 POS
1445048-6
te connectivity / amp
Conn Housing PL 6 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN PLUG 3MM 6POS MATE-N-LOK 6 way 1 row panel plug Mate-N-Lok Pin & Socket Connectors PLUG SNGL PNL MNT 6P Conn Housing PL 6 POS 3mm ST Product Highlights:HousingHousing Type = PlugNumber of Positions = 6Number of Rows = SingleMount Type = Panel MountSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector Connector,SoftShell;Nylon;Plug;Black;6;Single;0.118in.;UL94V-0 Crimp housing Pitch3 mm Poles 1 x 6 MATE-N-LOK Micro, 1445048-6, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 3mm 节距 6 路 直 公 压接连接器外壳 PANEL MT SNGL ROW HSG 6 POS
1-794615-4
te connectivity / amp
Conn Housing PL 14 POS 3mm Crimp ST 3mm Centerline, 250V, 5 A max. CONN PLUG 3MM 14POS DL M-N-L PNL Pin & Socket Connectors PLUG DUAL PNL MNT 14 1-794615-4 Conn Housing PL 14 POS 3mm Crimp ST Product Highlights:HousingHousing Type = PlugAccepts Contact Type = PinNumber of Positions = 14Number of Rows = 2Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector Connector,SoftShell;Nylon;Plug;Black;14;Dual;0.118in.;UL94V-0 PANEL MT DBL ROW HSG 14 POS
1445048-8
te connectivity / amp
Conn Housing PL 8 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN PLUG 3MM 8POS MATE-N-LOK Pin & Socket Connectors PLUG SNGL PNL MNT 8P Conn Housing PL 8 POS 3mm ST Product Highlights:ConnectorHousingNot PreloadedHousing Gender = PlugContact Gender = PinSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector PANEL MT SNGL ROW HSG 8 POS
1445048-5
te connectivity / amp
Conn Housing PL 5 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN PLUG 3MM 5POS MATE-N-LOK 5 way 1 row panel plug Mate-N-Lok Pin & Socket Connectors PLUG SNGL PNL MNT 5P Conn Housing PL 5 POS 3mm ST Product Highlights:HousingHousing Type = PlugHousing Accepts Contact Type = Pin5 PositionsNumber of Rows = 1Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector PLUG & SOCKET HOUSING, PLUG, NYLON 5WS/ROWPNLMNTHOUSING TE Connectivity Micro MATE-N-LOK 系列 3mm 节距 5 路 直 公 压接连接器外壳 PANEL MT SNGL ROW HSG 5 POS
1445049-6
te connectivity / amp
Conn Housing PL 6 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN PLUG 3MM 6POS MATE-N-LOK 6 way 1 row cable plug Mate-N-Lok Pin & Socket Connectors PLUG SINGLE F.H. 6P free hanging Conn Housing PL 6 POS 3mm ST Product Highlights:HousingHousing Type = PlugNumber of Positions = 6Number of Rows = SingleMount Type = Free HangingSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector SoftShellHousing;Nylon;Black;0.118in.;FreeHanging;Plug;6;UL94V-0 Crimp housing Pitch3 mm Poles 1 x 6 MATE-N-LOK Micro, 1445049-6, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 3mm 节距 6 路 直 公 压接连接器外壳 FREE HANG SNGL ROW HSG 6 POS
794615-8
te connectivity / amp

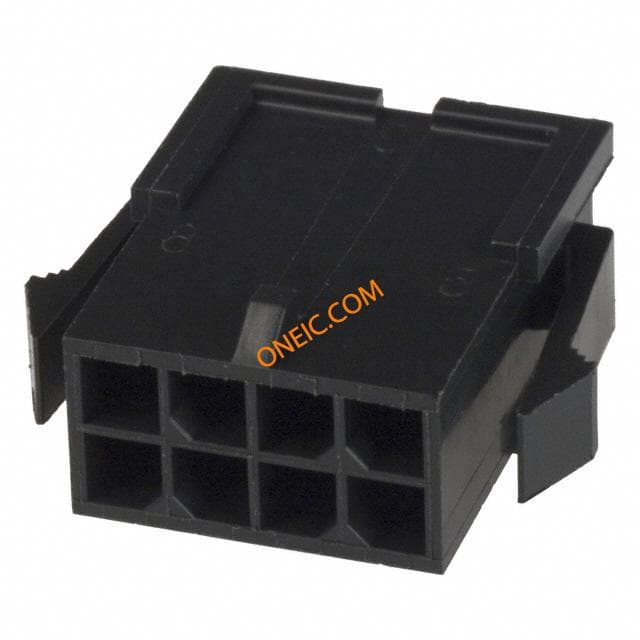

Conn Housing PL 8 POS 3mm Crimp ST 3mm Centerline, 250V, 5 A max. CONN PLUG 3MM 8POS DL M-N-L PNL Pin & Socket Connectors PLUG DUAL PNL MNT 8P Conn Housing PL 8 POS 3mm Crimp ST Product Highlights:HousingHousing Type = PlugNumber of Positions = 8Number of Rows = DualMount Type = Panel MountSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector PLUG & SOCKET HOUSING, PLUG, NYLON Connector,SoftShell;Nylon;Plug;Black;8;Dual;0.118in.;UL94V-0 PANEL MT DBL ROW HSG 8 POS
1-794616-0
te connectivity / amp
Conn Housing PL 10 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN PLUG 3MM 10POS DL MATE-N-L Micro MATE-N-LOK Plug housing 5+5P Pin & Socket Connectors PLUG DUAL F.H. 10P free hanging Conn Housing PL 10 POS 3mm ST Product Highlights:HousingHousing Type = PlugNumber of Positions = 10Number of Rows = DualMount Type = Free HangingSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector SoftShellHousing;Nylon;Black;0.118in.;FreeHanging;Plug;10;UL94V-0 TE Connectivity Micro MATE-N-LOK 系列 2 行 3mm 节距 10 路 直 公 电缆安装 压接连接器外壳 FREE HANG DBL ROW HSG 10 POS
794615-4
te connectivity / amp
Conn Housing PL 4 POS 3mm Crimp ST 3mm Centerline, 250V, 5 A max. CONN PLUG 3MM 4POS DL M-N-L PNL 4 way 2 row panel plug Mate-N-Lok Pin & Socket Connectors PLUG DUAL PNL MNT 4P Conn Housing PL 4 POS 3mm Crimp ST Product Highlights:HousingHousing Type = PlugNumber of Positions = 4Number of Rows = DualMount Type = Panel MountSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector PLUG, PANEL, DUAL ROW, 4WAY Connector,SoftShell;Nylon;Plug;Black;4;Dual;0.118in.;UL94V-0 TE Connectivity Micro MATE-N-LOK 系列 2 行 3mm 节距 4 路 直 公 压接连接器外壳 PANEL MT DBL ROW HSG 4 POS
1-794616-6
te connectivity / amp
Conn Housing PL 16 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN PLUG 3MM 16POS DL MATE-N-L Micro MATE-N-LOK Plug housing 8+8P Pin & Socket Connectors PLUG DUAL F.H. 16P free hanging Conn Housing PL 16 POS 3mm ST Product Highlights:HousingHousing Type = PlugNumber of Positions = 16Number of Rows = DualMount Type = Free HangingSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector SoftShellHousing;Nylon;Black;0.118in.;FreeHanging;Plug;16;UL94V-0 TE Connectivity Micro MATE-N-LOK 系列 2 行 3mm 节距 16 路 直 公 电缆安装 压接连接器外壳 FREE HANG DBL ROW HSG 16 POS
1-794615-8
te connectivity / amp
Conn Housing PL 18 POS 3mm Crimp ST 3mm Centerline, 250V, 5 A max. CONN PLUG 3MM 18POS DL M-N-L PNL Pin & Socket Connectors PLUG DUAL PNL MNT 18 Conn Housing PL 18 POS 3mm Crimp ST Product Highlights:HousingHousing Type = PlugNumber of Positions = 18Number of Rows = DualMount Type = Panel MountSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector Connector,SoftShell;Nylon;Plug;Black;18;Dual;0.118in.;UL94V-0 PANEL MT DBL ROW HSG 18 POS
1445048-9
te connectivity / amp
Conn Housing PL 9 POS 3mm ST Pin & Socket Connectors PLUG SNGL PNL MNT 9P 3mm Centerline, 250V, 5 A max. CONN PLUG 3MM 9POS MATE-N-LOK Conn Housing PL 9 POS 3mm ST Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector PANEL MT SNGL ROW HSG 9 POS
1-794616-2
te connectivity / amp
Conn Housing PL 12 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN PLUG 3MM 12POS DL MATE-N-L Pin & Socket Connectors PLUG DUAL F.H. 12P free hanging Conn Housing PL 12 POS 3mm ST Product Highlights:HousingHousing Type = PlugNumber of Positions = 12Number of Rows = DualMount Type = Free HangingSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector PLUG & SOCKET HOUSING, PLUG, NYLON SoftShellHousing;Nylon;Black;0.118in.;FreeHanging;Plug;12;UL94V-0 FREE HANG DBL ROW HSG 12 POS
1445048-4
te connectivity / amp
Conn Housing PL 4 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN PLUG 3MM 4POS MATE-N-LOK Pin & Socket Connectors PLUG SNGL PNL MNT 4P Conn Housing PL 4 POS 3mm ST Product Highlights:HousingHousing Type = PlugNumber of Positions = 4Number of Rows = SingleMount Type = Panel MountSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector Connector,SoftShell;Nylon;Plug;Black;4;Single;0.118in.;UL94V-0 PANEL MT SNGL ROW HSG 4 POS
2-794616-2
te connectivity / amp

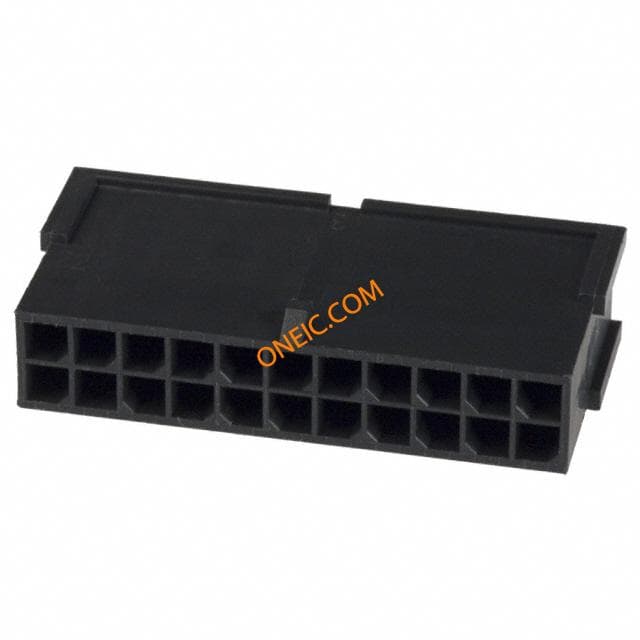

Conn Housing PL 22 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN PLUG 3MM 22POS DL MATE-N-L Pin & Socket Connectors PLUG DUAL F.H. 22P free hanging Conn Housing PL 22 POS 3mm ST Product Highlights:HousingHousing Type = PlugAccepts Contact Type = PinNumber of Positions = 22Number of Rows = 2Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
