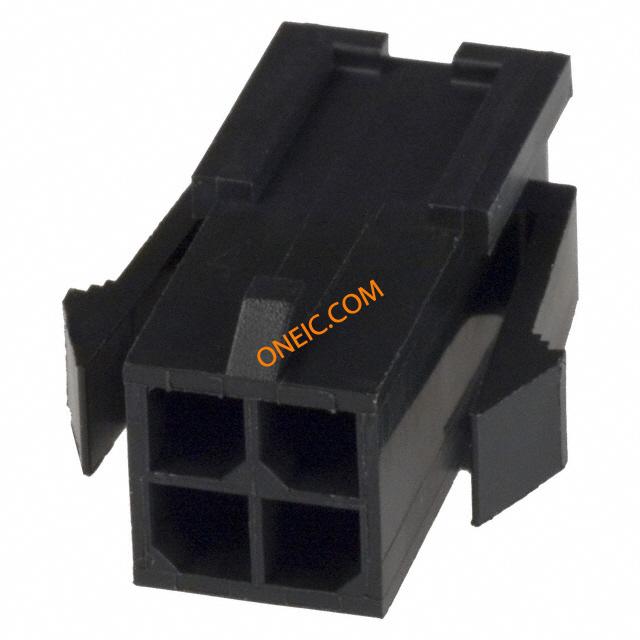

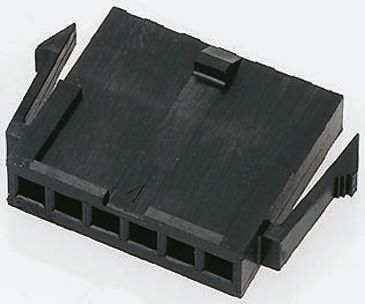

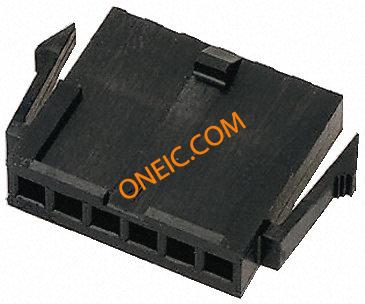

794615-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 4 POS 3mm Crimp ST 3mm Centerline, 250V, 5 A max. CONN PLUG 3MM 4POS DL M-N-L PNL 4 way 2 row panel plug Mate-N-Lok Pin & Socket Connectors PLUG DUAL PNL MNT 4P Conn Housing PL 4 POS 3mm Crimp ST Product Highlights:HousingHousing Type = PlugNumber of Positions = 4Number of Rows = DualMount Type = Panel MountSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector PLUG, PANEL, DUAL ROW, 4WAY Connector,SoftShell;Nylon;Plug;Black;4;Dual;0.118in.;UL94V-0 TE Connectivity Micro MATE-N-LOK 系列 2 行 3mm 节距 4 路 直 公 压接连接器外壳 PANEL MT DBL ROW HSG 4 POS |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | :CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 250 V | 接触电阻 | :20mohm |
| 击穿电压 | :1500V | 最大额定电流 | 5 A |
| 绝缘电阻 | :1000Mohm | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Black | 深度 | 16.89mm |
| 间距 | 3 mm | 重量 | 0.001 |
| 材料（通用） | :Nylon | 包装方式 | Bulk |
| 导线线规 | (20-24)/(26-30) AWG | 排间距 | 0.118" (3.00mm) |
| 触头类型 | Male Pin | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Plug |
| 紧固类型 | Locking Ramp | 安装样式 | Panel |
| 排数 | 2 | 封装形式 | Plug |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 总长度 | 3.00 [0.118] | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 连接器颜色 | :Black |
| 触点数 | 4 | 接触件端接 | Crimp |
| 位数 | 4 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | MATE-N-LOK |
| 产品子类型 | Housing | 适用产品/相关产品 | Centerline Soft Shell Pin & Socket Connector |
环境参数
| 工作温度 | -40C to 105C | ||
文档与媒体
相关型号
794608-3
te connectivity / amp

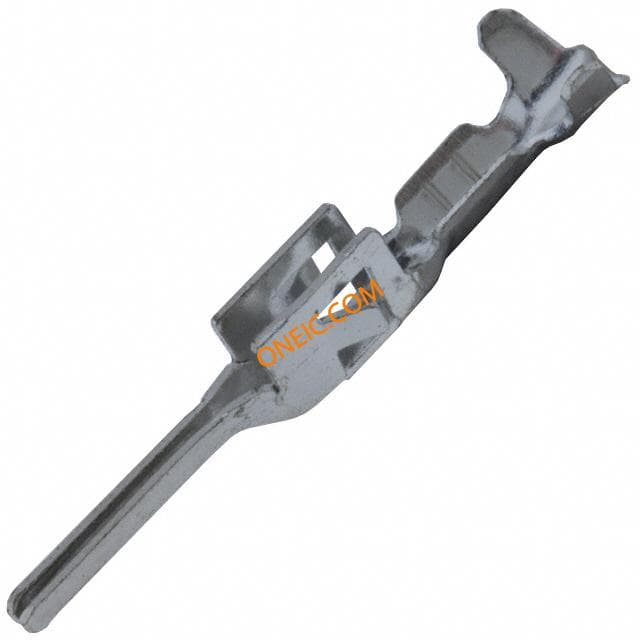

Contact PIN Crimp ST Cable Mount T/R 3mm Centerline, 250V, 5 A max. CONN PIN 20-24AWG GOLD CRIMP Pin & Socket Connectors PIN CONTACT 24-20 Contact PIN Crimp ST Cable Mount T/R Product Highlights:ContactContact Type = PlugWire Range = 0.20-0.60² [24-20] mm [AWG]Gold (30) Contact Mating Area Plating MaterialStripSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector PIN CONT 20-24 30 GOLD STRIP
794609-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount T/R 3mm Centerline, 250V, 5 A max. CONN PIN 26-30AWG TIN CRIMP Pin & Socket Connectors PIN CONTACT 26-30 3mm Centerline, 250V, 5 A max. Product Highlights:ContactContact Type = PinWire Range = 0.05-0.15 [30-26] mm [AWG]Bright Tin-Lead Contact Mating Area Plating MaterialPackaging Method = StripSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
794613-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece 3mm Centerline, 250V, 5 A max. CONN PIN 26-30AWG TIN CRIMP Pin & Socket Connectors PIN 26-30 AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = PlugWire Range = 0.05-0.15 [30-26] mm [AWG]Bright Tin-Lead Contact Mating Area PlatingLoose PieceSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector PIN CONT 26-30 TIN PLATE L/P
794609-3
te connectivity / amp
Contact PIN Crimp ST Cable Mount T/R 3mm Centerline, 250V, 5 A max. CONN PIN 26-30AWG GOLD CRIMP Pin & Socket Connectors PIN CONTACT 26-30 Contact PIN Crimp ST Cable Mount T/R Product Highlights:ContactContact Type = PlugWire Range = 0.05-0.15 [30-26] mm [AWG]Gold (30) Contact Mating Area PlatingStripSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
1-794613-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece 3mm Centerline, 250V, 5 A max. CONN PIN 26-30AWG TIN CRIMP Mate-N-Lok 26-30 awg contact pin Pin & Socket Connectors PIN 26-30 AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = PlugWire Range = 0.05-0.15 [30-26] mm [AWG]Bright Tin Contact Mating Area Plating MaterialPackaging Method = Loose PieceSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector CONTACT PIN, 26-30AWG Connector,Shell;Plug;5A(Max.);250;PhosphorBronze;26-30AWG TE Connectivity Micro MATE-N-LOK 系列 公 压接接线端子, 压接, 镀锡触点 PIN CONT 26-30 TIN PLATE L/P
794613-3
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Pin & Socket Connectors PIN 26-30 AWG 3mm Centerline, 250V, 5 A max. CONN PIN 26-30AWG GOLD CRIMP
794609-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount T/R Pin & Socket Connectors PIN CONT 26-30 3mm Centerline, 250V, 5 A max. CONN PIN 30-26AWG 15GOLD 3mm Centerline, 250V, 5 A max. Product Highlights:ContactContact Type = PinWire Range = 0.05-0.15 [30-26] mm [AWG]Gold (15) Contact Mating Area Plating MaterialPackaging Method = StripSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
1-794613-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece 3mm Centerline, 250V, 5 A max. CONN PIN 26-30AWG GOLD CRIMP Micro MATE-N-LOK Pin Contact 30-26AWG Pin & Socket Connectors PIN 26-30 AWG 1-794613-2 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = PlugWire Range = 0.05-0.15 [30-26] mm [AWG]Gold (30) Contact Mating Area Plating MaterialPackaging Method = Loose PieceSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector Connector,Shell;Plug;5A(Max.);250;PhosphorBronze;26-30AWG PIN CONT 26-30 30 GOLD L/P
1-794612-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece 3mm Centerline, 250V, 5 A max. CONN PIN 20-24AWG TIN CRIMP Mate-N-Lok 20-24 awg contact pin Pin & Socket Connectors PIN 20-24 AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = PlugWire Range = 0.20-0.60² [24-20] mm [AWG]Bright Tin Contact Mating Area PlatingLoose PieceSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector CONTACT PIN, 20-24AWG CONTACT, PIN, 24-20AWG, CRIMP Connector,Shell;Plug;5A(Max.);250;PhosphorBronze;20-24AWG;AMP TE Connectivity Micro MATE-N-LOK 系列 公 压接接线端子, 压接, 镀锡触点 PIN CONT 20-24 TIN PLATE L/P
1-794608-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount T/R 3mm Centerline, 250V, 5 A max. CONN PIN 20-24AWG TIN CRIMP Pin & Socket Connectors MMNL3 PIN 20-24 Reel of 10000 Contact PIN Crimp ST Cable Mount T/R Product Highlights:ContactContact Type = PlugWire Range = 0.20-0.60² [24-20] mm [AWG]Bright Tin Contact Mating Area PlatingTape & ReelSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector CONTACT, PIN, 24-20AWG, CRIMP PIN CONT 20-24 TIN PLATE STRIP
1-794608-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount T/R 3mm Centerline, 250V, 5 A max. CONN PIN 20-24AWG GOLD CRIMP Pin & Socket Connectors PIN 20-24 AWG Contact PIN Crimp ST Cable Mount T/R Product Highlights:ContactContact Type = PlugWire Range = 0.20-0.60² [24-20] mm [AWG]Gold (15) Contact Mating Area Plating MaterialPackaging Method = Tape & ReelSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector 20-24 AWG 3 mm 250 V 5 A Locking Lace Crimp Terminal PIN CONT 20-24 15 GOLD STRIP
794617-4
te connectivity / amp
Conn Housing RCP 4 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RCPT 3MM 4POS DL MATE-N-L 4 way 2 row receptacle Mate-N-Lok Pin & Socket Connectors RECPT DUAL ROW 4P Conn Housing RCP 4 POS 3mm Crimp ST Cable Mount Conn Housing RCP 4 POS 3mm Crimp ST Cable Mount Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 4Number of Rows = Dual3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector HOUSING, RECEPTACLE, DUAL ROW, 4WAY Connector,SoftShell;Nylon;Receptacle;Black;4;Dual;0.118in.;UL94V-0 Plug; wire-board; female; PIN:4; 3mm; for cable; Micro MATE-N-LOK Crimp housing Pitch3 mm Poles 2 x 2 MATE-N-LOK Micro, 794617-4, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 2 行 3mm 节距 4 路 直 母 连接器外壳 4POS,MICRO MNL,RCPT HSG
1-794613-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece 3mm Centerline, 250V, 5 A max. CONN PIN CONT 26-30AWG GOLD Micro MATE-N-LOK Pin Contact 30-26AWG Pin & Socket Connectors PIN 26-30 AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = PlugWire Range = 0.05-0.15 [30-26] mm [AWG]Gold (15) Contact Mating Area Plating MaterialPackaging Method = Loose PieceSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector CONTACT, PIN, 30-26AWG, CRIMP Connector,Shell;Plug;5A(Max.);250;PhosphorBronze;26-30AWG PIN CONT 26-30 15 GOLD L/P
794608-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount T/R 3mm Centerline, 250V, 5 A max. CONN PIN 24-20AWG CRIMP 15GOLD Pin & Socket Connectors PIN CONT 20-24 3mm Centerline, 250V, 5 A max. Product Highlights:ContactContact Type = PlugWire Range = 0.20-0.60² [24-20] mm [AWG]Gold (15) Contact Mating Area PlatingStripSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector PIN CONT 20-24 15 GOLD STRIP
1-794609-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount T/R 3mm Centerline, 250V, 5 A max. CONN PIN 26-30AWG TIN CRIMP Pin & Socket Connectors PIN CONTACT 26-30 Contact PIN Crimp ST Cable Mount T/R Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector PIN CONT 26-30 TIN PLATE STRIP

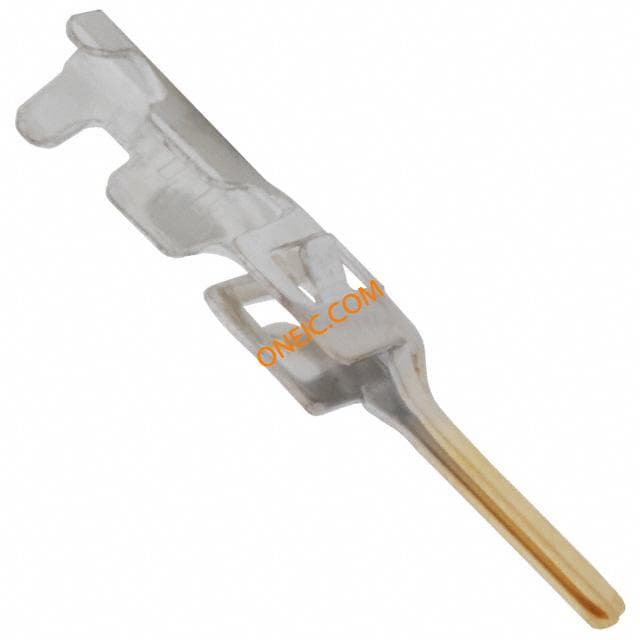

794612-3
