794617-4

点击放大查看

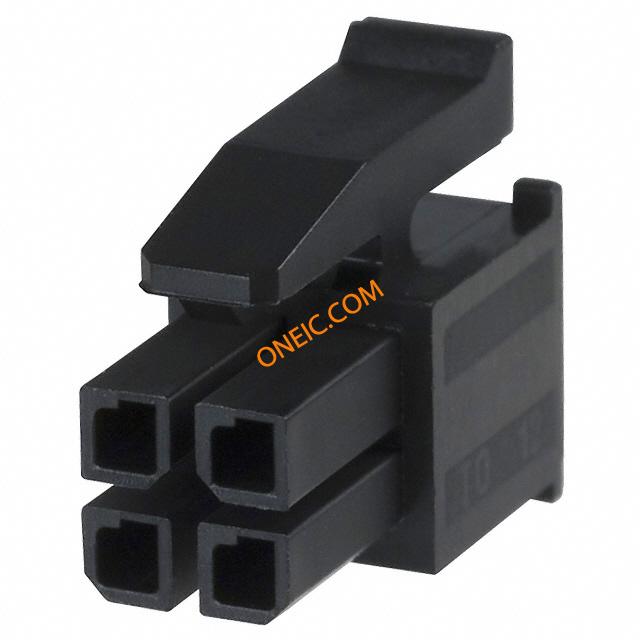

794617-4

制造商
TE Connectivity Ltd.
描述Conn Housing RCP 4 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RCPT 3MM 4POS DL MATE-N-L 4 way 2 row receptacle Mate-N-Lok Pin & Socket Connectors RECPT DUAL ROW 4P Conn Housing RCP 4 POS 3mm Crimp ST Cable Mount Conn Housing RCP 4 POS 3mm Crimp ST Cable Mount Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 4Number of Rows = Dual3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector HOUSING, RECEPTACLE, DUAL ROW, 4WAY Connector,SoftShell;Nylon;Receptacle;Black;4;Dual;0.118in.;UL94V-0 Plug; wire-board; female; PIN:4; 3mm; for cable; Micro MATE-N-LOK Crimp housing Pitch3 mm Poles 2 x 2 MATE-N-LOK Micro, 794617-4, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 2 行 3mm 节距 4 路 直 母 连接器外壳 4POS,MICRO MNL,RCPT HSG
分类
连接器解决方案矩形连接器FPC/FFC矩形连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Pin & Socket Connectors标准包装数量Bulk
工厂包装数量1600

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant
海关税号85369010无铅定义Not relevant for lead free process
认证机构:CSA, ULRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压250 V接触电阻:20mohm
击穿电压:1500V最大额定电流5 A
绝缘电阻:1000Mohm最小输入电压250VAC
最小供电电压250VAC

机械参数

颜色Black深度14.04mm
间距3 mm宽度11.7mm
高度11.7 mm长度7mm
重量0.048材料（通用）:Nylon
包装方式Bulk导线线规20 AWG
排间距0.118" (3.00mm)触头类型Female Socket
柱间距3mm外壳颜色Black
安装类型Straight连接器类型Receptacle
紧固类型Latch Lock安装样式Wire
排数2封装形式Receptacle
锁定特性:Latch本体材料:Nylon (Polyamide)
触头材料Phosphor Bronze壳体材料Nylon
总长度3.00 [0.118]包装数量100
连接器 - 电缆plug端接样式Crimp
第一触头极性Socket (Female)连接器颜色:Black
触点数4接触件端接Crimp
位数4第一连接器安装特征2x2

产品信息

SPG100备注Contacts Not Provided
类型Housing连接器性别RCP
系列MATE-N-LOKCAD图纸3D CAD Model
产品子类型Housing适配器系列Micro MATE-N-LOK
单元数量1适用产品/相关产品Centerline Soft Shell Pin & Socket Connector

环境参数

工作温度-40C to 105C

文档与媒体

PDF 文档
1650928.pdf
在线文档
794617-4?RQPN=794617-4

相关型号

3-794679-4

3-794679-4
