3-794618-4

点击放大查看

3-794618-4

制造商
TE Connectivity Ltd.

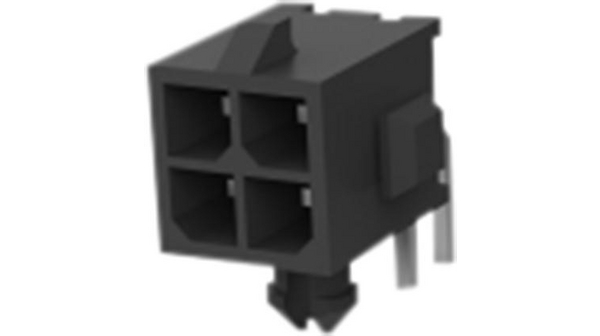

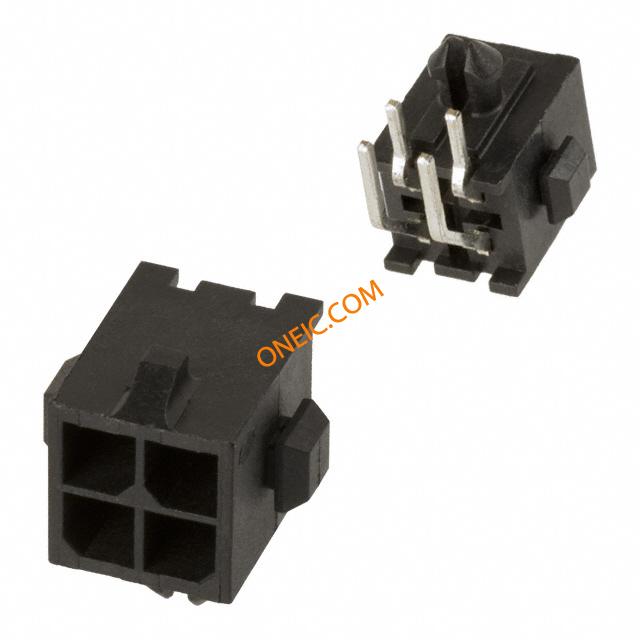

描述Conn Power HDR 4 POS 3mm Solder RA Thru-Hole 4 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 4POS DUAL R/A TIN TE Connectivity MATE-N-LOK Series 3mm Pitch 4 Way Right Angle Heavy Duty Power Connector, Solder Termination, 5A Pin & Socket Connectors HDR R/A 4 POS TIN DUAL Conn Power HDR 4 POS 3mm Solder RA Thru-Hole 4 Terminal 1 Port Product Highlights:Header AssemblyNumber of Positions = 4Number of Rows = DualRight Angle Mount AngleMount Style = Through-HoleSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector HEADER, RIGHT ANGLE, DUAL ROW, 4 WAY 4WD/ROWPINHEADERR/A Pin header Pitch3 mm Poles 4 Contact DesignMale MATE-N-LOK, 3-794618-4, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 3mm节距 4路 直角 PCB 针座, 焊接端接, 5A , 通孔 04P MICRO MNL ASSY R/A HDR LF
分类
工具与焊接解决方案压接钳、压接机、压力机压接钳
对参数有疑问？问 AI 助手

商业参数

产品类别Pin & Socket Connectors标准包装数量Trays
工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
无铅定义Reflow solder capable to 245°C, Reflow solder capable to 260°C认证机构:CSA, UL
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

量程（°/s）:TE - Micro MATE-N-LOK Series额定电压250 V ac
最大额定电流5A

机械参数

颜色Black间距3 mm
重量0.001材料（通用）:Nylon
包装方式Tray排间距0.118" (3.00mm)
端接方式Solder触头类型Male Pin
极化Without外壳颜色Black
安装类型Through Hole连接器类型Header, Shrouded
接触镀层Matte Tin紧固类型Locking Ramp
安装样式Through-Hole排数Dual
触头材料Brass壳体材料High Temperature Nylon
端接样式Solder第一触头极性Pin (Male)
连接器颜色:Black触点数4
接触件端接:Through Hole Right Angle位数4
中心触点材料3.00 [0.118]接触镀层厚度100µin (2.54µm)

产品信息

类型Power连接器性别HDR
系列MATE-N-LOK产品特性Board Lock
CAD图纸3D CAD Model制造商全称AMP
产品子类型Header Assembly加载位置数All

环境参数

工作温度:105°C

文档与媒体

PDF 文档
1650928.pdf
在线文档
3-794618-4?RQPN=3-794618-4

相关型号

794617-4

794617-4

te connectivity / amp
