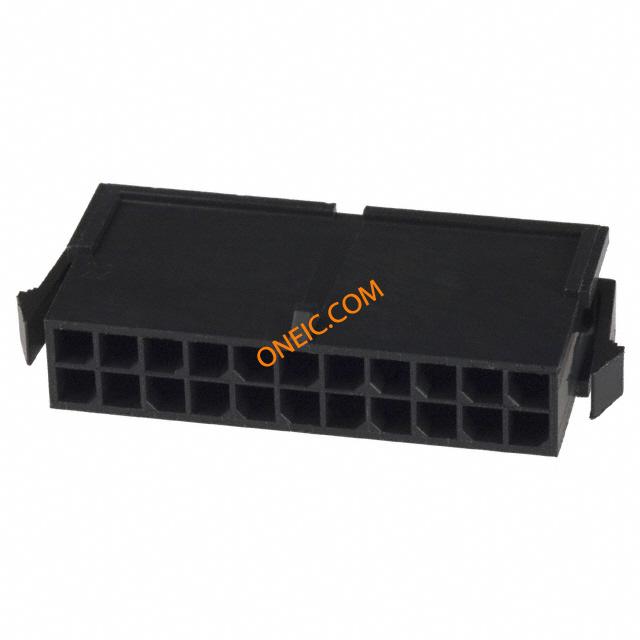

2-794615-2

点击放大查看

2-794615-2

制造商
TE Connectivity Ltd.
描述Conn Housing PL 22 POS 3mm Crimp ST 3mm Centerline, 250V, 5 A max. CONN PLUG 3MM 22POS DL M-N-L PNL Pin & Socket Connectors PLUG DUAL PNL MNT 22 Conn Housing PL 22 POS 3mm Crimp ST Product Highlights:HousingHousing Type = PlugNumber of Positions = 22Number of Rows = DualMount Type = Panel MountSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector PANEL MT DBL ROW HSG 22 POS
分类
连接器解决方案矩形连接器电源混合矩形连接器
对参数有疑问？问 AI 助手

商业参数

其他名称A30291产品类别Pin & Socket Connectors
标准包装数量Bulk工厂包装数量1

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
零件状态E28476无铅定义Not relevant for lead free process
CSA档案号LR7189标准编号CSA, UL
RoHS/ELV合规状态RoHS compliant, ELV compliantUL阻燃等级UL 94V-0
认证机构标志已认证材料阻燃等级UL 94V-0

电气参数

额定电压250 V供电电压250
最大额定电流5 A最小供电电压250VAC

机械参数

颜色Black深度16.89 mm
间距3 mm长度33.85
包装方式Bulk壳体颜色黑色
导线线规(20-24)/(26-30) AWG排间距0.118" (3.00mm)
本体尺寸1.57 – 2.3 mm [ .062 – .091 in ]触头类型Male Pin
外壳颜色Black安装类型Straight
连接器类型Plug接触镀层Without
紧固类型Locking Ramp安装样式Panel
排数2封装形式Plug
外壳材料（壳体）插头高度（英寸）8.71
触头材料Brass壳体材料Nylon
总长度3.00 [0.118]包装数量250
面板安装类型带有端接样式Crimp
第一触头极性Pin (Male)触点数22
接触件端接Crimp绝缘直径1.52 mm [ .06 in ]
位数22安装孔直径带有
静电放电屏蔽不带

产品信息

备注Contacts Not Provided类型Housing
连接器性别PL系列Mate-N-Lok
产品子类型Housing

环境参数

工作范围不密封测试温度标准件 - 非灼热丝
工作温度-40C to 105C

文档与媒体

在线文档
2-794615-2?RQPN=2-794615-2

相关型号

794608-3

794608-3

te connectivity / amp

Contact PIN Crimp ST Cable Mount T/R 3mm Centerline, 250V, 5 A max. CONN PIN 20-24AWG GOLD CRIMP Pin & Socket Connectors PIN CONTACT 24-20 Contact PIN Crimp ST Cable Mount T/R Product Highlights:ContactContact Type = PlugWire Range = 0.20-0.60² [24-20] mm [AWG]Gold (30) Contact Mating Area Plating MaterialStripSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector PIN CONT 20-24 30 GOLD STRIP

¥0.3400
详情
794609-1

794609-1

te connectivity / amp

Contact PIN Crimp ST Cable Mount T/R 3mm Centerline, 250V, 5 A max. CONN PIN 26-30AWG TIN CRIMP Pin & Socket Connectors PIN CONTACT 26-30 3mm Centerline, 250V, 5 A max. Product Highlights:ContactContact Type = PinWire Range = 0.05-0.15 [30-26] mm [AWG]Bright Tin-Lead Contact Mating Area Plating MaterialPackaging Method = StripSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥0.1360
详情
794613-1

794613-1

te connectivity / amp

Contact PIN Crimp ST Cable Mount Loose Piece 3mm Centerline, 250V, 5 A max. CONN PIN 26-30AWG TIN CRIMP Pin & Socket Connectors PIN 26-30 AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = PlugWire Range = 0.05-0.15 [30-26] mm [AWG]Bright Tin-Lead Contact Mating Area PlatingLoose PieceSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector PIN CONT 26-30 TIN PLATE L/P

¥0.2808
详情
暂无图片

794609-3

te connectivity / amp

Contact PIN Crimp ST Cable Mount T/R 3mm Centerline, 250V, 5 A max. CONN PIN 26-30AWG GOLD CRIMP Pin & Socket Connectors PIN CONTACT 26-30 Contact PIN Crimp ST Cable Mount T/R Product Highlights:ContactContact Type = PlugWire Range = 0.05-0.15 [30-26] mm [AWG]Gold (30) Contact Mating Area PlatingStripSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥0.3713
详情
1-794613-0

1-794613-0

te connectivity / amp

Contact PIN Crimp ST Cable Mount Loose Piece 3mm Centerline, 250V, 5 A max. CONN PIN 26-30AWG TIN CRIMP Mate-N-Lok 26-30 awg contact pin Pin & Socket Connectors PIN 26-30 AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = PlugWire Range = 0.05-0.15 [30-26] mm [AWG]Bright Tin Contact Mating Area Plating MaterialPackaging Method = Loose PieceSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector CONTACT PIN, 26-30AWG Connector,Shell;Plug;5A(Max.);250;PhosphorBronze;26-30AWG TE Connectivity Micro MATE-N-LOK 系列 公 压接接线端子, 压接, 镀锡触点 PIN CONT 26-30 TIN PLATE L/P

¥0.2108
详情
794613-3

794613-3

te connectivity / amp

Contact PIN Crimp ST Cable Mount Loose Piece Pin & Socket Connectors PIN 26-30 AWG 3mm Centerline, 250V, 5 A max. CONN PIN 26-30AWG GOLD CRIMP

¥0.4080
详情
794609-2

794609-2

te connectivity / amp

Contact PIN Crimp ST Cable Mount T/R Pin & Socket Connectors PIN CONT 26-30 3mm Centerline, 250V, 5 A max. CONN PIN 30-26AWG 15GOLD 3mm Centerline, 250V, 5 A max. Product Highlights:ContactContact Type = PinWire Range = 0.05-0.15 [30-26] mm [AWG]Gold (15) Contact Mating Area Plating MaterialPackaging Method = StripSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥0.2441
详情
1-794613-2

1-794613-2

te connectivity / amp

Contact PIN Crimp ST Cable Mount Loose Piece 3mm Centerline, 250V, 5 A max. CONN PIN 26-30AWG GOLD CRIMP Micro MATE-N-LOK Pin Contact 30-26AWG Pin & Socket Connectors PIN 26-30 AWG 1-794613-2 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = PlugWire Range = 0.05-0.15 [30-26] mm [AWG]Gold (30) Contact Mating Area Plating MaterialPackaging Method = Loose PieceSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector Connector,Shell;Plug;5A(Max.);250;PhosphorBronze;26-30AWG PIN CONT 26-30 30 GOLD L/P

¥0.4624
详情
1-794612-0

1-794612-0

te connectivity / amp

Contact PIN Crimp ST Cable Mount Loose Piece 3mm Centerline, 250V, 5 A max. CONN PIN 20-24AWG TIN CRIMP Mate-N-Lok 20-24 awg contact pin Pin & Socket Connectors PIN 20-24 AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = PlugWire Range = 0.20-0.60² [24-20] mm [AWG]Bright Tin Contact Mating Area PlatingLoose PieceSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector CONTACT PIN, 20-24AWG CONTACT, PIN, 24-20AWG, CRIMP Connector,Shell;Plug;5A(Max.);250;PhosphorBronze;20-24AWG;AMP TE Connectivity Micro MATE-N-LOK 系列 公 压接接线端子, 压接, 镀锡触点 PIN CONT 20-24 TIN PLATE L/P

¥0.2176
详情
1-794608-0

1-794608-0

te connectivity / amp

Contact PIN Crimp ST Cable Mount T/R 3mm Centerline, 250V, 5 A max. CONN PIN 20-24AWG TIN CRIMP Pin & Socket Connectors MMNL3 PIN 20-24 Reel of 10000 Contact PIN Crimp ST Cable Mount T/R Product Highlights:ContactContact Type = PlugWire Range = 0.20-0.60² [24-20] mm [AWG]Bright Tin Contact Mating Area PlatingTape & ReelSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector CONTACT, PIN, 24-20AWG, CRIMP PIN CONT 20-24 TIN PLATE STRIP

¥0.1584
详情
1-794608-1

1-794608-1

te connectivity / amp

Contact PIN Crimp ST Cable Mount T/R 3mm Centerline, 250V, 5 A max. CONN PIN 20-24AWG GOLD CRIMP Pin & Socket Connectors PIN 20-24 AWG Contact PIN Crimp ST Cable Mount T/R Product Highlights:ContactContact Type = PlugWire Range = 0.20-0.60² [24-20] mm [AWG]Gold (15) Contact Mating Area Plating MaterialPackaging Method = Tape & ReelSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector 20-24 AWG 3 mm 250 V 5 A Locking Lace Crimp Terminal PIN CONT 20-24 15 GOLD STRIP

¥0.3128
详情
1-794613-1

1-794613-1

te connectivity / amp

Contact PIN Crimp ST Cable Mount Loose Piece 3mm Centerline, 250V, 5 A max. CONN PIN CONT 26-30AWG GOLD Micro MATE-N-LOK Pin Contact 30-26AWG Pin & Socket Connectors PIN 26-30 AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = PlugWire Range = 0.05-0.15 [30-26] mm [AWG]Gold (15) Contact Mating Area Plating MaterialPackaging Method = Loose PieceSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector CONTACT, PIN, 30-26AWG, CRIMP Connector,Shell;Plug;5A(Max.);250;PhosphorBronze;26-30AWG PIN CONT 26-30 15 GOLD L/P

¥0.2910
详情
794608-2

794608-2

te connectivity / amp

Contact PIN Crimp ST Cable Mount T/R 3mm Centerline, 250V, 5 A max. CONN PIN 24-20AWG CRIMP 15GOLD Pin & Socket Connectors PIN CONT 20-24 3mm Centerline, 250V, 5 A max. Product Highlights:ContactContact Type = PlugWire Range = 0.20-0.60² [24-20] mm [AWG]Gold (15) Contact Mating Area PlatingStripSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector PIN CONT 20-24 15 GOLD STRIP

¥0.2992
详情
1-794609-0

1-794609-0

te connectivity / amp

Contact PIN Crimp ST Cable Mount T/R 3mm Centerline, 250V, 5 A max. CONN PIN 26-30AWG TIN CRIMP Pin & Socket Connectors PIN CONTACT 26-30 Contact PIN Crimp ST Cable Mount T/R Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector PIN CONT 26-30 TIN PLATE STRIP

¥0.1496
详情
794612-3

794612-3

te connectivity / amp

Contact PIN Crimp ST Cable Mount Loose Piece 3mm Centerline, 250V, 5 A max. CONN PIN 20-24AWG GOLD CRIMP Pin & Socket Connectors PIN 20-24 AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = PlugWire Range = 0.20-0.60² [24-20] mm [AWG]Gold (30) Contact Mating Area Plating MaterialPackaging Method = Loose PieceSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector MICROMNLCONTACTS,PINCONT20-2430GOLDL/P PIN CONT 20-24 30 GOLD L/P

¥0.4012
详情
2-794617-2

2-794617-2

te connectivity / amp

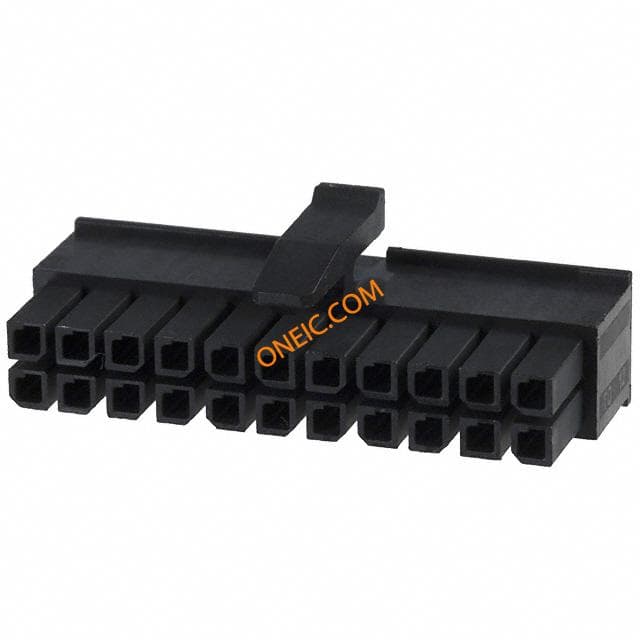

Conn Housing RCP 22 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RCPT 3MM 22POS DL MATE-N-L TE Connectivity Micro MATE-N-LOK Series 3mm 22 Way 2 Row Straight Free Hanging Power Distribution Power to the Board 22P HSG RECEPT Conn Housing RCP 22 POS 3mm ST Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 22Number of Rows = Dual3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector PLUG & SOCKET HOUSING, RECEPTACLE, NYLON Crimp housing Pitch3 mm Poles 2 x 11 MATE-N-LOK Micro, 2-794617-2, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 2 行 3mm 节距 22 路 直 母 电缆安装 压接连接器外壳 22POS,MICRO MNL,RCPT HSG
