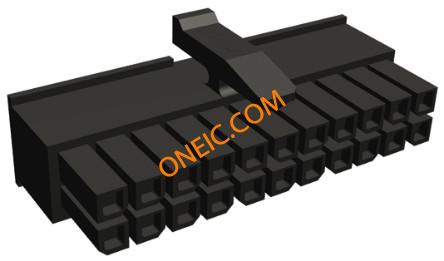

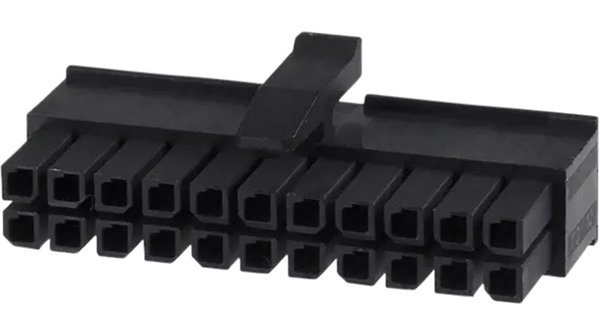

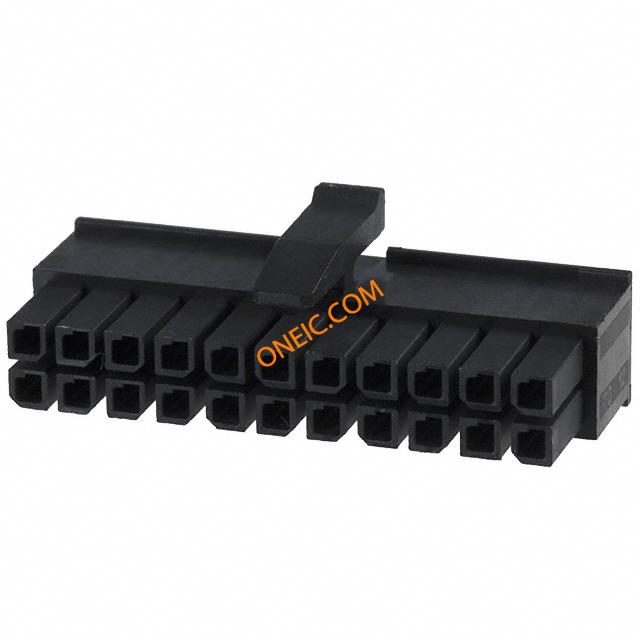

2-794617-2

点击放大查看

2-794617-2

制造商
TE Connectivity Ltd.
描述Conn Housing RCP 22 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RCPT 3MM 22POS DL MATE-N-L TE Connectivity Micro MATE-N-LOK Series 3mm 22 Way 2 Row Straight Free Hanging Power Distribution Power to the Board 22P HSG RECEPT Conn Housing RCP 22 POS 3mm ST Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 22Number of Rows = Dual3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector PLUG & SOCKET HOUSING, RECEPTACLE, NYLON Crimp housing Pitch3 mm Poles 2 x 11 MATE-N-LOK Micro, 2-794617-2, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 2 行 3mm 节距 22 路 直 母 电缆安装 压接连接器外壳 22POS,MICRO MNL,RCPT HSG
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Power to the Board标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
无铅定义Not relevant for lead free processRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压250 V ac最大额定电流5A
最小供电电压250VAC

机械参数

颜色Black深度14.04 mm
间距3 mm高度11.7 mm
重量1包装方式Bulk
导线线规20 AWG排间距0.118" (3.00mm)
端接方式Solder触头类型Female Socket
外壳颜色Black安装类型Straight
连接器类型Receptacle紧固类型Latch Lock
安装样式Free Hanging排数2
封装形式Receptacle壳体材料Nylon
总长度3.00 [0.118]第一触头极性Socket (Female)
触点数22接触件端接Crimp
位数22第一连接器安装类型:Cable

产品信息

备注Contacts Not Provided类型Housing
连接器性别RCP系列Micro MATE-N-LOK
产品子类型Housing适用产品/相关产品:Micro MATE-N-LOK Connectors

环境参数

工作温度-40C to 105C

文档与媒体

在线文档
2-794617-2?RQPN=2-794617-2

相关型号

暂无图片

2-794637-2

te connectivity / amp

Conn Power HDR 22 POS 3mm Solder ST SMD 22 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 22POS DL 15GOLD SMD Pin & Socket Connectors 22POS MICRO MNL ASSY VRT,SMT 22POS MICRO MNL ASSY,VRT,SMT 22POS MICRO MNL ASSY,VRT,SMT Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥15.5520
详情
5-794630-2

5-794630-2

te connectivity / amp

Conn Power HDR 22 POS 3mm Solder ST Thru-Hole 22 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 22POS DUAL TIN Power to the Board HDR VERT 22 POS TIN DUAL 22P MICRO MNL ASSY,VRT,HDR,LF 22P MICRO MNL ASSY,VRT,HDR,LF Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥9.1440
详情
5-794636-2

5-794636-2

te connectivity / amp

Conn Power HDR 22 POS 3mm Solder ST SMD 22 Terminal 1 Port Pin & Socket Connectors 22P MICRO MNL ASSY VRT SMT LF 3mm Centerline, 250V, 5 A max. CONN HEADER 22POS DUAL TIN SMD 3mm Centerline, 250V, 5 A max. Product Highlights:Header AssemblyNumber of Positions = 22Number of Rows = DualVertical Mount AngleMount Style = Surface MountSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector 22P MICRO MNL ASSY,VRT,SMT,LF

¥11.3760
详情
5-794638-2

5-794638-2

te connectivity / amp

Conn Power HDR 22 POS 3mm Solder ST SMD 22 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 22POS DUAL GOLD SMD Pin & Socket Connectors 22P MICRO MNL ASSY VRT,SMT,LF 3mm Centerline, 250V, 5 A max. Product Highlights:Header AssemblyNumber of Positions = 22Number of Rows = DualVertical Mount AngleMount Style = Surface MountSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector 22P MICRO MNL ASSY,VRT,SMT,LF

¥16.3440
详情
暂无图片

2-794621-2

te connectivity / amp

Conn Power HDR 22 POS 3mm Solder RA SMD 22 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 22POS DL R/A TIN SMD 22POS MICRO MNL ASSY,R/A,SMT 22POS MICRO MNL ASSY,R/A,SMT Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥14.1120
详情
暂无图片

2-794682-2

te connectivity / amp

Conn Wire to Board HDR 22 POS 3mm Solder ST Thru-Hole 3mm Centerline, 250V, 5 A max. CONN HEADER 22POS DL VERT 30GOLD 22POS MICRO MNL ASSY,VRT,THRU 22POS MICRO MNL ASSY,VRT,THRU Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥15.1920
详情
2-794632-2

2-794632-2

te connectivity / amp

Conn Power HDR 22 POS 3mm Solder ST Thru-Hole 22 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 22POS DUAL GOLD 22POS MICRO MNL ASSY,VRT,HDR 22POS MICRO MNL ASSY,VRT,HDR Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥14.4720
详情
暂无图片

2-794619-2

te connectivity / amp

Conn Power HDR 22 POS 3mm Solder RA Thru-Hole 22 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 22POS DL R/A 15GOLD 22POS MICRO MNL ASSY,R/A,HDR 22POS MICRO MNL ASSY,R/A,HDR Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥11.8080
详情
2-794638-2

2-794638-2

te connectivity / amp

Conn Power HDR 22 POS 3mm Solder ST SMD 22 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 22POS DUAL GOLD SMD 22POS MICRO MNL ASSY,VRT,SMT 22POS MICRO MNL ASSY,VRT,SMT Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥18.7200
详情
暂无图片

2-794678-2

te connectivity / amp

Conn Power HDR 22 POS 3mm Solder RA Thru-Hole 22 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 22POS DL R/A 15GOLD 22POS MICRO MNL ASSY,R/A,THRU 22POS MICRO MNL ASSY,R/A,THRU Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥12.4560
详情
暂无图片

2-794634-2

te connectivity / amp

Conn Power HDR 22 POS 3mm Solder ST SMD 22 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 22POS DL 15GOLD SMD 22POS MICRO MNL ASSY,VRT,SMT 22POS MICRO MNL ASSY,VRT,SMT Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥15.2640
详情
暂无图片

2-794626-2

te connectivity / amp

Conn Power HDR 22 POS 3mm Solder RA SMD 22 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADR 22POS DL R/A 30AU SMD

¥21.5280
详情
2-794629-2

2-794629-2

te connectivity / amp

Conn Power HDR 22 POS 3mm Solder RA SMD 22 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HDR 22POS DUAL R/A GOLD SMD 22POS MICRO MNL ASSY,R/A,SMT 22POS MICRO MNL ASSY,R/A,SMT Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥21.8160
详情
5-794627-2

5-794627-2

te connectivity / amp

Conn Power HDR 22 POS 3mm Solder RA SMD 22 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HDR 22POS DUAL R/A TIN SMD 22P MICRO MNL ASSY,RA,SMT,LF 22P MICRO MNL ASSY,RA,SMT,LF Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥12.9600
详情
5-794620-2

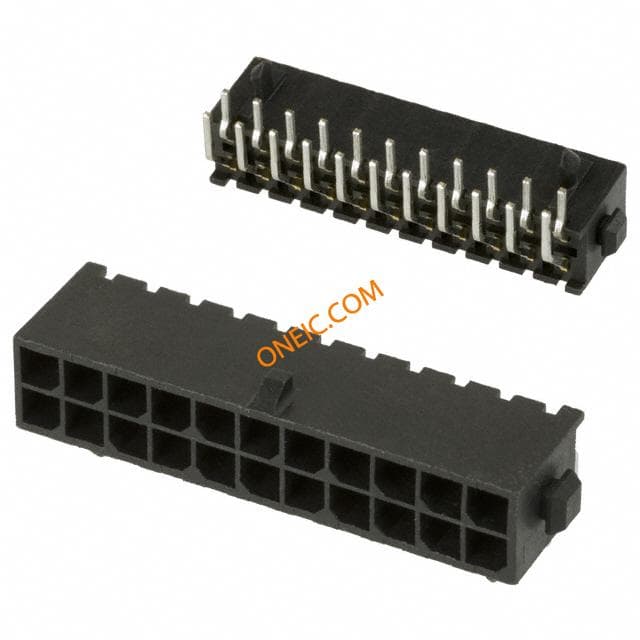

5-794620-2
