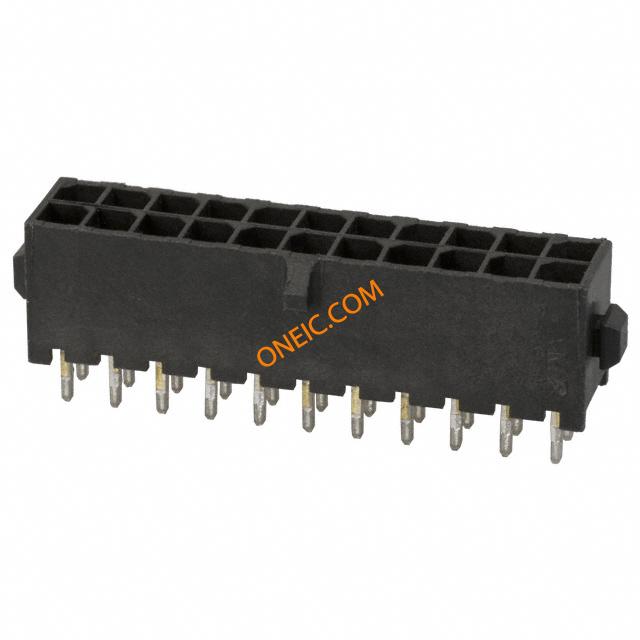

5-794630-2

制造商
TE Connectivity Ltd.
描述Conn Power HDR 22 POS 3mm Solder ST Thru-Hole 22 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 22POS DUAL TIN Power to the Board HDR VERT 22 POS TIN DUAL 22P MICRO MNL ASSY,VRT,HDR,LF 22P MICRO MNL ASSY,VRT,HDR,LF Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
分类
工具与焊接解决方案压接钳、压接机、压力机压接钳
对参数有疑问？问 AI 助手

商业参数

标准包装规格91产品类别Power to the Board
标准包装数量Trays工厂包装数量1

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
零件状态E28476无铅定义Reflow solder capable to 245°C, Reflow solder capable to 260°C
CSA档案号LR7189标准编号CSA, UL
CSA分类已认证RoHS/ELV合规状态RoHS compliant, ELV compliant
UL阻燃等级UL 94V-0认证机构标志是
材料阻燃等级UL 94V-0

电气参数

供电电压250最大额定电流5

机械参数

颜色Black间距3 mm
宽度9.24长度37
密封型Not Sealed包装方式Tray
壳体颜色黑色排间距0.118" (3.00mm)
端接方式Solder触头类型Male Pin
极化Without外壳颜色Black
安装类型Through Hole连接器类型Header, Shrouded
接触镀层Matte Tin紧固类型Locking Ramp
安装样式Through-Hole引脚数22
排数Dual高度（英寸）8.67
触头材料Brass壳体材料High Temperature Nylon
安装特性保持凸块包装数量91
面板安装类型通孔 - 焊接端接样式插针
触点数22绝缘直径1.52
位数22外壳尺寸-插件插头
兼容外壳尺寸（如TM-700等）插头护套安装孔直径带有
中心触点材料3.00 [0.118]接触件表面处理 - 配合锡
端子柱长度3.56 mm [ .14 in ]接触镀层厚度100µin (2.54µm)
后壳材料及镀层磷青铜

产品信息

备注Retention feature located on end contacts only.类型Power
连接器性别HDR产品子类型Header Assembly
应用细节Power加载位置数All
