5-794620-2

点击放大查看

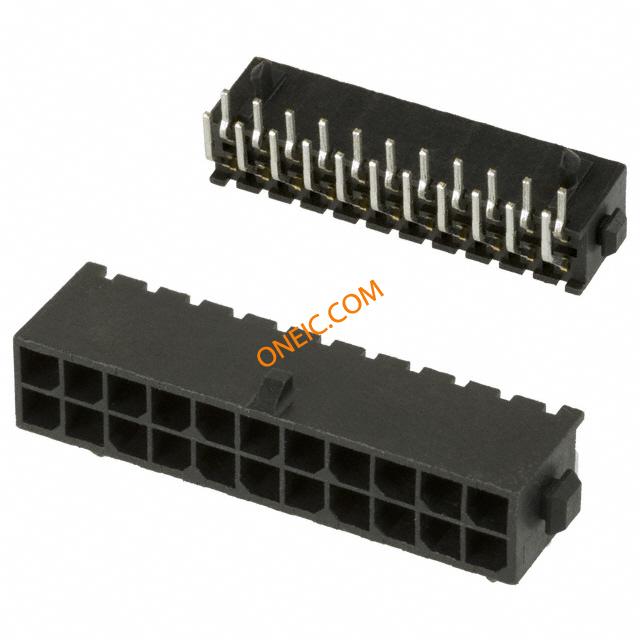

5-794620-2

制造商
TE Connectivity Ltd.
描述Pin & Socket Connectors 22P MICRO MNL ASSY R/A,HDR,LF 3mm Centerline, 250V, 5 A max. CONN HEADER 22POS DUAL R/A GOLD 22P MICRO MNL ASSY,R/A,HDR,LF 22P MICRO MNL ASSY,R/A,HDR,LF Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
分类
连接器解决方案矩形连接器FPC/FFC矩形连接器
对参数有疑问？问 AI 助手

商业参数

标准包装规格91标准包装数量1,001

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
零件状态E28476无铅定义Reflow solder capable to 245°C, Reflow solder capable to 260°C
CSA档案号LR7189标准编号CSA, UL
CSA分类已认证RoHS/ELV合规状态RoHS compliant, ELV compliant
UL阻燃等级UL 94V-0认证机构标志是
材料阻燃等级UL 94V-0

电气参数

供电电压250最大额定电流5

机械参数

颜色Black间距0.118" (3.00mm)
密封型Not Sealed包装方式Tray
壳体颜色黑色排间距0.118" (3.00mm)
端接方式Solder触头类型Male Pin
极化Without外壳颜色Black
安装类型Right Angle连接器类型Header, Shrouded
接触镀层Matte Tin紧固类型Locking Ramp
安装样式Through-Hole引脚数22
排数Dual触头材料Brass
壳体材料High Temperature Nylon安装特性板锁
包装数量91面板安装类型通孔 - 焊接
端接样式插针绝缘直径1.52
位数22外壳尺寸-插件插头
兼容外壳尺寸（如TM-700等）插头护套安装孔直径带有
中心触点材料3.00 [0.118]接触件表面处理 - 配合哑光
端子柱长度3.5 mm [ .138 in ]接触镀层厚度30µin (0.76µm)
静电放电屏蔽不带后壳材料及镀层尼龙

产品信息

产品特性Board Lock制造商全称AMP
产品子类型Header Assembly应用细节Power
加载位置数All

环境参数

测试温度标准件 - 非灼热丝工作温度-40 – 105 °C [ -40 – 221 °F ]
封装热阻1.6 mm [ .063 in ]
