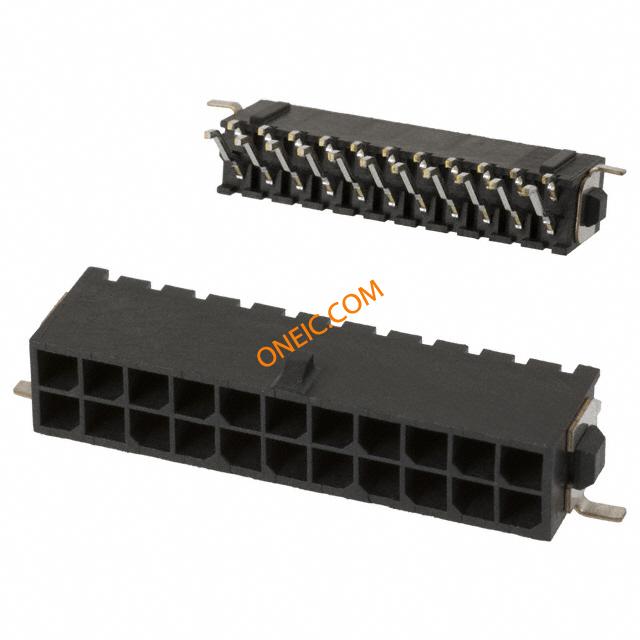

5-794627-2

点击放大查看

5-794627-2

制造商
TE Connectivity Ltd.
描述Conn Power HDR 22 POS 3mm Solder RA SMD 22 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HDR 22POS DUAL R/A TIN SMD 22P MICRO MNL ASSY,RA,SMT,LF 22P MICRO MNL ASSY,RA,SMT,LF Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
分类
工具与焊接解决方案压接钳、压接机、压力机压接钳
对参数有疑问？问 AI 助手

商业参数

标准包装规格150标准包装数量Tape & Reel

合规参数

RoHSLead free / RoHS Compliant无铅定义Reflow solder capable to 245°C, Reflow solder capable to 260°C
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

机械参数

颜色Black间距0.118" (3.00mm)
镀层Tin包装方式Tape & Reel (TR)
排间距0.118" (3.00mm)端接方式Solder
触头类型Male Pin极化Without
外壳颜色Black安装类型Right Angle
连接器类型Header, Shrouded接触镀层Matte Tin
紧固类型Locking Ramp安装样式Surface Mount
排数Dual触头材料Brass
壳体材料High Temperature Nylon框架材料Phosphor Bronze
位数22中心触点材料3.00 [0.118]
接触镀层厚度100µin (2.54µm)

产品信息

产品子类型Header Assembly加载位置数All
