5-794636-2

点击放大查看

5-794636-2

制造商
TE Connectivity Ltd.

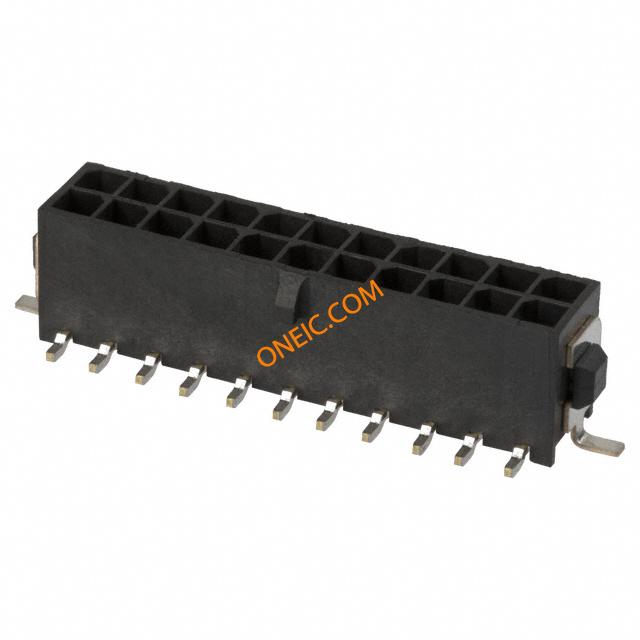

描述Conn Power HDR 22 POS 3mm Solder ST SMD 22 Terminal 1 Port Pin & Socket Connectors 22P MICRO MNL ASSY VRT SMT LF 3mm Centerline, 250V, 5 A max. CONN HEADER 22POS DUAL TIN SMD 3mm Centerline, 250V, 5 A max. Product Highlights:Header AssemblyNumber of Positions = 22Number of Rows = DualVertical Mount AngleMount Style = Surface MountSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector 22P MICRO MNL ASSY,VRT,SMT,LF
分类
工具与焊接解决方案压接钳、压接机、压力机压接钳
对参数有疑问？问 AI 助手

商业参数

标准包装规格175产品类别Pin & Socket Connectors
标准包装数量Tape & Reel工厂包装数量350

合规参数

RoHSRoHS CompliantUL等级获得认可
零件状态E28476无铅定义Reflow solder capable to 245°C, Reflow solder capable to 260°C
CSA档案号LR7189标准编号CSA, UL
CSA分类已认证RoHS/ELV合规状态RoHS compliant, ELV compliant
UL阻燃等级UL 94V-0认证机构标志是
材料阻燃等级UL 94V-0

电气参数

供电电压250最大额定电流5

机械参数

颜色Black间距3 mm
密封型Not Sealed镀层Tin
包装方式Reel壳体颜色黑色
排间距0.118" (3.00mm)端接方式Solder
触头类型Male Pin极化Without
外壳颜色Black安装类型Surface Mount
连接器类型Header, Shrouded接触镀层Matte Tin
紧固类型Locking Ramp安装样式Surface Mount
引脚数22排数Dual
触头材料Brass壳体材料High Temperature Nylon
安装特性压紧柱体包装数量175
面板安装类型表面贴装端接样式插针
绝缘直径1.52位数22
外壳尺寸-插件插头兼容外壳尺寸（如TM-700等）插头护套
安装孔直径带有中心触点材料3.00 [0.118]
接触件表面处理 - 配合哑光端子柱长度3.56 mm [ .14 in ]
接触镀层厚度100µin (2.54µm)静电放电屏蔽不带
后壳材料及镀层磷青铜

产品信息

类型Power连接器性别HDR
制造商全称AMP产品子类型Receptacle Housings
应用细节Power加载位置数All

环境参数

测试温度标准件 - 非灼热丝工作温度-40 – 105 °C [ -40 – 221 °F ]
封装热阻1.6 mm [ .063 in ]

文档与媒体

在线文档
5-794636-2
在线文档
5-794636-2?RQPN=5-794636-2

相关型号

2-794617-2

2-794617-2

te connectivity / amp

Conn Housing RCP 22 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RCPT 3MM 22POS DL MATE-N-L TE Connectivity Micro MATE-N-LOK Series 3mm 22 Way 2 Row Straight Free Hanging Power Distribution Power to the Board 22P HSG RECEPT Conn Housing RCP 22 POS 3mm ST Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 22Number of Rows = Dual3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector PLUG & SOCKET HOUSING, RECEPTACLE, NYLON Crimp housing Pitch3 mm Poles 2 x 11 MATE-N-LOK Micro, 2-794617-2, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 2 行 3mm 节距 22 路 直 母 电缆安装 压接连接器外壳 22POS,MICRO MNL,RCPT HSG

¥3.4041
详情
