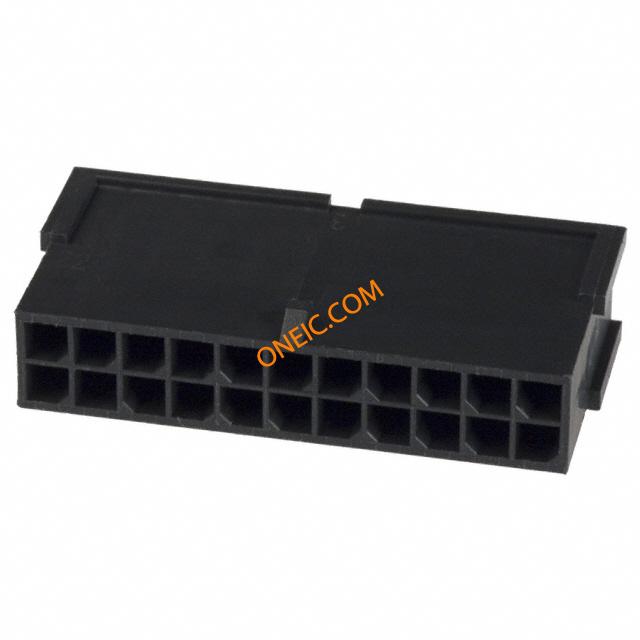

点击放大查看
2-794616-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 22 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN PLUG 3MM 22POS DL MATE-N-L Pin & Socket Connectors PLUG DUAL F.H. 22P free hanging Conn Housing PL 22 POS 3mm ST Product Highlights:HousingHousing Type = PlugAccepts Contact Type = PinNumber of Positions = 22Number of Rows = 2Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector |
| 分类 |
商业参数
| 其他名称 | A30279 | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 250 V | 最大额定电流 | 5 A |
机械参数
| 颜色 | Black | 间距 | 3 mm |
| 包装方式 | Bulk | 导线线规 | (20-24)/(26-30) AWG |
| 排间距 | 0.118" (3.00mm) | 触头类型 | Male Pin |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Plug | 紧固类型 | Locking Ramp |
| 安装样式 | Free Hanging | 排数 | 2 |
| 封装形式 | Plug | 触头材料 | Brass |
| 壳体材料 | Nylon | 总长度 | 3.00 [0.118] |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 触点数 | 22 | 接触件端接 | Crimp |
| 位数 | 22 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | Mate-N-Lok |
| 产品子类型 | Housing | ||
