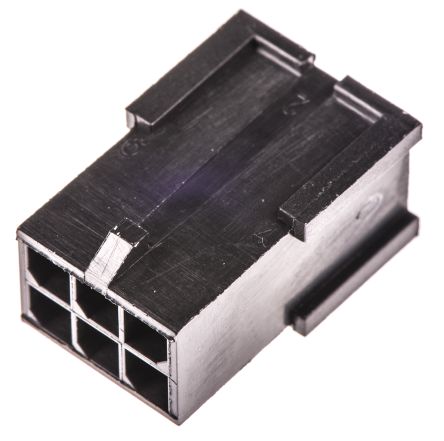

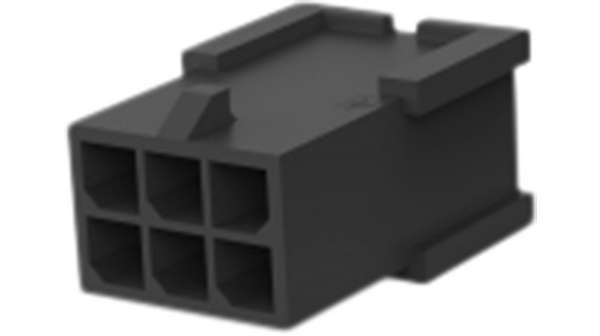

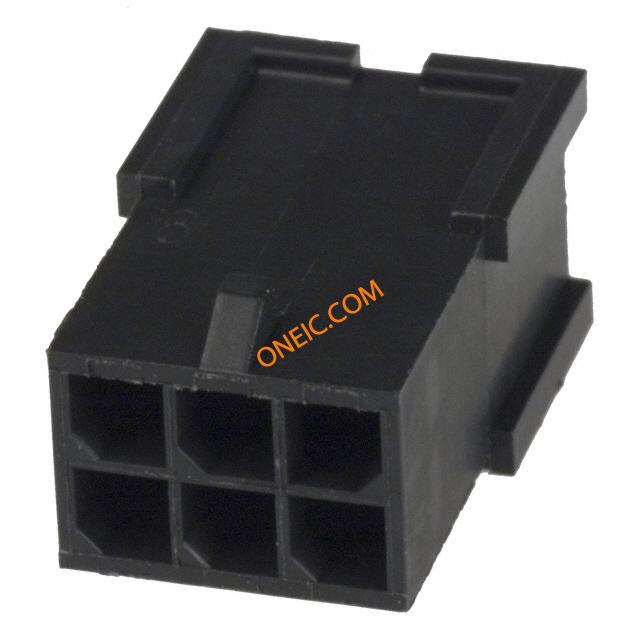

794616-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 6 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN PLUG 3MM 6POS DL MATE-N-LOK Housing,plug,micro Mate-n-lok,2 row,6Way Pin & Socket Connectors PLUG DUAL F.H. 6P free hanging Conn Housing PL 6 POS 3mm ST Product Highlights:HousingHousing Type = PlugNumber of Positions = 6Number of Rows = DualMount Type = Free HangingSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector CONNECTOR HOUSING, PLUG, 6 WAY, NYLON PLUG & SOCKET HOUSING, PLUG, NYLON SoftShellHousing;Nylon;Black;0.118in.;FreeHanging;Plug;6;UL94V-0 Crimp housing Pitch3 mm Poles 6 MATE-N-LOK Micro, 794616-6, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 2 行 3mm 节距 6 路 直 公 压接连接器外壳 FREE HANG DBL ROW HSG 6 POS |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 5 A |
机械参数
| 颜色 | Black | 深度 | 16.89mm |
| 间距 | 3 mm | 重量 | 0.085 |
| 材料（通用） | :Nylon | 包装方式 | Bulk |
| 导线线规 | (20-24)/(26-30) AWG | 排间距 | 0.118" (3.00mm) |
| 触头类型 | Male Pin | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Plug |
| 紧固类型 | Locking Ramp | 安装样式 | Free Hanging |
| 排数 | 2 | 封装形式 | Plug |
| 触头材料 | Brass | 线缆终端 | :Free Hanging |
| 壳体材料 | Nylon | 总长度 | 3.00 [0.118] |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 连接器颜色 | :Black | 触点数 | 6 |
| 接触件端接 | Crimp | 位数 | 6 |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | MATE-N-LOK |
| 产品子类型 | Housing | 适用产品/相关产品 | Centerline Soft Shell Pin & Socket Connector |
文档与媒体
相关型号
794608-3
te connectivity / amp
Contact PIN Crimp ST Cable Mount T/R 3mm Centerline, 250V, 5 A max. CONN PIN 20-24AWG GOLD CRIMP Pin & Socket Connectors PIN CONTACT 24-20 Contact PIN Crimp ST Cable Mount T/R Product Highlights:ContactContact Type = PlugWire Range = 0.20-0.60² [24-20] mm [AWG]Gold (30) Contact Mating Area Plating MaterialStripSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector PIN CONT 20-24 30 GOLD STRIP
794609-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount T/R 3mm Centerline, 250V, 5 A max. CONN PIN 26-30AWG TIN CRIMP Pin & Socket Connectors PIN CONTACT 26-30 3mm Centerline, 250V, 5 A max. Product Highlights:ContactContact Type = PinWire Range = 0.05-0.15 [30-26] mm [AWG]Bright Tin-Lead Contact Mating Area Plating MaterialPackaging Method = StripSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
794613-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece 3mm Centerline, 250V, 5 A max. CONN PIN 26-30AWG TIN CRIMP Pin & Socket Connectors PIN 26-30 AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = PlugWire Range = 0.05-0.15 [30-26] mm [AWG]Bright Tin-Lead Contact Mating Area PlatingLoose PieceSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector PIN CONT 26-30 TIN PLATE L/P
794617-6
te connectivity / amp

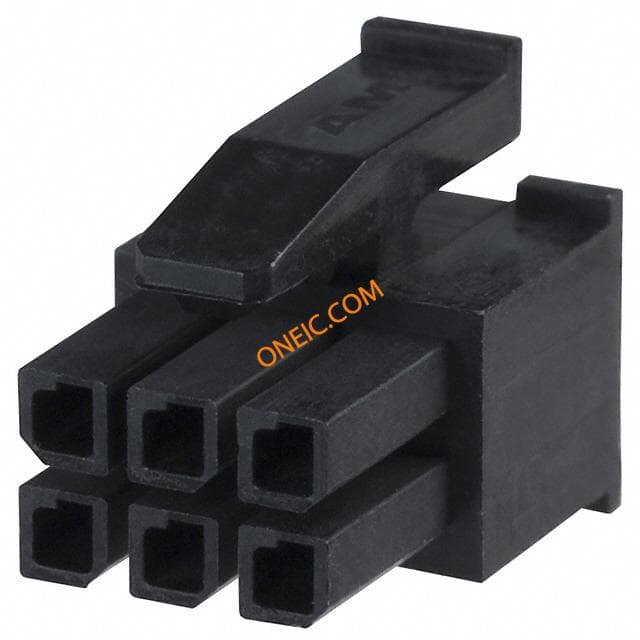

Conn Housing RCP 6 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RCPT 3MM 6POS DL MATE-N-L 6 way 2 row receptacle Mate-N-Lok Pin & Socket Connectors RECPT DUAL ROW 6P Conn Housing RCP 6 POS 3mm ST Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 6Number of Rows = Dual3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector HOUSING, RECEPTACLE, 2 ROW, 6 WAY, NYLON Connector,SoftShell;Nylon;Receptacle;Black;6;Dual;0.118in.;UL94V-0 Plug; wire-board; female; PIN:6; w/o terminals; 3mm; for cable Crimp housing Pitch3 mm Poles 2 x 3 MATE-N-LOK Micro, 794617-6, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 2 行 3mm 节距 6 路 直 母 连接器外壳 6POS,MICRO MNL,RCPT HSG
