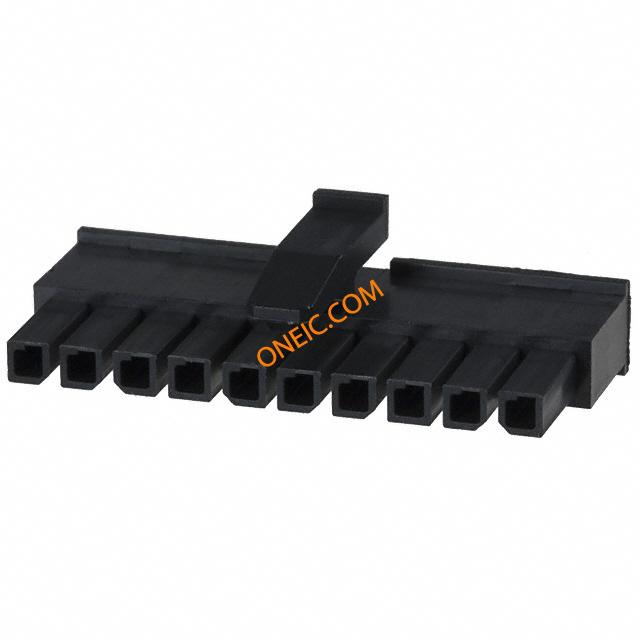

1-1445022-0

点击放大查看

1-1445022-0

制造商
TE Connectivity Ltd.
描述Conn Housing RCP 10 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RECEPT 3MM 10POS MATE-N-LOK Micro MATE-N-LOK Receptacle housing 10P Pin & Socket Connectors RECPT SINGLE ROW 10P 1-1445022-0 Conn Housing RCP 10 POS 3mm ST Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 10Number of Rows = Single3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector Connector,SoftShell;Nylon;Receptacle;Black;10;Single;0.118in. MICRO MNL RFECEPT HSG SINGLE R
分类
连接器解决方案矩形连接器电源混合矩形连接器
对参数有疑问？问 AI 助手

商业参数

其他名称A30266产品类别Pin & Socket Connectors
标准包装数量Bulk工厂包装数量1

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
零件状态E28476无铅定义Not relevant for lead free process
CSA档案号LR7189标准编号CSA, UL
RoHS/ELV合规状态RoHS compliant, ELV compliantUL阻燃等级UL 94V-0
认证机构标志已认证材料阻燃等级UL 94V-0

电气参数

额定电压600 V供电电压250
最大额定电流9.4A

机械参数

颜色Black间距3 mm
长度1.22in包装方式Bulk
壳体颜色黑色导线线规(20-24)/(26-30) AWG
端接方式Through Hole触头类型Female Socket
外壳颜色Black安装类型Straight
连接器类型Receptacle接触镀层Without
紧固类型Latch Lock安装样式Wire
排数1封装形式Receptacle
外壳材料（壳体）母端, 母端触头材料Phosphor Bronze
壳体材料Nylon包装数量1
端接样式Crimp第一触头极性Socket (Female)
触点数10接触件端接Crimp
位数10中心触点材料3.00 [0.118]
典型触点布局直插式

产品信息

备注Contacts Not Provided类型Housing
连接器性别RCP系列MATE-N-LOK
产品子类型Housing

环境参数

工作范围不密封测试温度标准件 - 非灼热丝
工作温度+105°C

文档与媒体

在线文档
1-1445022-0?RQPN=1-1445022-0
