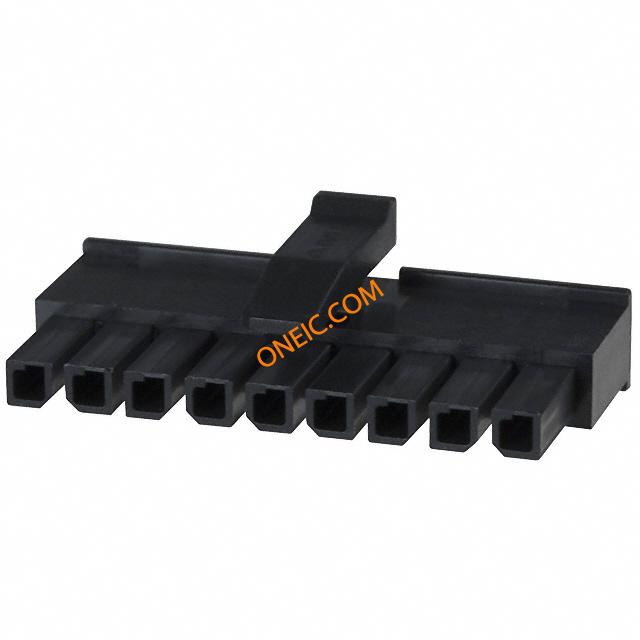

1445022-9

点击放大查看

1445022-9

制造商
TE Connectivity Ltd.
描述Conn Housing RCP 9 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RECEPT 3MM 9POS MATE-N-LOK Pin & Socket Connectors RECPT SINGLE ROW 9P Conn Housing RCP 9 POS 3mm ST Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 9Number of Rows = Single3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector MICRO MNL RFECEPT HSG SINGLE R
分类
连接器解决方案压接与焊接端子/接头压接端子（通用）
对参数有疑问？问 AI 助手

商业参数

其他名称A30265产品类别Pin & Socket Connectors
标准包装数量Bulk工厂包装数量1

合规参数

RoHSNot applicable / RoHS CompliantUL等级获得认可
零件状态E28476无铅定义Not relevant for lead free process
CSA档案号LR7189标准编号CSA, UL
RoHS/ELV合规状态RoHS compliant, ELV compliantUL阻燃等级UL 94V-0
认证机构标志已认证材料阻燃等级UL 94V-0

电气参数

额定电压250 V供电电压250
最大额定电流5 A

机械参数

颜色Black间距3 mm
包装方式Bulk壳体颜色黑色
导线线规(20-24)/(26-30) AWG触头类型Female Socket
外壳颜色Black安装类型Straight
连接器类型Receptacle接触镀层Without
紧固类型Latch Lock安装样式Wire
排数1封装形式Receptacle
外壳材料（壳体）母端, 母端触头材料Phosphor Bronze
壳体材料Nylon包装数量1
端接样式Crimp第一触头极性Socket (Female)
触点数9接触件端接Crimp
位数9中心触点材料3.00 [0.118]
典型触点布局直插式

产品信息

备注Contacts Not Provided类型Housing
连接器性别RCP系列Mate-N-Lok
产品子类型Housing

环境参数

工作范围不密封测试温度标准件 - 非灼热丝
工作温度-40 – 105 °C [ -40 – 221 °F ]

文档与媒体

在线文档
1445022-9?RQPN=1445022-9

相关型号

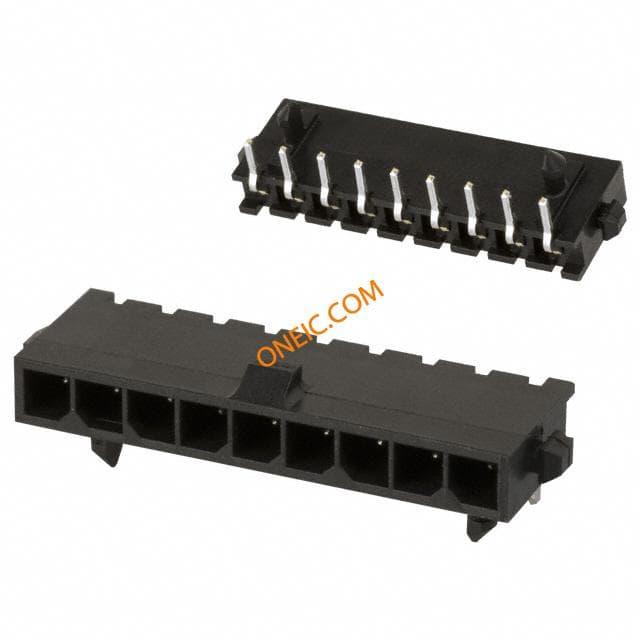

2-1445055-9

2-1445055-9

te connectivity / amp

Conn Power HDR 9 POS 3mm Solder RA Thru-Hole 9 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 9POS R/A TIN Pin & Socket Connectors HDR ASSY 9 POS R/A SINGLE ROW TIN 2-1445055-9 MICRO MNL HDR ASSY S/ROW LF

¥6.6744
详情

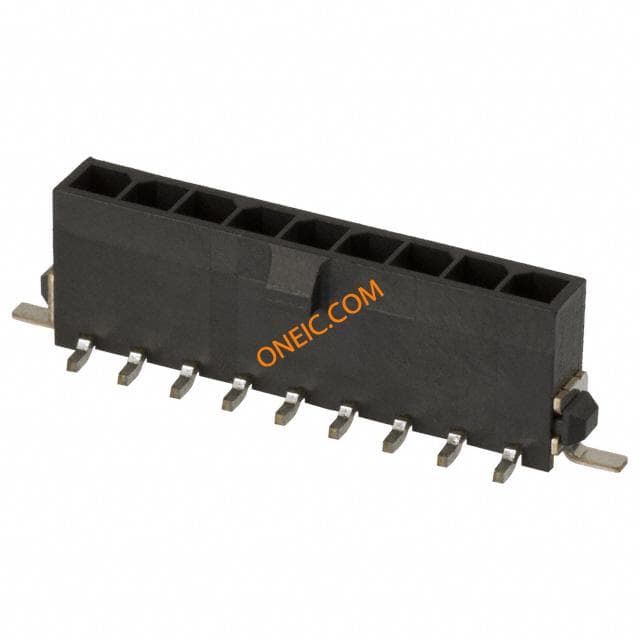

2-1445096-9

2-1445096-9

te connectivity / amp

Conn Power HDR 9 POS 3mm Solder ST SMD 9 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 9POS GOLD SMD Pin & Socket Connectors MICRO MNL HDR ASSY SINGLE ROW MICRO MNL HDR ASSY SINGLE ROW MICRO MNL HDR ASSY SINGLE ROW Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥6.7680
详情

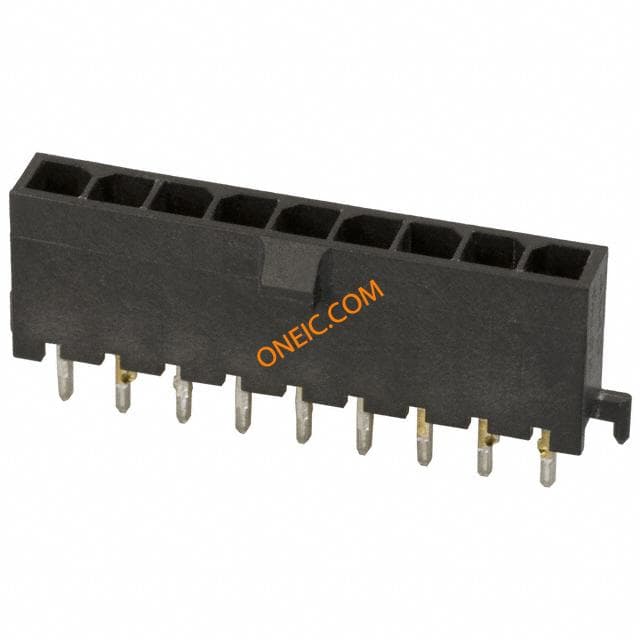

2-1445050-9

2-1445050-9

te connectivity / amp

Conn Power HDR 9 POS 3mm Solder ST Thru-Hole 9 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 9POS TIN T/H Pin & Socket Connectors HDR VERT 9 POS TIN SINGLE ROW Conn Power HDR 9 POS 3mm Solder ST Thru-Hole 9 Terminal 1 Port Product Highlights:HeaderConnector Type = Header - PinThrough Hole Contact Termination TypeNumber of Positions = 9Number of Rows = 1Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector MICRO MNL HDR ASSY S/ROW LF

¥4.3430
详情
2-1445091-9

2-1445091-9

te connectivity / amp

Conn Power HDR 9 POS 3mm Solder RA SMD 9 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 9POS R/A SMD 15GOLD Pin & Socket Connectors MICRO MNL HDR ASSY S/ROW AU LF Conn Power HDR 9 POS 3mm Solder RA SMD 9 Terminal 1 Port Product Highlights:ConnectorWith ContactsHousing Gender = Header - PinContact Gender = PinSurface Mount Contact Termination TypeSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector MICRO MNL HDR ASSY S/ROW AU LF

¥5.3280
详情

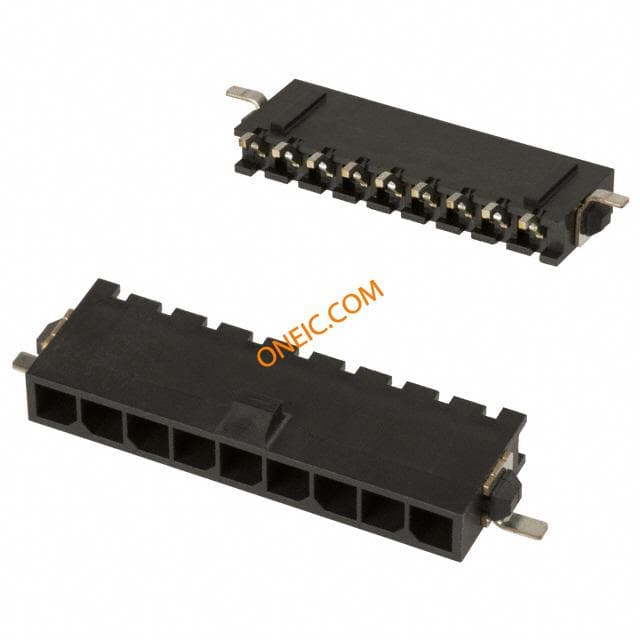

2-1445100-9
