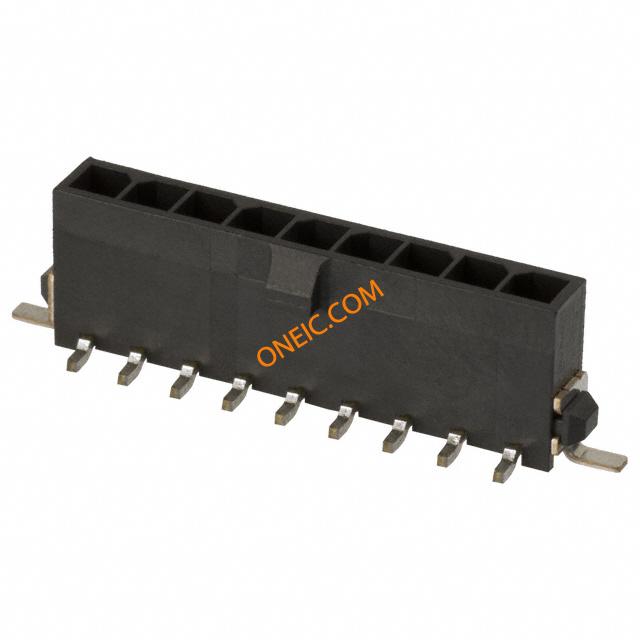

2-1445096-9

点击放大查看

2-1445096-9

制造商
TE Connectivity Ltd.
描述Conn Power HDR 9 POS 3mm Solder ST SMD 9 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 9POS GOLD SMD Pin & Socket Connectors MICRO MNL HDR ASSY SINGLE ROW MICRO MNL HDR ASSY SINGLE ROW MICRO MNL HDR ASSY SINGLE ROW Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
分类
工具与焊接解决方案压接钳、压接机、压力机压接钳
对参数有疑问？问 AI 助手

商业参数

标准包装规格210产品类别Pin & Socket Connectors
标准包装数量Tape & Reel工厂包装数量210

合规参数

RoHSLead free / RoHS Compliant无铅定义Reflow solder capable to 245°C, Reflow solder capable to 260°C
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

机械参数

颜色Black间距0.118" (3.00mm)
镀层Matte-Tin包装方式Tape & Reel (TR)
端接方式Solder触头类型Male Pin
极化Without外壳颜色Black
安装类型Vertical连接器类型Header, Shrouded
接触镀层Matte Tin紧固类型Locking Ramp
安装样式Surface Mount排数Single
触头材料Brass壳体材料Nylon
框架材料Phosphor Bronze位数9
中心触点材料3.00 [0.118]接触镀层厚度30µin (0.76µm)

产品信息

备注Vacuum pick-up button.产品子类型Header Assembly
加载位置数All

环境参数

温度额定值High

文档与媒体

在线文档
2-1445096-9?RQPN=2-1445096-9
