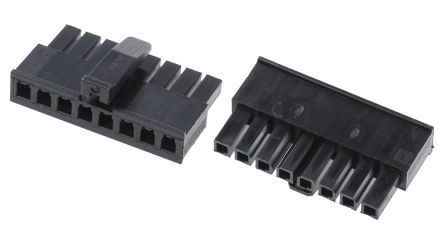

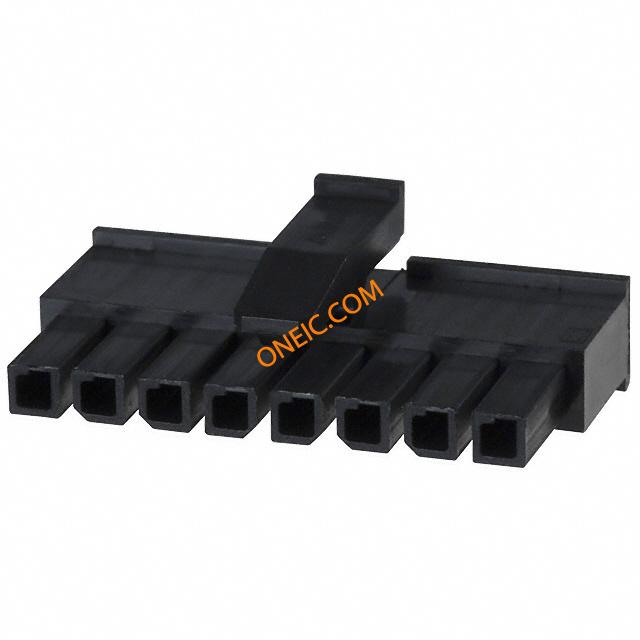

1445022-8

点击放大查看

1445022-8

制造商
TE Connectivity Ltd.
描述Conn Housing RCP 8 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RECEPT 3MM 8POS MATE-N-LOK Pin & Socket Connectors RECPT SINGLE ROW 8P Conn Housing RCP 8 POS 3mm ST Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 8Number of Rows = Single3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector Connector,SoftShell;Nylon;Receptacle;Black;8;Single;0.118in.;UL94V-0 TE Connectivity Micro MATE-N-LOK 系列 1 行 3mm 节距 8 路 直 母 电缆安装 压接连接器外壳 MICRO MNL RFECEPT HSG SINGLE R
分类
连接器解决方案矩形连接器电源混合矩形连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Pin & Socket Connectors标准包装数量Bulk
工厂包装数量1500

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
零件状态E28476无铅定义Not relevant for lead free process
CSA档案号LR7189标准编号CSA, UL
RoHS/ELV合规状态RoHS compliant, ELV compliantUL阻燃等级UL 94V-0
认证机构标志已认证材料阻燃等级UL 94V-0

电气参数

额定电压250 V供电电压250
最大额定电流5 A最小供电电压250VAC

机械参数

颜色Black深度14.04 mm
间距3 mm宽度8.7mm
高度8.7 mm长度25mm
包装方式Bulk壳体颜色黑色
导线线规(20-24)/(26-30) AWG方向直
触头类型Female Socket外壳颜色Black
安装类型Straight连接器类型Receptacle
接触镀层Without紧固类型Latch Lock
安装样式Wire排数1
封装形式Receptacle外壳材料（壳体）母端, 母端
触头材料Phosphor Bronze壳体材料Nylon
总长度25 mm包装数量1500
端接样式Crimp第一触头极性Socket (Female)
触点数8接触件端接Crimp
位数8中心触点材料3.00 [0.118]
典型触点布局直插式

产品信息

备注Contacts Not Provided类型Housing
连接器性别RCP系列Mate-N-Lok
产品子类型Housing适用产品/相关产品中心线软壳引脚及插座连接器

环境参数

工作范围不密封测试温度标准件 - 非灼热丝
工作温度-40C to 105C

文档与媒体

在线文档
TE.Connect?M=BYPN&C=1&PN=1445022-8&LG=1&I=13&button.x=28&button.y=12
在线文档
1445022-8?RQPN=1445022-8

相关型号

1445057-8

1445057-8

te connectivity / amp

Conn Power HDR 8 POS 3mm Solder RA SMD 8 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 8POS R/A TIN SMD Pin & Socket Connectors HDR ASSY 8 POS R/A SINGLE ROW TIN 3mm Centerline, 250V, 5 A max. Product Highlights:ConnectorHeaderPreloadedHeader Gender = PlugContact Gender = PinSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥5.9040
详情
1445049-8

1445049-8

te connectivity / amp

Conn Housing PL 8 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN PLUG 3MM 8POS MATE-N-LOK Pin & Socket Connectors PLUG SINGLE F.H. 8P free hanging Conn Housing PL 8 POS 3mm ST Product Highlights:ConnectorHousingNot PreloadedHousing Gender = PlugContact Gender = PinSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector FREE HANG SNGL ROW HSG 8 POS

¥1.5127
详情
1445093-8

1445093-8

te connectivity / amp

Conn Power HDR 8 POS 3mm Solder ST Thru-Hole 8 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 8POS GOLD T/H Pin & Socket Connectors HDR VERT 8 POS 30 AU SINGLE ROW MICRO MNL HDR ASSY SINGLE ROW MICRO MNL HDR ASSY SINGLE ROW Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥4.5360
详情
1445096-8

1445096-8

te connectivity / amp

Conn Power HDR 8 POS 3mm Solder ST SMD 8 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 8POS GOLD SMD Pin & Socket Connectors HDR VERT 8 POS 30 AU SINGLE ROW MICRO MNL HDR ASSY SINGLE ROW MICRO MNL HDR ASSY SINGLE ROW Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥7.4880
详情
1445048-8

1445048-8

te connectivity / amp

Conn Housing PL 8 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN PLUG 3MM 8POS MATE-N-LOK Pin & Socket Connectors PLUG SNGL PNL MNT 8P Conn Housing PL 8 POS 3mm ST Product Highlights:ConnectorHousingNot PreloadedHousing Gender = PlugContact Gender = PinSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector PANEL MT SNGL ROW HSG 8 POS

¥1.5127
详情

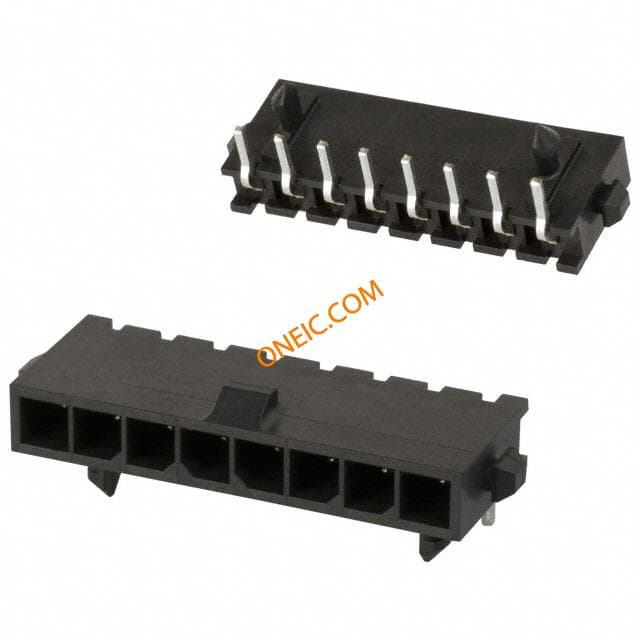

2-1445098-8

2-1445098-8

te connectivity / amp

Conn Power HDR 8 POS 3mm Solder RA Thru-Hole 8 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 8POS R/A GOLD Pin & Socket Connectors HDR ASSY 8 POS R/A SINGLE ROW 30 AU 3mm Centerline, 250V, 5 A max. Product Highlights:Header AssemblyNumber of Positions = 8Number of Rows = SingleRight Angle Mount AngleMount Style = Through-HoleSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector MICRO MNL HDR ASSY S/ROW AU LF

¥4.3920
详情
暂无图片

2-1445056-8

te connectivity / amp

Conn Power HDR 8 POS 3mm Solder RA SMD 8 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 8POS RT ANG SMD TIN Pin & Socket Connectors MICRO MNL HDR ASSY SINGLE ROW MICRO MNL HDR ASSY SINGLE ROW MICRO MNL HDR ASSY SINGLE ROW Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥5.0400
详情
2-1445096-8

2-1445096-8

te connectivity / amp

Conn Power HDR 8 POS 3mm Solder ST SMD 8 Terminal 1 Port Pin & Socket Connectors HDR VERT 8 POS 30 AU SINGLE ROW 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 8POS GOLD SMD 2-1445096-8 Conn Power HDR 8 POS 3mm Solder ST SMD 8 Terminal 1 Port Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥7.9920
详情

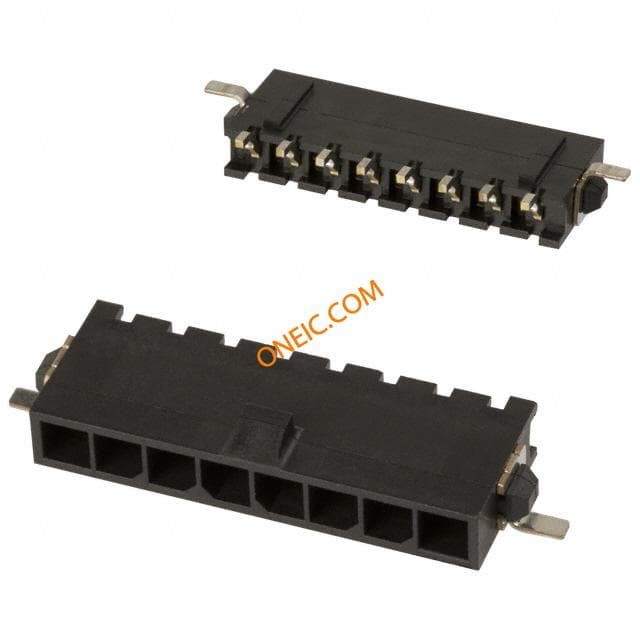

2-1445057-8

2-1445057-8

te connectivity / amp

Conn Power HDR 8 POS 3mm Solder RA SMD 8 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 8POS R/A TIN SMD Pin & Socket Connectors MICRO MNL HDR ASSY SINGLE ROW MICRO MNL HDR ASSY SINGLE ROW MICRO MNL HDR ASSY SINGLE ROW Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥6.7536
详情

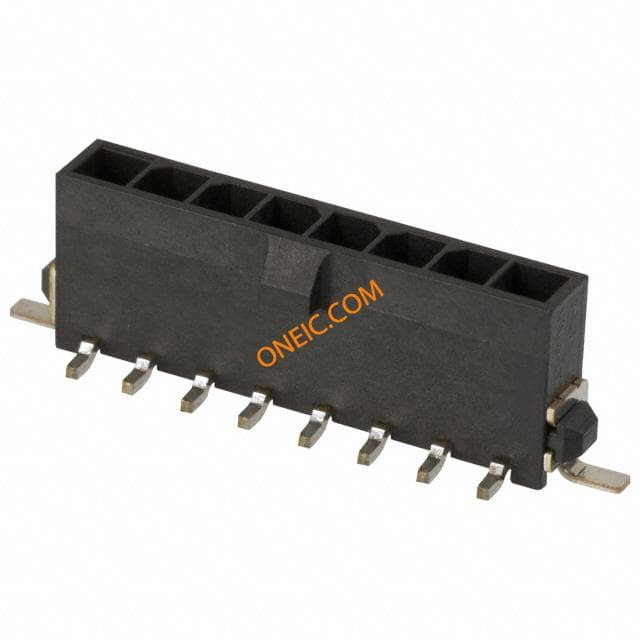

2-1445053-8
