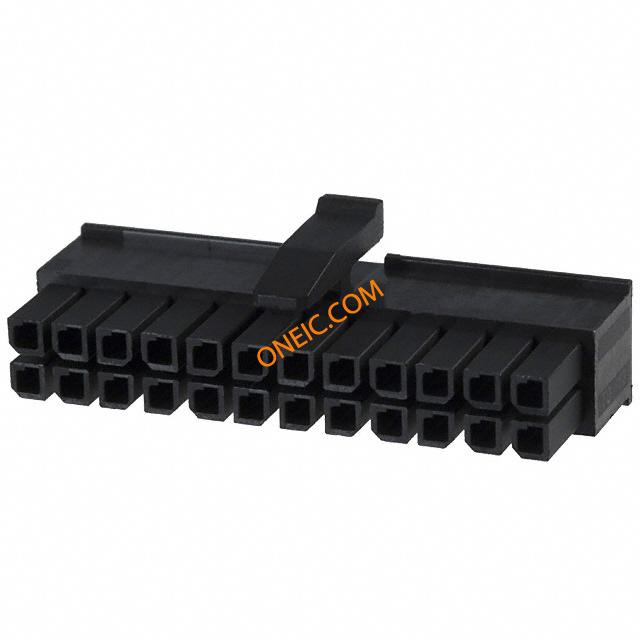

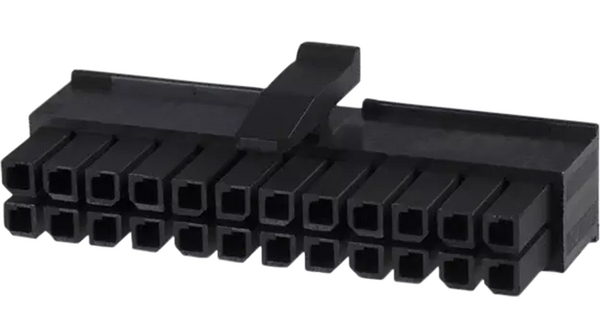

2-794617-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 24 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RCPT 3MM 24POS DL MATE-N-L 24 way 2 row receptacle Mate-N-Lok Pin & Socket Connectors RECPT DUAL ROW 24P Conn Housing RCP 24 POS 3mm ST Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 24Number of Rows = Dual3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector CONNECTOR HOUSING, RCPT, 24WAY, NYLON Connector,SoftShell;Nylon;Receptacle;Black;24;Dual;0.118in.;UL94V-0 Crimp housing Pitch3 mm Poles 2 x 12 MATE-N-LOK Micro, 2-794617-4, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 2 行 3mm 节距 24 路 直 母 压接连接器外壳 24POS,MICRO MNL,RCPT HSG |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | :CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 250 V | 接触电阻 | :20mohm |
| 击穿电压 | :1500V | 最大额定电流 | 5 A |
| 绝缘电阻 | :1000Mohm | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Black | 深度 | 14.04mm |
| 间距 | 3 mm | 宽度 | 11.7mm |
| 高度 | 11.7 mm | 长度 | 37mm |
| 重量 | 0.002 | 材料（通用） | :Nylon |
| 包装方式 | Bulk | 导线线规 | 20 AWG |
| 排间距 | 0.118" (3.00mm) | 触头类型 | Female Socket |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Receptacle | 紧固类型 | Latch Lock |
| 安装样式 | Wire | 排数 | 2 |
| 封装形式 | Receptacle | 触头材料 | Phosphor Bronze |
| 壳体材料 | Nylon | 总长度 | 3.00 [0.118] |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 连接器颜色 | :Black | 触点数 | 24 |
| 接触件端接 | Crimp | 位数 | 24 |
| 第一连接器安装类型 | :Socket | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | MATE-N-LOK |
| CAD图纸 | 3D CAD Model | 产品子类型 | Housing |
| 适用产品/相关产品 | Centerline Soft Shell Pin & Socket Connector | ||
环境参数
| 工作温度 | -40C to 105C | ||
文档与媒体
相关型号
2-794635-4
te connectivity / amp
Conn Power HDR 24 POS 3mm Solder ST SMD 24 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 24POS DL 30GOLD SMD Pin & Socket Connectors 24POS MICRO MNL ASSY VRT,SMT 24POS MICRO MNL ASSY,VRT,SMT 24POS MICRO MNL ASSY,VRT,SMT Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
5-794630-4
te connectivity / amp
Conn Power HDR 24 POS 3mm Solder ST Thru-Hole 24 Terminal 1 Port Pin & Socket Connectors HDR VERT 24 POS TIN DUAL 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 24POS DUAL TIN TE Connectivity MATE-N-LOK Series 3mm Pitch 24 Way Straight Heavy Duty Power Connector, Solder Termination, 5A Conn Power HDR 24 POS 3mm Solder ST Thru-Hole 24 Terminal 1 Port Product Highlights:Header AssemblyNumber of Positions = 24Number of Rows = DualVertical Mount AngleMount Style = Through-HoleSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector HEADER, 2ROW, 24WAY 24WD/ROWPINHDRVERT Pin header Pitch3 mm Poles 24 Contact DesignMale MATE-N-LOK, 5-794630-4, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 3mm节距 24路 直 PCB 针座, 焊接端接, 5A , 通孔 24P MICRO MNL ASSY,VRT,HDR,LF

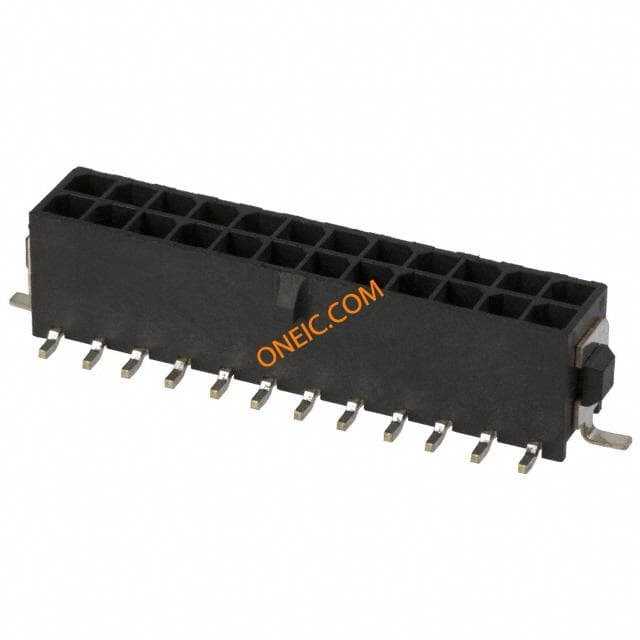

2-794638-4
te connectivity / amp
Conn Power HDR 24 POS 3mm Solder ST SMD 24 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 24POS DUAL GOLD SMD Power to the Board HDR ASSY 24 POS 30AU VERT SMT 24POS MICRO MNL ASSY,VRT,SMT 24POS MICRO MNL ASSY,VRT,SMT Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
5-794638-4
te connectivity / amp
Conn Power HDR 24 POS 3mm Solder ST SMD 24 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 24POS DUAL GOLD SMD Power to the Board HDR ASSY 24 POS 30AU VERT SMT Conn Power HDR 24 POS 3mm Solder ST SMD 24 Terminal 1 Port Product Highlights:Header AssemblyNumber of Positions = 24Number of Rows = DualVertical Mount AngleSurface Mount Contact Termination TypeSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector 24P MICRO MNL ASSY,VRT,SMT,LF
2-794678-4
te connectivity / amp
Conn Power HDR 24 POS 3mm Solder RA Thru-Hole 24 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 24POS DL R/A 15GOLD Pin & Socket Connectors 24POS MICRO MNL ASSY R/A,THRU 24POS MICRO MNL ASSY,R/A,THRU 24POS MICRO MNL ASSY,R/A,THRU Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

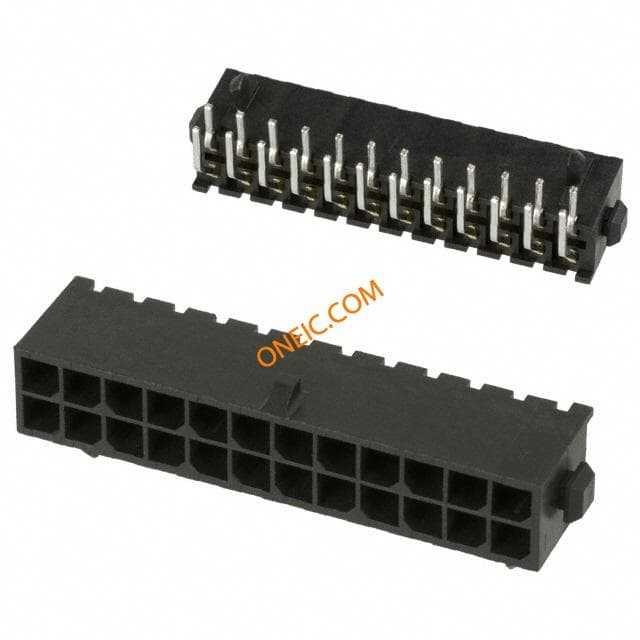

5-794620-4
te connectivity / amp
Conn Power HDR 24 POS 3mm Solder RA Thru-Hole 24 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 24POS DUAL R/A GOLD Pin & Socket Connectors HDR ASSY 24P R/A 30 AU 24P MICRO MNL ASSY,R/A,HDR,LF 24P MICRO MNL ASSY,R/A,HDR,LF Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

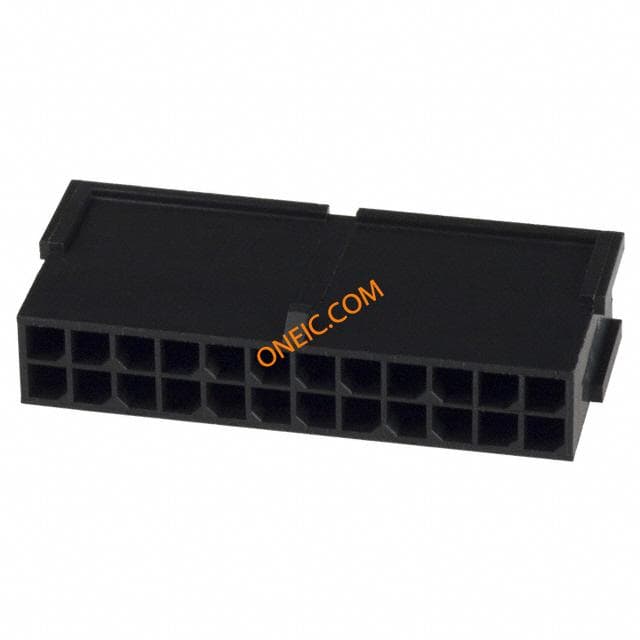

2-794616-4
te connectivity / amp
Conn Housing PL 24 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN PLUG 3MM 24POS DL MATE-N-L Pin & Socket Connectors PLUG DUAL F.H. 24P free hanging Conn Housing PL 24 POS 3mm ST Product Highlights:HousingHousing Type = PlugNumber of Positions = 24Number of Rows = DualMount Type = Free HangingSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector SoftShellHousing;Nylon;Black;0.118in.;FreeHanging;Plug;24;UL94V-0 FREE HANG DBL ROW HSG 24 POS
2-794628-4
te connectivity / amp
Conn Power HDR 24 POS 3mm Solder RA SMD 24 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADR 24POS DL R/A GOLD SMD Pin & Socket Connectors 24POS MICRO MNL ASSY R/A,SMT 24POS MICRO MNL ASSY,R/A,SMT 24POS MICRO MNL ASSY,R/A,SMT Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
2-794621-4
te connectivity / amp
Conn Power HDR 24 POS 3mm Solder RA SMD 24 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 24POS DL R/A TIN SMD 3mm Centerline, 250V, 5 A max. Product Highlights:Header AssemblyNumber of Positions = 24Number of Rows = DualRight Angle Mount AngleMount Style = Surface MountSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
2-794623-4
te connectivity / amp
Conn Power HDR 24 POS 3mm Solder RA SMD 24 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADR 24POS DL R/A 30AU SMD 24POS MICRO MNL ASSY,R/A,SMT 24POS MICRO MNL ASSY,R/A,SMT Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

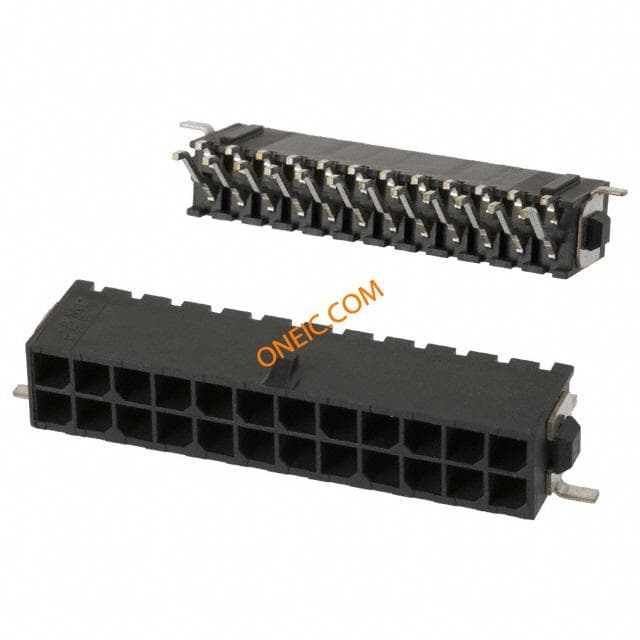

2-794627-4
te connectivity / amp
Conn Power HDR 24 POS 3mm Solder RA SMD 24 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HDR 24POS DUAL R/A TIN SMD Conn Power HDR 24 POS 3mm Solder RA SMD 24 Terminal 1 Port Product Highlights:HeaderConnector Type = Header - PinSurface Mount Contact Termination TypeNumber of Positions = 24Number of Rows = 2Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
2-794681-4
te connectivity / amp
Conn Power HDR 24 POS 3mm Solder ST Thru-Hole 24 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 24POS DL VERT 15GOLD
2-794625-4
te connectivity / amp
Conn Power HDR 24 POS 3mm Solder RA SMD 24 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADR 24POS DL R/A 15AU SMD 24POS MICRO MNL ASSY,R/A,SMT 24POS MICRO MNL ASSY,R/A,SMT Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
2-794634-4
te connectivity / amp
Conn Power HDR 24 POS 3mm Solder ST SMD 24 Terminal 1 Port Pin & Socket Connectors 24POS MICRO MNL ASSY VRT,SMT 3mm Centerline, 250V, 5 A max. CONN HEADER 24POS DL 15GOLD SMD 24POS MICRO MNL ASSY,VRT,SMT 24POS MICRO MNL ASSY,VRT,SMT Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
2-794633-4
te connectivity / amp
Conn Power HDR 24 POS 3mm Solder ST SMD 24 Terminal 1 Port Pin & Socket Connectors 24POS MICRO MNL ASSY VRT,SMT 3mm Centerline, 250V, 5 A max. CONN HEADER 24POS DUAL TIN SMD 3mm Centerline, 250V, 5 A max. Product Highlights:Header AssemblyNumber of Positions = 24Number of Rows = DualVertical Mount AngleMount Style = Surface MountSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
2-794677-4
te connectivity / amp
Conn Power HDR 24 POS 3mm Solder RA Thru-Hole 24 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 24POS DL R/A TIN T/H 24POS MICRO MNL ASSY,R/A,THRU 24POS MICRO MNL ASSY,R/A,THRU Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
5-794636-4
te connectivity / amp
Conn Power HDR 24 POS 3mm Solder ST SMD 24 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 24POS DUAL TIN SMD Power to the Board HDR ASSY 24 POS TIN VERT SMT 24P MICRO MNL ASSY,VRT,SMT,LF 24P MICRO MNL ASSY,VRT,SMT,LF Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

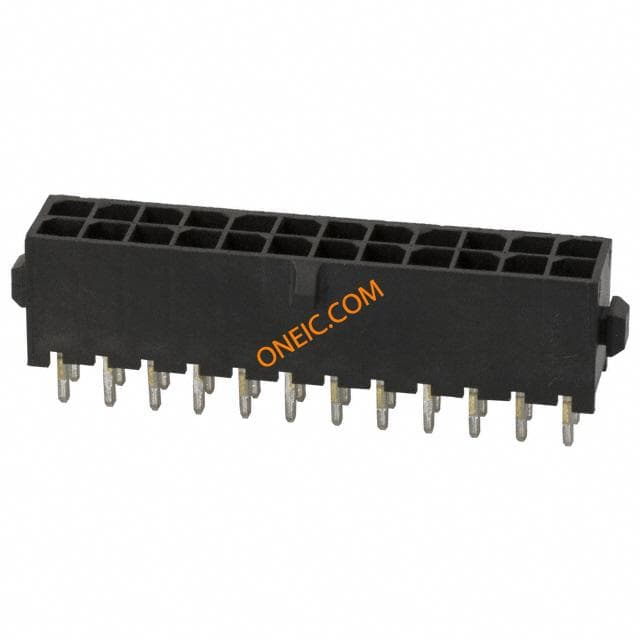

2-794632-4
