1445022-7

点击放大查看

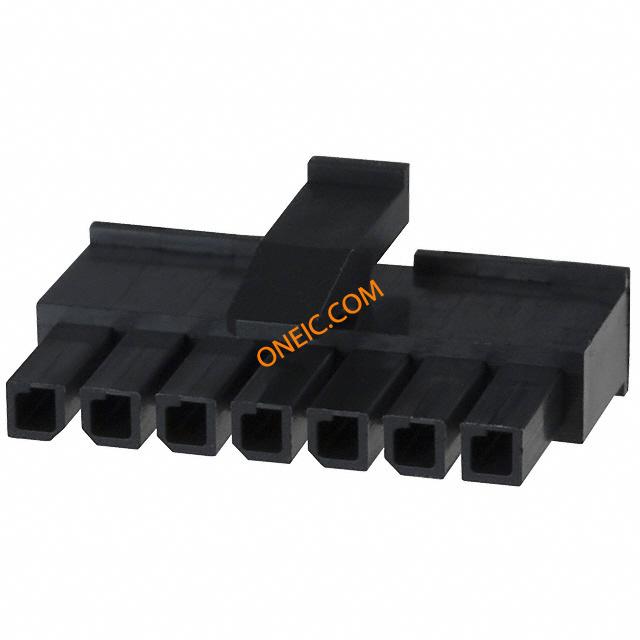

1445022-7

制造商
TE Connectivity Ltd.
描述Conn Housing RCP 7 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RECEPT 3MM 7POS MATE-N-LOK Pin & Socket Connectors RECPT SINGLE ROW 7P Conn Housing RCP 7 POS 3mm ST Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 7Number of Rows = Single3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector MICRO MNL RFECEPT HSG SINGLE R
分类
连接器解决方案压接与焊接端子/接头压接端子（通用）
对参数有疑问？问 AI 助手

商业参数

产品类别Pin & Socket Connectors标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
零件状态E28476无铅定义Not relevant for lead free process
CSA档案号LR7189标准编号CSA, UL
RoHS/ELV合规状态RoHS compliant, ELV compliantUL阻燃等级UL 94V-0
认证机构标志已认证材料阻燃等级UL 94V-0

电气参数

额定电压250 V供电电压250
最大额定电流5 A

机械参数

颜色Black间距3 mm
包装方式Bulk壳体颜色黑色
导线线规(20-24)/(26-30) AWG触头类型Female Socket
外壳颜色Black安装类型Straight
连接器类型Receptacle接触镀层Without
紧固类型Latch Lock安装样式Wire
排数1封装形式Receptacle
外壳材料（壳体）母端, 母端触头材料Phosphor Bronze
壳体材料Nylon包装数量2000
端接样式Crimp第一触头极性Socket (Female)
触点数7接触件端接Crimp
位数7中心触点材料3.00 [0.118]
典型触点布局直插式

产品信息

备注Contacts Not Provided类型Housing
连接器性别RCP系列Mate-N-Lok
产品子类型Housing

环境参数

工作范围不密封测试温度标准件 - 非灼热丝
工作温度-40 – 105 °C [ -40 – 221 °F ]

相关型号

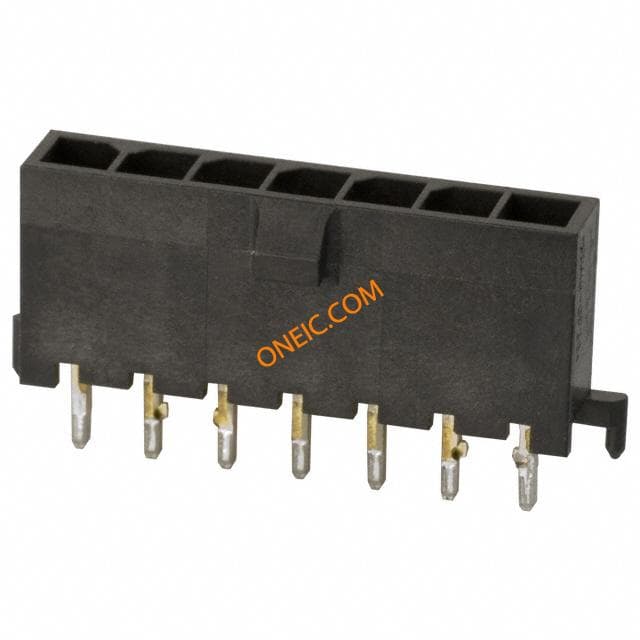

2-1445050-7

2-1445050-7

te connectivity / amp

Conn Power HDR 7 POS 3mm Solder ST Thru-Hole 7 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 7POS TIN T/H Pin & Socket Connectors MICRO MNL HDR ASSY S/ROW LF Conn Power HDR 7 POS 3mm Solder ST Thru-Hole 7 Terminal 1 Port Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector MICRO MNL HDR ASSY S/ROW LF

¥4.4880
详情

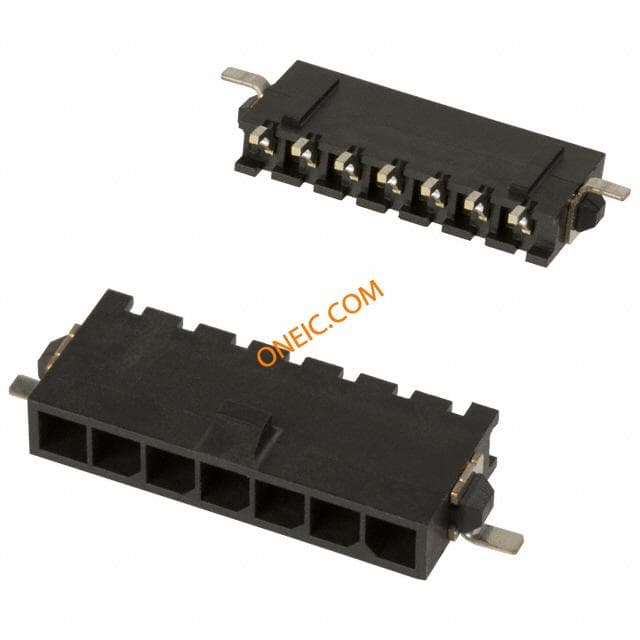

2-1445057-7

2-1445057-7

te connectivity / amp

Conn Power HDR 7 POS 3mm Solder RA SMD 7 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 7POS R/A TIN SMD Pin & Socket Connectors HDR ASSY 7 POS R/A SINGLE ROW TIN Conn Power HDR 7 POS 3mm Solder RA SMD 7 Terminal 1 Port Product Highlights:Header AssemblyNumber of Positions = 7Number of Rows = SingleRight Angle Mount AngleMount Style = Surface MountSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector MICRO MNL HDR ASSY SINGLE ROW

¥5.3931
详情
暂无图片

2-1445052-7

te connectivity / amp

Conn Power HDR 7 POS 3mm Solder ST SMD 7 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 7POS VERT SMD TIN MICRO MNL HDR ASSY S/ROW LF MICRO MNL HDR ASSY S/ROW LF Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥5.3040
详情
1445056-7

1445056-7

te connectivity / amp

Conn Power HDR 7 POS 3mm Solder RA SMD 7 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 7POS R/A TIN SMD Pin & Socket Connectors MICRO MNL HDR ASSY MICRO MNL HDR ASSY SINGLE ROW MICRO MNL HDR ASSY SINGLE ROW Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥5.1000
详情
1445051-7

1445051-7

te connectivity / amp

Conn Power HDR 7 POS 3mm Solder ST Thru-Hole 7 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 7POS VERT TIN T/H Pin & Socket Connectors MICRO MNL HDR ASSY SINGLE ROW MICRO MNL HDR ASSY SINGLE ROW MICRO MNL HDR ASSY SINGLE ROW Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥3.8760
详情
暂无图片

2-1445087-7

te connectivity / amp

Conn Power HDR 7 POS 3mm Solder ST SMD 7 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 7POS VERT SMD 15GOLD MICRO MNL HDR ASSY S/ROW AU LF MICRO MNL HDR ASSY S/ROW AU LF Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥5.3040
详情
暂无图片

2-1445089-7

te connectivity / amp

Conn Power HDR 7 POS 3mm Solder RA Thru-Hole 7 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 7POS R/A T/H 15GOLD MICRO MNL HDR ASSY S/ROW AU LF MICRO MNL HDR ASSY S/ROW AU LF Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥3.4000
详情
暂无图片

2-1445094-7

te connectivity / amp

Conn Power HDR 7 POS 3mm Solder ST Thru-Hole 7 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 7POS VERT T/H 30GOLD MICRO MNL HDR ASSY S/ROW AU LF MICRO MNL HDR ASSY S/ROW AU LF Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥4.2160
详情
1445084-7

1445084-7

te connectivity / amp

Conn Power HDR 7 POS 3mm Solder ST Thru-Hole 7 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 7POS STR 15GOLD T/H Pin & Socket Connectors MICRO MNL HDR ASSY SINGLE ROW MICRO MNL HDR ASSY SINGLE ROW MICRO MNL HDR ASSY SINGLE ROW Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥3.8760
详情
1445096-7

1445096-7

te connectivity / amp

Conn Power HDR 7 POS 3mm Solder ST SMD 7 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 7POS GOLD SMD Pin & Socket Connectors MICRO MNL HDR ASSY MICRO MNL HDR ASSY SINGLE ROW MICRO MNL HDR ASSY SINGLE ROW Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥6.1200
详情
1445100-7

1445100-7

te connectivity / amp

Conn Power HDR 7 POS 3mm Solder RA SMD 7 Terminal 1 Port Pin & Socket Connectors HDR ASSY 7 POS R/A SINGLE ROW 30 AU 3mm Centerline, 250V, 5 A max. CONN HEADER 7POS R/A GOLD SMD MICRO MNL HDR ASSY SINGLE ROW MICRO MNL HDR ASSY SINGLE ROW Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥6.1200
详情
2-1445085-7

2-1445085-7

te connectivity / amp

Conn Power HDR 7 POS 3mm Solder ST Thru-Hole 7 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 7POS VERT T/H 15GOLD micro mnl hdr assy s/row au lf micro mnl hdr assy s/row au lf Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥3.4000
详情
暂无图片

2-1445095-7

te connectivity / amp

Conn Power HDR 7 POS 3mm Solder ST SMD 7 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 7POS VERT SMD 30GOLD MICRO MNL HDR ASSY S/ROW AU LF MICRO MNL HDR ASSY S/ROW AU LF Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥5.3040
详情
2-1445084-7

2-1445084-7

te connectivity / amp

Conn Power HDR 7 POS 3mm Solder ST Thru-Hole 7 Terminal 1 Port Pin & Socket Connectors micro mnl hdr assy s/row au lf 3mm Centerline, 250V, 5 A max. CONN HEADER 7POS VERT T/H 15GOLD micro mnl hdr assy s/row au lf micro mnl hdr assy s/row au lf Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥3.4000
详情
1445092-7

1445092-7

TE Connectivity / AMP

ピン & ソケットコネクタ MICRO MNL HDR ASSY 3mm Centerline, 250V, 5 A max. CONN HEADER 7POS R/A 15GOLD SMD Pin & Socket Connectors MICRO MNL HDR ASSY

¥4.2840
详情
1445086-7

1445086-7

TE Connectivity / AMP

Pin & Socket Connectors MICRO MNL HDR ASSY 3mm Centerline, 250V, 5 A max. CONN HEADER 7POS STR 15GOLD SMD MICRO MNL HDR ASSY SINGLE ROW MICRO MNL HDR ASSY SINGLE ROW Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥6.1200
详情
1445101-7

1445101-7

TE Connectivity / AMP

Pin & Socket Connectors MICRO MNL HDR ASSY 3mm Centerline, 250V, 5 A max. CONN HEADER 7POS R/A 30GOLD SMD

¥4.2840
详情

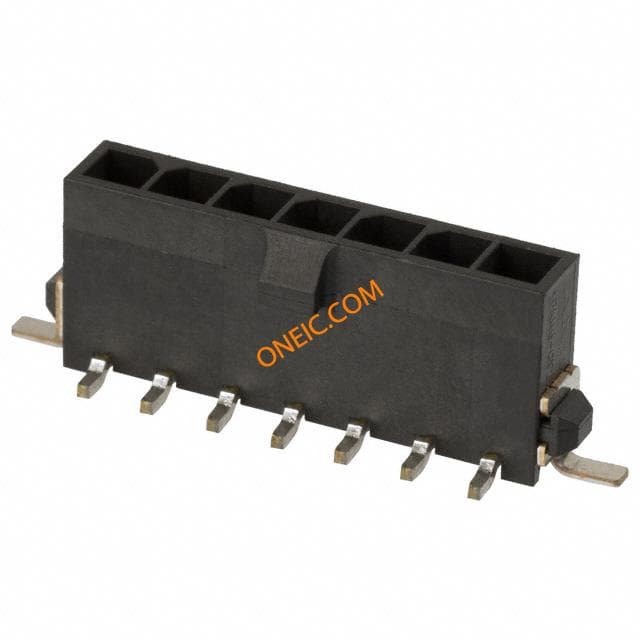

2-1445053-7
