794617-8

点击放大查看

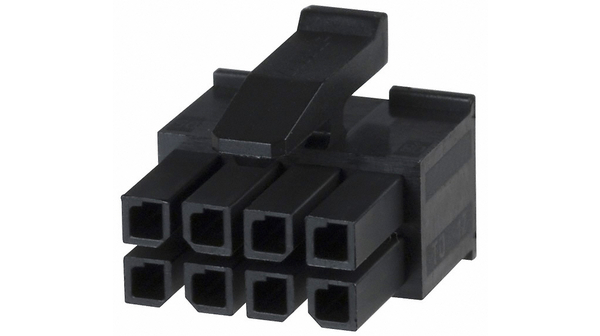

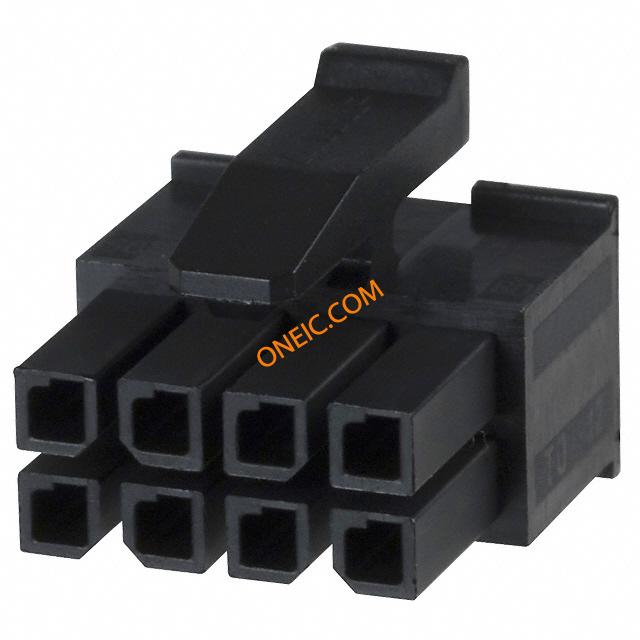

794617-8

制造商
TE Connectivity Ltd.
描述Conn Housing RCP 8 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RCPT 3MM 8POS DL MATE-N-L 8 way 2 row receptacle Mate-N-Lok Pin & Socket Connectors RECPT DUAL ROW 8P Conn Housing RCP 8 POS 3mm Crimp ST Cable Mount Conn Housing RCP 8 POS 3mm Crimp ST Cable Mount Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 8Number of Rows = Dual3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector HOUSING, RECEPTACLE, 8 WAY, NYLON Connector,SoftShell;Nylon;Receptacle;Black;8;Dual;0.118in.;UL94V-0 Plug; wire-board; female; PIN:8; w/o terminals; 3mm; for cable Crimp housing Pitch3 mm Poles 2 x 4 MATE-N-LOK Micro, 794617-8, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 2 行 3mm 节距 8 路 直 母 压接连接器外壳 8POS,MICRO MNL,RCPT HSG
分类
连接器解决方案矩形连接器FPC/FFC矩形连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Pin & Socket Connectors标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
无铅定义Not relevant for lead free process认证机构:CSA, UL
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

额定电压250 V工作电压:250V
最大额定电流5 A最小供电电压250VAC
连接器类型 - 电压输入w/o terminals

机械参数

颜色Black深度14.04mm
间距3 mm宽度11.7mm
高度11.7 mm长度13mm
重量0.081材料（通用）:Nylon
包装方式Bulk导线线规20 AWG
排间距0.118" (3.00mm)触头类型Female Socket
柱间距3mm外壳颜色Black
安装类型Straight连接器类型Receptacle
紧固类型Latch Lock安装样式Wire
排数2封装形式Receptacle
触头材料Phosphor Bronze壳体材料Nylon
总长度3.00 [0.118]包装数量1
连接器 - 电缆plug端接样式Crimp
第一触头极性Socket (Female)连接器颜色:Black
触点数8接触件端接Crimp
位数8第一连接器安装特征2x4

产品信息

SPG1备注Contacts Not Provided
类型Housing连接器性别RCP
系列MATE-N-LOKCAD图纸3D CAD Model
产品子类型Housing适配器系列Micro MATE-N-LOK
单元数量1适用产品/相关产品Centerline Soft Shell Pin & Socket Connector

环境参数

工作温度-40C to 105C

文档与媒体

PDF 文档
1650928.pdf
在线文档
TE.Connect?M=BYPN&C=1&PN=794617-8&LG=1&I=13&button.x=28&button.y=12
在线文档
794617-8?RQPN=794617-8

相关型号

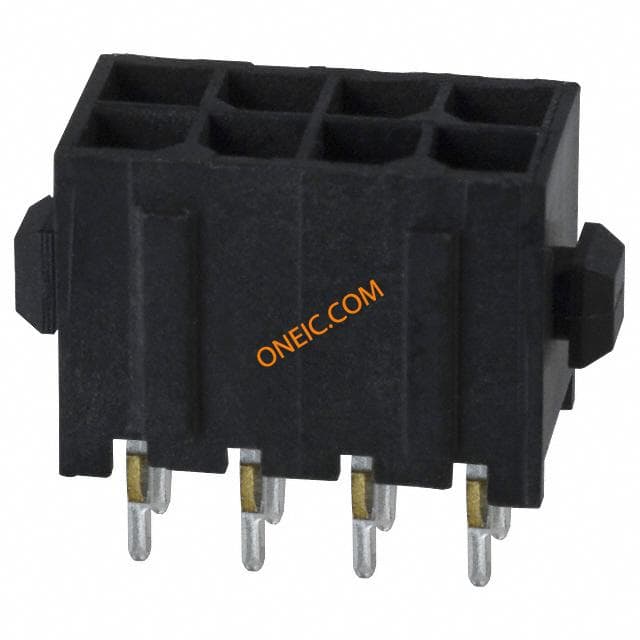

3-794632-8

3-794632-8

te connectivity / amp

Conn Power HDR 8 POS 3mm Solder ST Thru-Hole 8 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 8POS DUAL GOLD Power to the Board HDR VERT 8 POS 30 AU DUAL Conn Power HDR 8 POS 3mm Solder ST Thru-Hole 8 Terminal 1 Port Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector PLUG & SOCKET CONNECTOR, HEADER 8POS 3MM TE Connectivity Micro MATE-N-LOK 系列 3mm节距 8路 (2排) 直 PCB 针座, 焊接端接, 5A , 通孔 08P MICRO MNL ASSY,VRT,HDR,LF

¥7.1561
详情
794632-8

794632-8

te connectivity / amp

Conn Power HDR 8 POS 3mm Solder ST Thru-Hole 8 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 8POS DUAL GOLD Power to the Board HDR VERT 8 POS 30 AU DUAL 3mm Centerline, 250V, 5 A max. Product Highlights:HeaderConnector Type = Header - PinThrough Hole Contact Termination Type8 PositionsNumber of Rows = 2Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥6.1920
详情

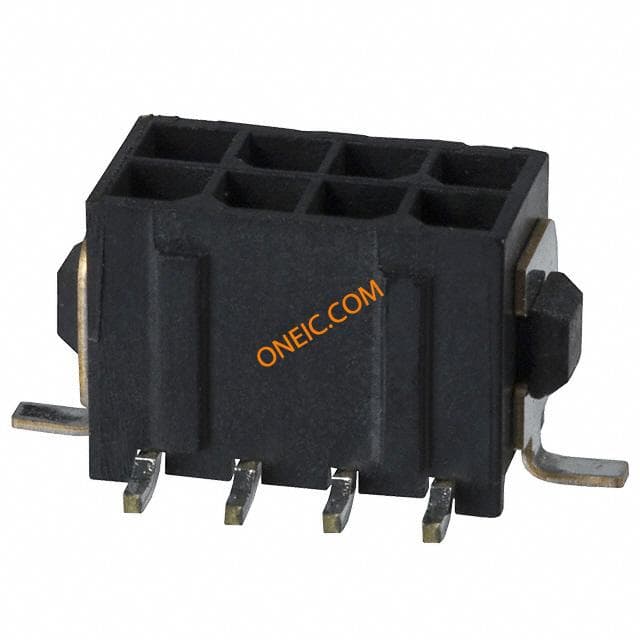

3-794638-8

3-794638-8

te connectivity / amp

Conn Power HDR 8 POS 3mm Solder ST SMD 8 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 8POS DUAL GOLD SMD Power to the Board HDR ASSY 8 POS 30 AU VERT SMT 3mm Centerline, 250V, 5 A max. Product Highlights:ConnectorConnector Type = Header - PinSurface Mount Contact Termination Type8 PositionsNumber of Rows = 2Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector 08P MICRO MNL ASSY,VRT,SMT,LF

¥8.1360
详情
暂无图片

794624-8

te connectivity / amp

Conn Power HDR 8 POS 3mm Solder RA SMD 8 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 8POS DL R/A TIN SMD Pin & Socket Connectors 8POS MICRO MNL ASSY R/A SMT 8POS MICRO MNL ASSY,R/A,SMT 8POS MICRO MNL ASSY,R/A,SMT Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥10.3277
详情
3-794630-8

3-794630-8

te connectivity / amp

Conn Power HDR 8 POS 3mm Solder ST Thru-Hole 8 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 8POS DUAL TIN TE Connectivity MATE-N-LOK Series 3mm Pitch 8 Way Straight Heavy Duty Power Connector, Solder Termination, 5A Pin & Socket Connectors HDR VERT 8 POS TIN DUAL Conn Power HDR 8 POS 3mm Solder ST Thru-Hole 8 Terminal 1 Port Product Highlights:Header AssemblyNumber of Positions = 8Number of Rows = DualVertical Mount AngleMount Style = Through-HoleSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector HEADER, VERTICAL, 3MM, DUAL ROW, 8 WAY 8WD/ROWPINHDRVERT Pin header Pitch3 mm Poles 8 Contact DesignMale MATE-N-LOK, 3-794630-8, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 3mm节距 8路 直 PCB 针座, 焊接端接, 5A , 通孔 08P MICRO MNL ASSY VRT HDR LF

¥3.1032
详情
794627-8

794627-8

te connectivity / amp

Conn Power HDR 8 POS 3mm Solder RA SMD 8 Terminal 1 Port Pin & Socket Connectors HDR ASSY 8P TIN 3mm Centerline, 250V, 5 A max. CONN HDR 8POS DUAL R/A TIN SMD 8POS MICRO MNL ASSY,R/A,SMT 8POS MICRO MNL ASSY,R/A,SMT Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥7.5600
详情
794679-8

794679-8

te connectivity / amp

Conn Power HDR 8 POS 3mm Solder RA Thru-Hole 8 Terminal 1 Port Pin & Socket Connectors 8POS MICRO MNL ASSY R/A THRU 3mm Centerline, 250V, 5 A max. CONN HEADER 8POS DL R/A 30GOLD 8POS MICRO MNL ASSY,R/A,THRU 8POS MICRO MNL ASSY,R/A,THRU Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥7.9200
详情
暂无图片

794677-8

te connectivity / amp

Conn Power HDR 8 POS 3mm Solder RA Thru-Hole 8 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 8POS DL R/A TIN T/H Pin & Socket Connectors 8POS MICRO MNL ASSY R/A THRU 3mm Centerline, 250V, 5 A max. Product Highlights:Header AssemblyNumber of Positions = 8Number of Rows = DualRight Angle Mount AngleMount Style = Through-HoleSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥6.8558
详情
暂无图片

794680-8

te connectivity / amp

Conn Power HDR 8 POS 3mm Solder ST Thru-Hole 8 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 8POS DUAL VERT TIN Pin & Socket Connectors 8POS MICRO MNL ASSY VRT THRU 3mm Centerline, 250V, 5 A max. Product Highlights:Header AssemblyNumber of Positions = 8Number of Rows = DualVertical Mount AngleMount Style = Through-HoleSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥5.1088
详情
794637-8

794637-8

te connectivity / amp

Conn Power HDR 8 POS 3mm Solder ST SMD 8 Terminal 1 Port Pin & Socket Connectors 8POS MICRO MNL ASSY 5250 3mm Centerline, 250V, 5 A max. CONN HEADER 8POS DL 15GOLD SMD 3mm Centerline, 250V, 5 A max. Product Highlights:Header AssemblyNumber of Positions = 8Number of Rows = DualVertical Mount AngleMount Style = Surface MountSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥8.2800
详情

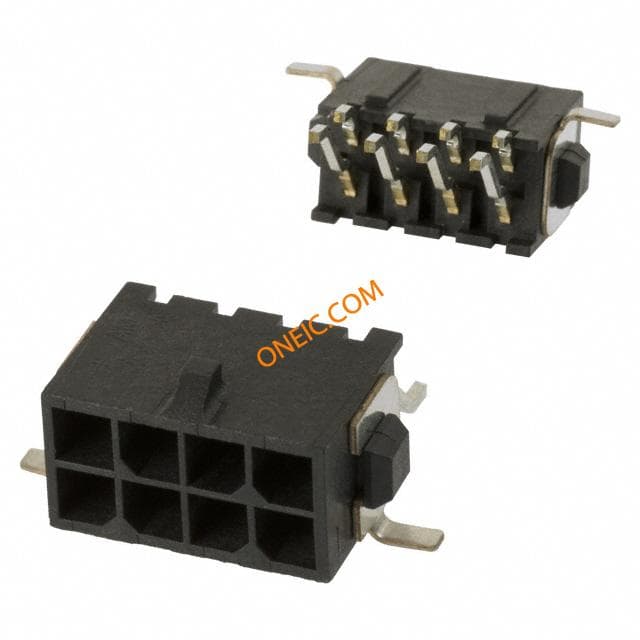

3-794627-8

3-794627-8

te connectivity / amp

Conn Power HDR 8 POS 3mm Solder RA SMD 8 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HDR 8POS DUAL R/A TIN SMD Pin & Socket Connectors HDR ASSY 8P TIN R/A SMT 3mm Centerline, 250V, 5 A max. Product Highlights:Header AssemblyNumber of Positions = 8Number of Rows = DualRight Angle Mount AngleMount Style = Surface MountSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector 08P MICRO MNL ASSY, RA, SMT, L

¥6.7680
详情
暂无图片

794619-8

te connectivity / amp

Conn Power HDR 18 POS 3mm Solder RA Thru-Hole 18 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 8POS DL R/A 15GOLD Pin & Socket Connectors 8POS MICRO MNL ASSY R/A HDR 3mm Centerline, 250V, 5 A max. Product Highlights:Header AssemblyNumber of Positions = 8Number of Rows = DualRight Angle Mount AngleThrough Hole Contact Termination TypeSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥4.8679
详情
794636-8

794636-8

te connectivity / amp

Conn Power HDR 8 POS 3mm Solder ST SMD 8 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 8POS DUAL TIN SMD Pin & Socket Connectors HDR ASSY 8 POS TIN 8POS MICRO MNL ASSY,VRT,SMT 8POS MICRO MNL ASSY,VRT,SMT Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥17.1288
详情
3-794629-8

3-794629-8

te connectivity / amp

Conn Power HDR 8 POS 3mm Solder RA SMD 8 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HDR 8POS DUAL R/A GOLD SMD Pin & Socket Connectors HDR ASSY 8P 30 AU R/A SMT Conn Power HDR 8 POS 3mm Solder RA SMD 8 Terminal 1 Port Product Highlights:Header AssemblyNumber of Positions = 8Number of Rows = DualRight Angle Mount AngleMount Style = Surface MountSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector 08P MICRO MNL ASSY,R/A,SMT,LF

¥10.2960
详情
暂无图片

794633-8

te connectivity / amp

Conn Power HDR 8 POS 3mm Solder ST SMD 8 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 8POS DUAL TIN SMD 8POS MICRO MNL ASSY,VRT,SMT 8POS MICRO MNL ASSY,VRT,SMT Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥6.9840
详情
794629-8

794629-8

te connectivity / amp

Conn Power HDR 8 POS 3mm Solder RA SMD 8 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HDR 8POS DUAL R/A GOLD SMD 8POS MICRO MNL ASSY,R/A,SMT 8POS MICRO MNL ASSY,R/A,SMT Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥11.0880
详情
794621-8

794621-8

te connectivity / amp

Conn Power HDR 8 POS 3mm Solder RA SMD 8 Terminal 1 Port Pin & Socket Connectors 8POS MICRO MNL ASSY R/A SMT 3mm Centerline, 250V, 5 A max. CONN HEADER 8POS DL R/A TIN SMD 8POS MICRO MNL ASSY,R/A,SMT 8POS MICRO MNL ASSY,R/A,SMT Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥6.4800
详情
暂无图片

794635-8

te connectivity / amp

Conn Power HDR 8 POS 3mm Solder ST SMD 8 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 8POS DUAL 30GOLD SMD 8POS MICRO MNL ASSY,VRT,SMT 8POS MICRO MNL ASSY,VRT,SMT Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥9.4320
详情

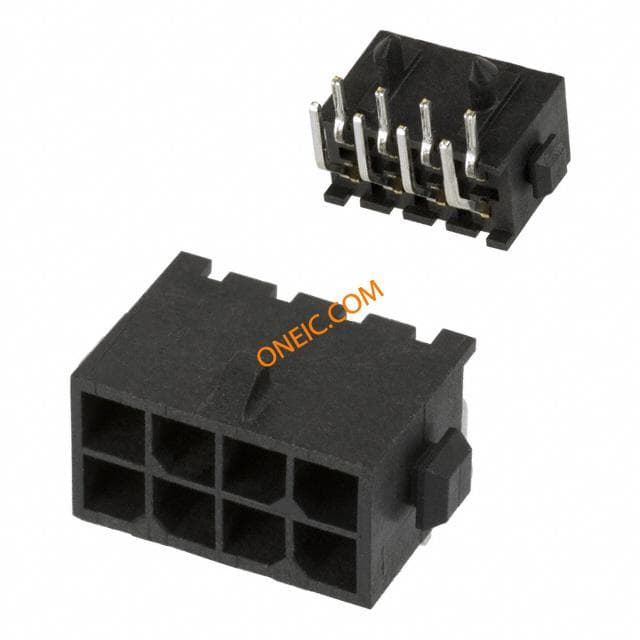

794620-8
