3-794630-8

点击放大查看

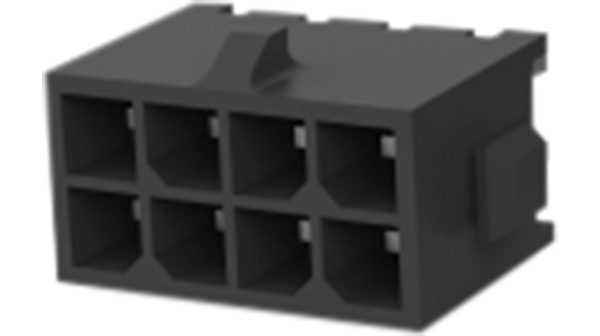

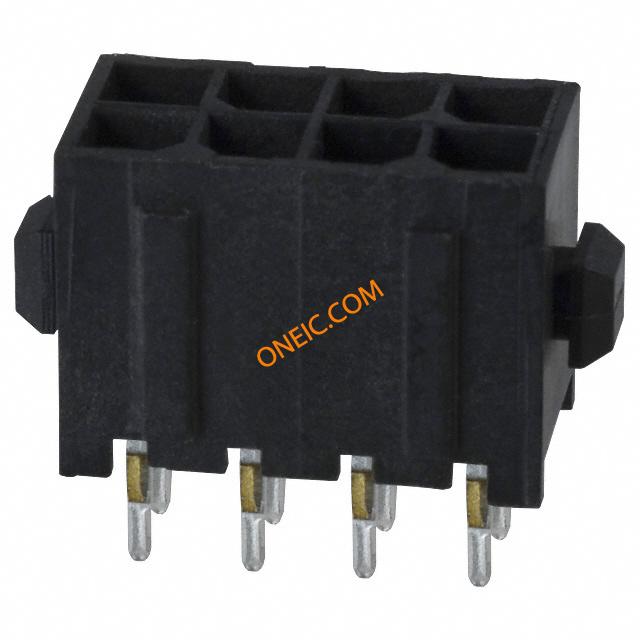

3-794630-8

制造商
TE Connectivity Ltd.
描述Conn Power HDR 8 POS 3mm Solder ST Thru-Hole 8 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 8POS DUAL TIN TE Connectivity MATE-N-LOK Series 3mm Pitch 8 Way Straight Heavy Duty Power Connector, Solder Termination, 5A Pin & Socket Connectors HDR VERT 8 POS TIN DUAL Conn Power HDR 8 POS 3mm Solder ST Thru-Hole 8 Terminal 1 Port Product Highlights:Header AssemblyNumber of Positions = 8Number of Rows = DualVertical Mount AngleMount Style = Through-HoleSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector HEADER, VERTICAL, 3MM, DUAL ROW, 8 WAY 8WD/ROWPINHDRVERT Pin header Pitch3 mm Poles 8 Contact DesignMale MATE-N-LOK, 3-794630-8, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 3mm节距 8路 直 PCB 针座, 焊接端接, 5A , 通孔 08P MICRO MNL ASSY VRT HDR LF
分类
工具与焊接解决方案压接钳、压接机、压力机压接钳
对参数有疑问？问 AI 助手

商业参数

产品类别Pin & Socket Connectors标准包装数量Trays
工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
无铅定义Reflow solder capable to 245°C, Reflow solder capable to 260°C认证机构:CSA, UL
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

量程（°/s）:Micro MATE-N-LOK Series额定电压250 V ac
最大额定电流5A最小供电电压250VAC

机械参数

颜色Black深度6.86 mm
间距3 mm高度9.24 mm
重量0.001材料（通用）:Nylon
包装方式Tray排间距0.118" (3.00mm)
端接方式Solder触头类型Male Pin
极化Without外壳颜色Black
安装类型Through Hole连接器类型Header, Shrouded
接触镀层Matte Tin紧固类型Locking Ramp
安装样式Through-Hole排数Dual
触头材料Brass壳体材料High Temperature Nylon
总长度16 mm端接样式Solder
第一触头极性Pin (Male)连接器颜色:Black
触点数8接触件端接:Through Hole Vertical
位数8中心触点材料3.00 [0.118]
接触镀层厚度100µin (2.54µm)第一连接器安装类型:PCB

产品信息

备注Retention feature located on end contacts only.类型Power
连接器性别HDR系列MATE-N-LOK
CAD图纸3D CAD Model产品子类型Header Assembly
端口数1 Port加载位置数All

环境参数

工作温度-40C to 105C结工作温度105C

文档与媒体

PDF 文档
1650928.pdf
在线文档
3-794630-8?RQPN=3-794630-8

相关型号

794617-8

794617-8

te connectivity / amp

Conn Housing RCP 8 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RCPT 3MM 8POS DL MATE-N-L 8 way 2 row receptacle Mate-N-Lok Pin & Socket Connectors RECPT DUAL ROW 8P Conn Housing RCP 8 POS 3mm Crimp ST Cable Mount Conn Housing RCP 8 POS 3mm Crimp ST Cable Mount Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 8Number of Rows = Dual3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector HOUSING, RECEPTACLE, 8 WAY, NYLON Connector,SoftShell;Nylon;Receptacle;Black;8;Dual;0.118in.;UL94V-0 Plug; wire-board; female; PIN:8; w/o terminals; 3mm; for cable Crimp housing Pitch3 mm Poles 2 x 4 MATE-N-LOK Micro, 794617-8, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 2 行 3mm 节距 8 路 直 母 压接连接器外壳 8POS,MICRO MNL,RCPT HSG

¥1.2886
