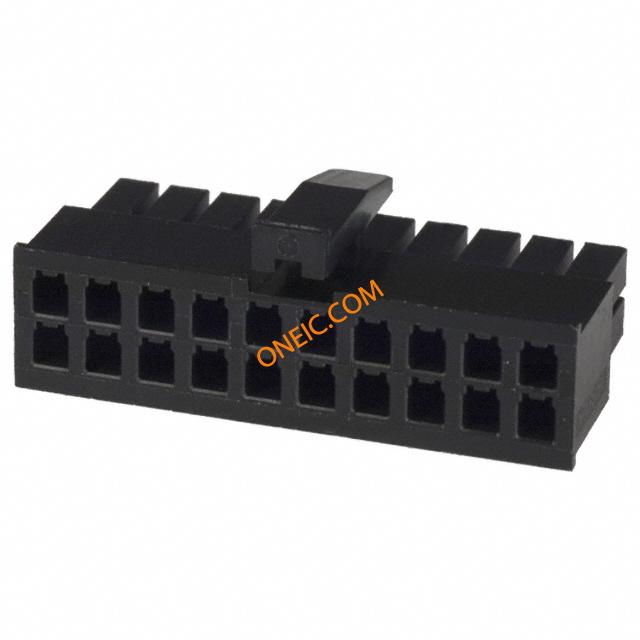

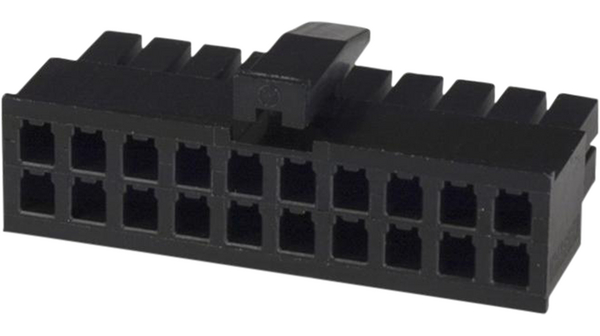

2-794617-0

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 20 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RCPT 3MM 20POS DL MATE-N-L 20 way 2 row receptacle Mate-N-Lok Pin & Socket Connectors RECPT DUAL ROW 20P Conn Housing RCP 20 POS 3mm ST Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 20Number of Rows = Dual3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector RECEPTACLE, DUAL ROW, 20WAY Connector,SoftShell;Nylon;Receptacle;Black;20;Dual;0.118in.;UL94V-0 Crimp housing Pitch3 mm Poles 2 x 10 MATE-N-LOK Micro, 2-794617-0, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 2 行 3mm 节距 20 路直母压接连接器外壳 20POS,MICRO MNL,RCPT HSG
分类	连接器解决方案矩形连接器FPC/FFC矩形连接器

对参数有疑问？问 AI 助手

商业参数

产品类别	Pin & Socket Connectors	标准包装数量	Bulk
工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	海关税号	85369010
无铅定义	Not relevant for lead free process	认证机构	:CSA, UL
RoHS/ELV合规状态	RoHS compliant, ELV compliant	材料阻燃等级	UL 94V-0

电气参数

额定电压	250 V	接触电阻	:20mohm
击穿电压	:1500V	最大额定电流	5 A
绝缘电阻	:1000Mohm	最小供电电压	250VAC

机械参数

颜色	Black	深度	14.04mm
间距	3 mm	宽度	11.7mm
高度	11.7 mm	长度	31mm
重量	0.002	材料（通用）	:Nylon
包装方式	Bulk	导线线规	20 AWG
排间距	0.118" (3.00mm)	触头类型	Female Socket
外壳颜色	Black	安装类型	Straight
连接器类型	Receptacle	紧固类型	Latch Lock
安装样式	Wire	排数	2
封装形式	Receptacle	触头材料	Phosphor Bronze
壳体材料	Nylon	总长度	3.00 [0.118]
端接样式	Crimp	第一触头极性	Socket (Female)
连接器颜色	:Black	触点数	20
接触件端接	Crimp	位数	20
第一连接器安装类型	:Socket

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	MATE-N-LOK
CAD图纸	3D CAD Model	产品子类型	Housing
适用产品/相关产品	Centerline Soft Shell Pin & Socket Connector

环境参数

工作温度

-40C to 105C

文档与媒体

PDF 文档

1650928.pdf

在线文档

2-794617-0?RQPN=2-794617-0

相关型号

暂无图片

2-794626-0

te connectivity / amp

Conn Power HDR 20 POS 3mm Solder RA SMD 20 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADR 20POS DL R/A 30AU SMD Pin & Socket Connectors 20POS MICRO MNL ASSY R/A,SMT 3mm Centerline, 250V, 5 A max. Product Highlights:Header AssemblyNumber of Positions = 20Number of Rows = DualRight Angle Mount AngleMount Style = Surface MountSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥19.7200

详情

暂无图片

2-794681-0

te connectivity / amp

Conn Power HDR 20 POS 3mm Solder ST Thru-Hole 20 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 20POS DL VERT 15GOLD Pin & Socket Connectors 20POS MICRO MNL ASSY VRT,THRU Conn Power HDR 20 POS 3mm Solder ST Thru-Hole 20 Terminal 1 Port Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥10.8800

详情

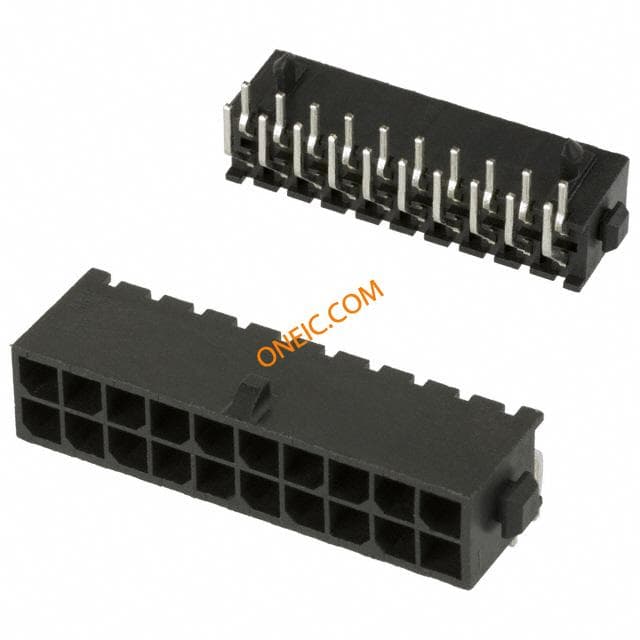

2-794618-0

te connectivity / amp

Conn Power HDR 20 POS 3mm Solder RA Thru-Hole 20 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 20POS DUAL R/A TIN Power to the Board HDR R/A 20 POS TIN DUAL Conn Power HDR 20 POS 3mm Solder RA Thru-Hole 20 Terminal 1 Port Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥12.7847

详情

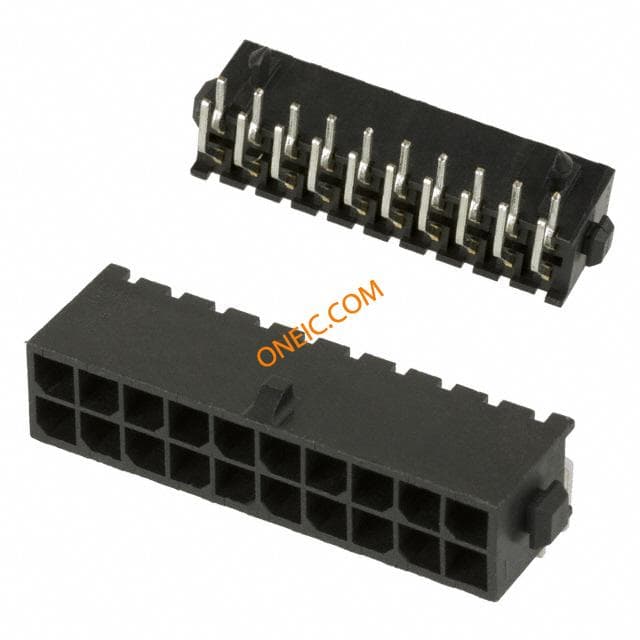

2-794620-0
