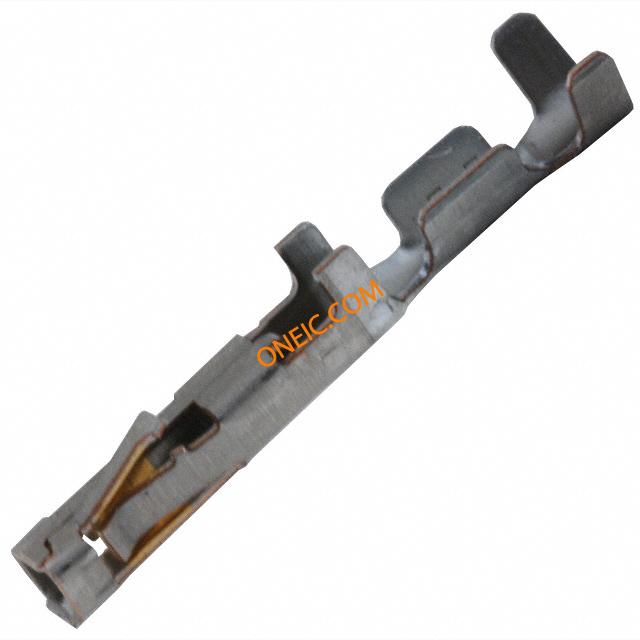

1-794611-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece 3mm Centerline, 250V, 5 A max. CONN SOCKET 26-30AWG GOLD CRIMP Contact socket Mico-Mate-n-Lok Pin & Socket Connectors SOCKET 26-30 AWG Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = ReceptacleWire Range = 0.05-0.15 [30-26] mm [AWG]Gold (30) Contact Mating Area Plating MaterialPackaging Method = Loose PieceSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector CONTACT, CRIMP, SOCKET, 30-26AWG Connector,Shell;Receptacle;5A(Max.);250;PhosphorBronze;26-30AWG;AMP TE Connectivity Micro MATE-N-LOK 系列 压接接线端子, 镀镍镀金，镍镀锡触点 MICRO MNL RPT CNT,LS PC,30AU L |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 额定电压 | 250 V | 最大额定电流 | 5 A |
机械参数
| 重量 | 0.002 | 包装方式 | Bulk |
| 导线线规 | 26-30 AWG | 端接方式 | Crimp |
| 触头类型 | Power | 插针或插孔 | Socket |
| 连接器类型 | Connector Power | 接触镀层 | Tin |
| 箔压接区域 | Bright Tin | 触头材料 | Phosphor Bronze |
| 包装数量 | Loose Piece | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 接触件端接 | Crimp |
| 接触镀层厚度 | 30µin (0.76µm) | 线规或范围 - AWG | 30-26 |
| 线规或范围 - mm² | 0.05-0.15 [30-26] | ||
产品信息
| 类型 | Stamped | 连接器性别 | SKT |
| 系列 | Micro Mate-N | 制造商全称 | AMP |
| 产品子类型 | Contact | 适用产品/相关产品 | :Micro MATE-N-LOK Housings |
文档与媒体
