点击放大查看

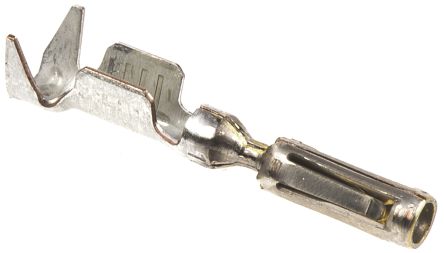

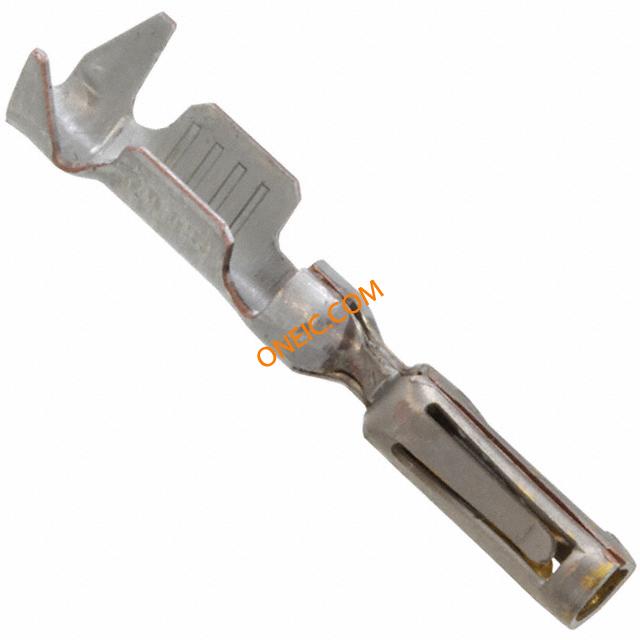

770854-3

制造商	TE Connectivity Ltd.
描述	Contact SKT Crimp ST Cable Mount Loose Piece AMPSEAL CONN RECEPT CRIMP GOLD AMPSEAL AMPSEAL socket crimp contact, AWG 16-20 Automotive Connectors AMPSEAL CONTACT Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactTerminate To WireGold Contact Mating Area Plating MaterialPackaging Method = Loose Piece CONTACT, GOLD RECEPT., CRIMP AMPSEALsocketcrimpcontact,AWG16-20 TE Connectivity AMPSEAL 系列母压接接线端子, 压接, 镀金触点 CONTACT,AMPSEAL AU L/P
分类	连接器解决方案接触件接触件（通用）

对参数有疑问？问 AI 助手

商业参数

产品	Terminals	产品类别	Automotive Connectors
标准包装数量	Bulk	工厂包装数量	1000

合规参数

RoHS	Lead free / RoHS Compliant	海关税号	85366910
无铅定义	Not reviewed for lead free solder process	RoHS/ELV合规状态	RoHS compliant, ELV compliant

电气参数

最大额定电流

17 A

机械参数

深度	4.4 mm	间距	Not Required mm
重量	0.28	包装方式	Bulk
导线线规	16-20 AWG	端接方式	Crimp
触头类型	Power	安装类型	Wire
插针或插孔	Socket	连接器类型	Connector Power
接触镀层	Gold	安装样式	Wire
连接器用途	Receptacle	触头材料	Copper-Nickel-Zinc
壳体材料	Not Required	总长度	19.3 mm
包装数量	Loose Piece	端接样式	Crimp
第一触头极性	:Socket	触点数	1 POS
接触件端接	Crimp	位数	1
接触镀层厚度	29.5µin (0.75µm)	线规或范围 - AWG	20-16

产品信息

类型	Contact	连接器性别	SKT
系列	:Ampseal	产品子类型	Contact
连接类型	Wire	端口数	1 Port
适用产品/相关产品	:AMPSEAL and AMPSEAL 16 Series Connectors

环境参数

工作温度	+125°C	可用温度范围	-40to+125°C
结工作温度	125C
