点击放大查看

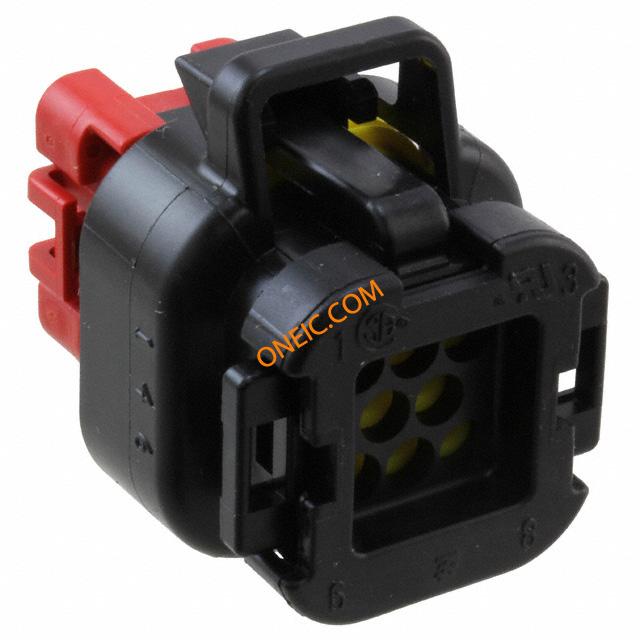

776286-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 8 POS ST 8 POS AMPSEAL PLUG ASSEMBLY AMPSEAL 8 way plug housing, black Automotive Connectors PLG 08POS F/H BLK Conn Housing PL 8 POS ST Product Highlights:Plug AssemblyNumber of Positions = 8Terminate To WireColor = Black PLUG, AMPSEAL, 8WAY AMPSEALCONNECTOR,FREEHANGING,3R,8P TE Connectivity AMPSEAL 系列 3行 8路 黑色 公 外壳 |
| 分类 |
商业参数
| 产品 | Housings | 产品类别 | Automotive Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
机械参数
| 颜色 | Black | 间距 | :4mm |
| 宽度 | 27.4mm | 高度 | 34.6mm |
| 重量 | 0.014 | 包装方式 | Bulk |
| 导线线规 | 16-20 AWG | 触头类型 | Female Socket |
| 安装类型 | Straight | 连接器类型 | Plug |
| 紧固类型 | Latch Holder | 安装样式 | Wire |
| 排数 | 3 | 锁定特性 | :Latch |
| 本体材料 | :PBT (Polybutylene Terephthalate) | 壳体材料 | PBT |
| 端接样式 | Crimp | 连接器颜色 | Black |
| 触点数 | 8 | 接触件端接 | Crimp |
| 位数 | 8 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | Ampseal Sealed |
| 适用产品/相关产品 | :AMPSEAL Series Socket Contacts | ||
环境参数
| 工作温度 | -40°C | ||
