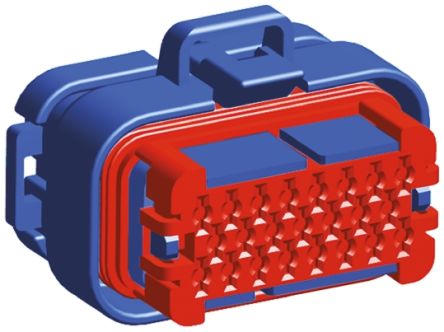

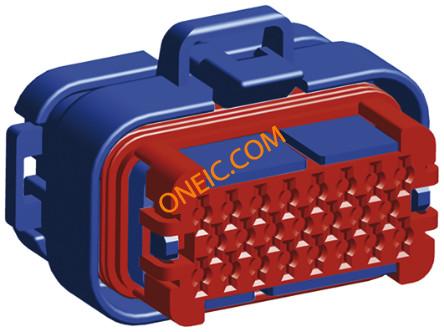

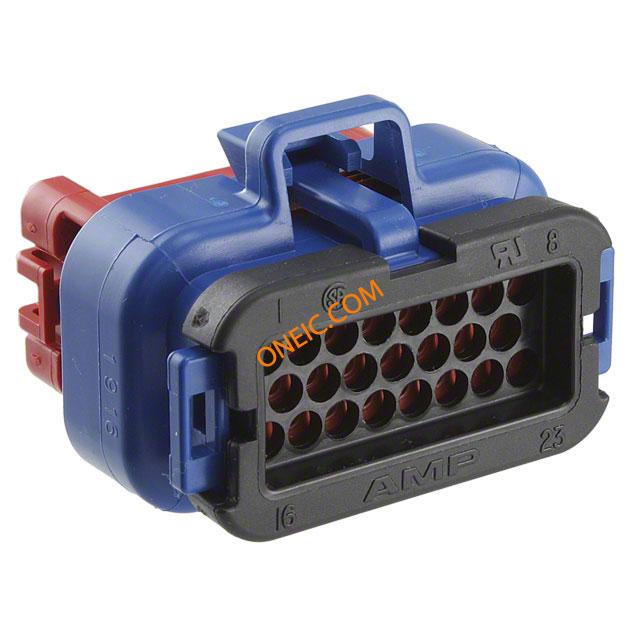

770680-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 23 POS Crimp ST AMPSEAL CONN PLUG 23POS BLUE AMP SEAL AMPSEAL 23 way plug housing, blue Automotive Connectors 23P AMPSEAL PLUG ASSY BLUE Conn Housing PL 23 POS Crimp ST Product Highlights:Plug AssemblyNumber of Positions = 23Terminate To WireColor = Blue CONNECTOR, HOUSING, 23POS, 4MM PLUG, AMPSEAL, 23WAY AMPSEAL23wayplughousing,blue TE Connectivity AMPSEAL 系列 3 行 23 路 直 公 PCB 壳体 23P AMPSEAL PLUG ASSY BLUE |
| 分类 |
商业参数
| 产品 | Housings | 产品类别 | Automotive Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not reviewed for lead free solder process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
机械参数
| 颜色 | Blue | 间距 | :4mm |
| 宽度 | 34.6mm | 长度 | 47.4mm |
| 重量 | 0 | 包装方式 | Bulk |
| 触头类型 | Female Socket | 安装类型 | Straight |
| 连接器类型 | Crimp | 接触镀层 | :- |
| 紧固类型 | Latch Lock | 安装样式 | Wire |
| 排数 | 3 | 锁定特性 | :Latch |
| 本体材料 | :PBT (Polybutylene Terephthalate) | 触头材料 | :- |
| 壳体材料 | Thermoplastic | 主要材料 | Connector |
| 端接样式 | Crimp | 第一触头极性 | :Socket |
| 触点数 | 23 | 接触件端接 | Crimp |
| 位数 | 23 | 第一连接器安装类型 | :Cable |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | AMPSEAL |
| 制造商全称 | AMPSEAL | 产品子类型 | Plug Assembly |
| 连接类型 | Wire | 适用产品/相关产品 | Automotive Plug Connector |
