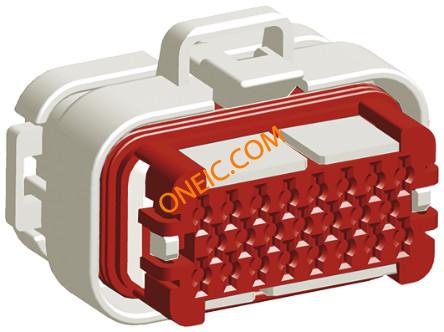

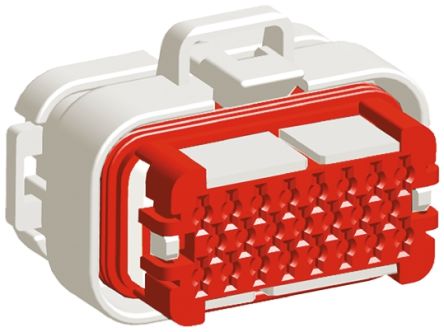

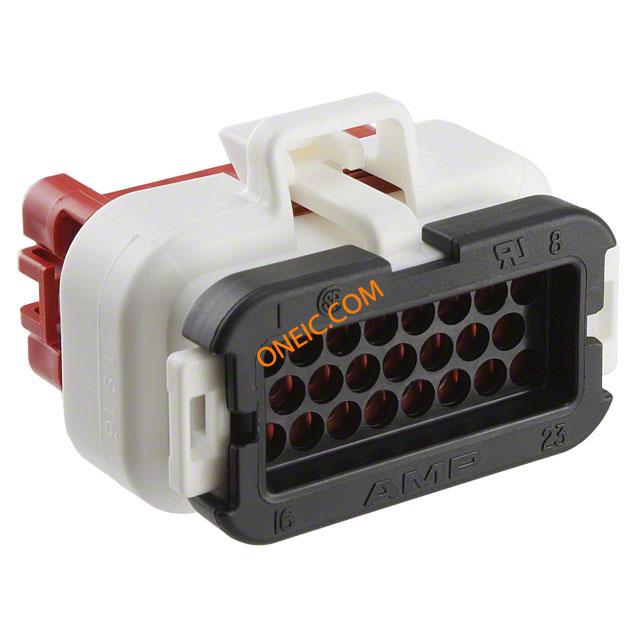

770680-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 23 POS ST AMPSEAL CONN PLUG 23POS NAT'L AMPSEAL 23 way plug housing, natural Automotive Connectors 23P AMPSEAL PLUG ASS Conn Housing PL 23 POS ST Product Highlights:Plug AssemblyNumber of Positions = 23Terminate To WireColor = Natural PLUG & SOCKET HOUSING, PLUG, 23POS, PBT, NAT AMPSEAL23wayplughousing,natural AMPSEAL and AMPSEAL 16 Connector System; AMPSEAL Product Line Connector Housing Connector Style: Plug Contact Type: Socket TE Connectivity AMPSEAL 系列 3 行 23 路 直 公 PCB 壳体 23P AMPSEAL PLUG ASSY NAT'L |
| 分类 |
商业参数
| 产品 | Housings | 产品类别 | Automotive Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not reviewed for lead free solder process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 最大额定电流 | 17 A | ||
机械参数
| 颜色 | Natural | 间距 | :4mm |
| 宽度 | 34.6mm | 高度 | 34.6 mm |
| 长度 | 47mm | 重量 | 0.0001 |
| 包装方式 | Bulk | 导线线规 | 16-20 AWG |
| 触头类型 | Female Socket | 外壳颜色 | Natural |
| 安装类型 | Straight | 连接器类型 | Crimp |
| 紧固类型 | Latch Lock | 安装样式 | Wire |
| 排数 | 3 | 壳体材料 | Thermoplastic |
| 总长度 | 47 mm | 主要材料 | Connector |
| 端接样式 | Crimp | 第一触头极性 | :Socket |
| 触点数 | 23 | 接触件端接 | Crimp |
| 位数 | 23 | 第一连接器安装类型 | :Free Hanging |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | AMPSEAL |
| 产品特性 | Ampseal | 制造商全称 | AMPSEAL |
| 产品子类型 | Plug Assembly | 连接类型 | Wire |
| 适用产品/相关产品 | Automotive Plug Connector | ||
