770680-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 23 POS ST Automotive Connectors AMPSEAL 23P PLUG BLACK AMPSEAL CONN PLUG ASSY 23POS SEALED AMPSEAL 23 way plug housing, black Conn Housing PL 23 POS ST Product Highlights:Plug AssemblyNumber of Positions = 23Terminate To WireColor = Black HOUSING, PLUG/SOCKET, 23POS PLUG, AMPSEAL, 23 WAY AMPSEAL23wayplughousing,black TE Connectivity AMPSEAL 系列 3 行 23 路 直 公 PCB 壳体 23 POS AMP SEAL PLUG ASSY |
| 分类 |
商业参数
| 产品 | Housings | 产品类别 | Automotive Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not reviewed for lead free solder process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 最大额定电流 | 17 A | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Black | 间距 | :4mm |
| 宽度 | 34.6mm | 高度 | 34.6 mm |
| 长度 | 47.4mm | 重量 | 0.005 |
| 包装方式 | Bulk | 导线线规 | 16-20 |
| 触头类型 | Plug | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Crimp |
| 紧固类型 | Latch Lock | 安装样式 | Wire |
| 排数 | 3 | 壳体材料 | Thermoplastic |
| 总长度 | 47.4 mm | 主要材料 | Connector |
| 端接样式 | Crimp | 连接器颜色 | :Black |
| 触点数 | 23 | 接触件端接 | Crimp |
| 位数 | 23 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | Ampseal |
| 制造商全称 | AMPSEAL | 产品子类型 | Plug Assembly |
| 附件类型 | :Housing | 连接类型 | Wire |
| 适用产品/相关产品 | Automotive Plug Connector | ||
文档与媒体
相关型号
770520-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip AMPSEAL CONTACT, AMPSEAL AUPL Automotive Connectors CONTACT AMPSEAL AU Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactTerminate To WireGold Contact Mating Area Plating MaterialStrip CRIMP SOCKET, AMPSEAL, 16-20AWG AMPSEAL and AMPSEAL 16 Connector System; AMPSEAL Product Line Applies To Wire/Cable Contact Contact Type: Socket Crimp Termination Method CONTACT, AMPSEAL AUPL
770678-1
te connectivity / amp
Connector Accessories Seal Plug Nylon 6/6 Natural Automotive Connectors AMPSEAL ACC:SEAL PLUG AMPSEAL SEAL PLUG, AMPSEAL Seal Plug AmpSeal Connector Accessories Seal Plug Nylon 6/6 Natural Product Highlights:Seal Plug SEAL, CONTACT, PLUG, AMPSEAL SealPlugAmpSeal TE Connectivity 封条
770680-1
te connectivity / amp
Conn Housing PL 23 POS ST Automotive Connectors AMPSEAL 23P PLUG BLACK AMPSEAL CONN PLUG ASSY 23POS SEALED AMPSEAL 23 way plug housing, black Conn Housing PL 23 POS ST Product Highlights:Plug AssemblyNumber of Positions = 23Terminate To WireColor = Black HOUSING, PLUG/SOCKET, 23POS PLUG, AMPSEAL, 23 WAY AMPSEAL23wayplughousing,black TE Connectivity AMPSEAL 系列 3 行 23 路 直 公 PCB 壳体 23 POS AMP SEAL PLUG ASSY
770854-3
te connectivity / amp

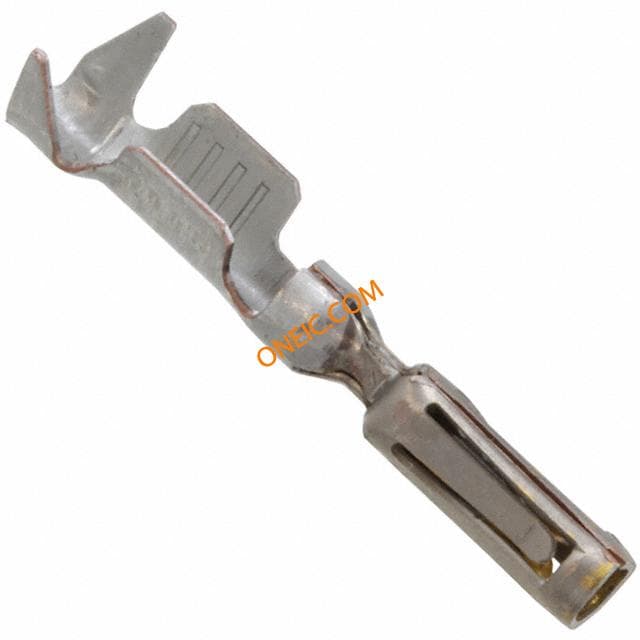

Contact SKT Crimp ST Cable Mount Loose Piece AMPSEAL CONN RECEPT CRIMP GOLD AMPSEAL AMPSEAL socket crimp contact, AWG 16-20 Automotive Connectors AMPSEAL CONTACT Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactTerminate To WireGold Contact Mating Area Plating MaterialPackaging Method = Loose Piece CONTACT, GOLD RECEPT., CRIMP AMPSEALsocketcrimpcontact,AWG16-20 TE Connectivity AMPSEAL 系列 母 压接接线端子, 压接, 镀金触点 CONTACT,AMPSEAL AU L/P
776087-1
te connectivity / amp

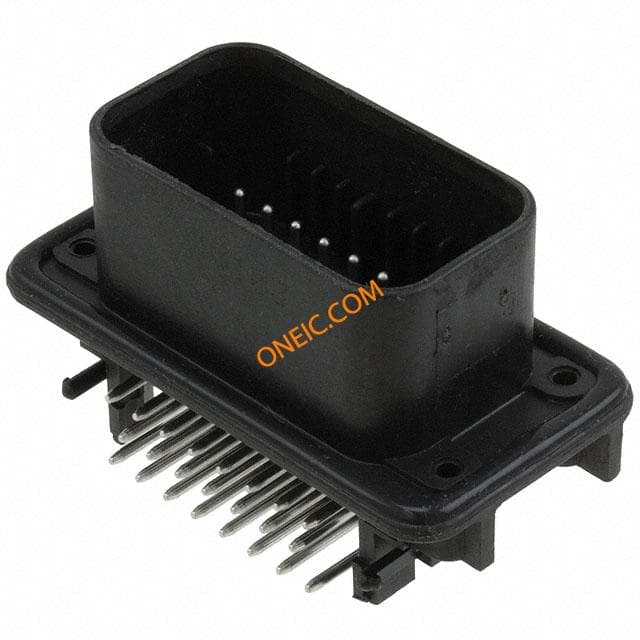

Conn Wire to Board HDR 23 POS 4mm Solder RA Thru-Hole AMPSEAL CONN HDR RTANG 23POS W/GASKT TIN TE Connectivity AMPSEAL Series 4mm Pitch 23 Way 3 Row Right Angle PCB Header, Solder Termination, 8A Automotive Connectors 23 POS AMPSEAL HDR S Conn Power HDR 23 POS 4mm Solder RA Thru-Hole 23 Terminal 1 Port Conn Power HDR 23 POS 4mm Solder RA Thru-Hole 23 Terminal 1 Port Product Highlights:Header AssemblyNumber of Positions = 23Terminate To Panel, Terminate To Printed Circuit BoardRight Angle Mount AngleWith Gasket CONNECTOR, PLUG/SOCKET, 23POS AMPSEAL23wayrightangleplugheader TE Connectivity AMPSEAL 系列 4mm节距 23路 (3排) 直角 PCB 针座, 焊接端接, 8A , 通孔 23 POS AMPSEAL HDR SNAP IN W/G
