点击放大查看

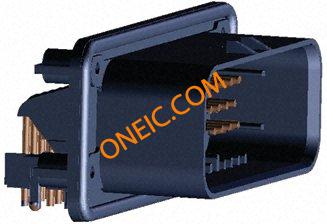

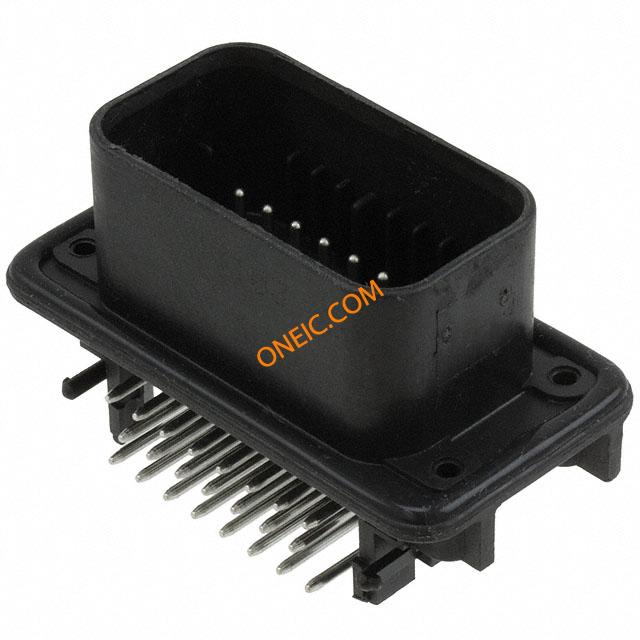

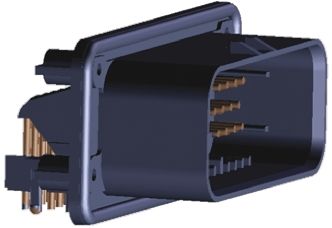

776087-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Wire to Board HDR 23 POS 4mm Solder RA Thru-Hole AMPSEAL CONN HDR RTANG 23POS W/GASKT TIN TE Connectivity AMPSEAL Series 4mm Pitch 23 Way 3 Row Right Angle PCB Header, Solder Termination, 8A Automotive Connectors 23 POS AMPSEAL HDR S Conn Power HDR 23 POS 4mm Solder RA Thru-Hole 23 Terminal 1 Port Conn Power HDR 23 POS 4mm Solder RA Thru-Hole 23 Terminal 1 Port Product Highlights:Header AssemblyNumber of Positions = 23Terminate To Panel, Terminate To Printed Circuit BoardRight Angle Mount AngleWith Gasket CONNECTOR, PLUG/SOCKET, 23POS AMPSEAL23wayrightangleplugheader TE Connectivity AMPSEAL 系列 4mm节距 23路 (3排) 直角 PCB 针座, 焊接端接, 8A , 通孔 23 POS AMPSEAL HDR SNAP IN W/G |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品 | Headers | 产品类别 | Automotive Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not reviewed for lead free solder process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 最大额定电流 | 8A | ||
机械参数
| 颜色 | Black | 间距 | 4 mm |
| 重量 | 0.001 | 包装方式 | Bulk |
| 排间距 | 0.157" (4.00mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Right Angle |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin |
| 紧固类型 | Locking Ramp | 安装样式 | Through Hole |
| 排数 | 3 | 触头材料 | Copper Zinc Alloy |
| 壳体材料 | Thermoplastic | 主要材料 | WiretoBoard |
| 第一触头极性 | :Pin | 触点数 | 23 |
| 接触件端接 | :Through Hole Right Angle | 位数 | 23 |
| 外壳尺寸-插件 | :- | 衬套/护套类型 | With |
| 第一连接器安装类型 | :PCB | ||
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 系列 | AMPSEAL | 产品特性 | Ampseal |
| 制造商全称 | AMPSEAL | 产品子类型 | Header Assembly |
| 连接类型 | Panel, Printed Circuit Board | 加载位置数 | All |
