点击放大查看

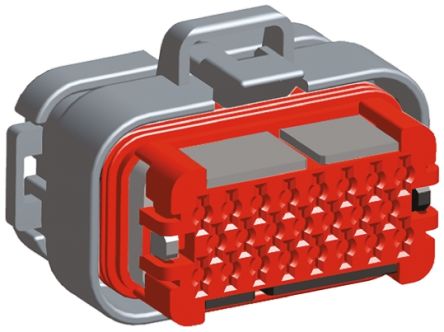

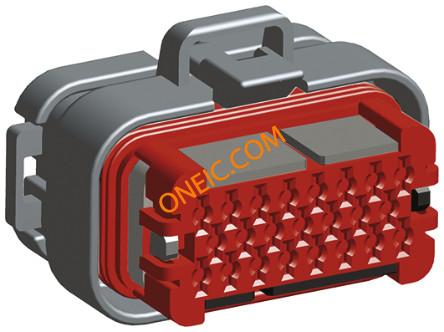

770680-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 23 POS ST AMPSEAL CONN PLUG HOUSING 23POS GRAY AMPSEAL 23 way plug housing, grey Automotive Connectors PLG 23POS F/H GRY Conn Housing PL 23 POS ST Product Highlights:Plug AssemblyNumber of Positions = 23Terminate To WireColor = Gray PLUG, AMPSEAL, 23WAY AMPSEAL23wayplughousing,grey TE Connectivity AMPSEAL 系列 3 行 23 路 直 公 PCB 壳体 23P AMPSEAL PLUG ASSY GREY |
| 分类 |
商业参数
| 产品 | Housings | 产品类别 | Automotive Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not reviewed for lead free solder process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
机械参数
| 颜色 | Gray | 宽度 | 34.6mm |
| 高度 | 34.6 mm | 长度 | 47mm |
| 重量 | 0.0254 | 包装方式 | Bulk |
| 导线线规 | 16-20 AWG | 触头类型 | Female Socket |
| 外壳颜色 | Gray | 安装类型 | Straight |
| 连接器类型 | Crimp | 紧固类型 | Latch Lock |
| 安装样式 | Free Hanging | 排数 | 3 |
| 锁定特性 | :Latch | 本体材料 | :PBT (Polybutylene Terephthalate) |
| 壳体材料 | Thermoplastic | 总长度 | 47 mm |
| 主要材料 | Receptacle | 触点数 | 23 |
| 接触件端接 | Crimp | 位数 | 23 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | AMPSEAL |
| 制造商全称 | AMPSEAL | 产品子类型 | Plug Assembly |
| 连接类型 | Wire | 适用产品/相关产品 | Automotive Plug Connector |
