776286-2
| 制造商 | TE Connectivity Ltd. |

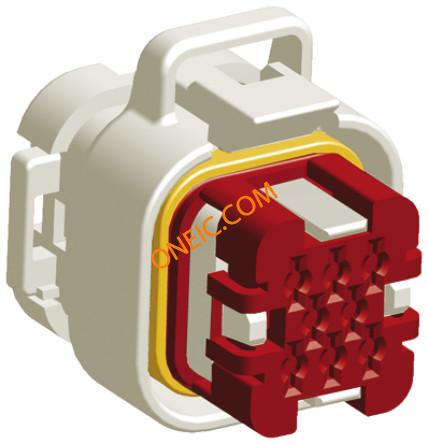

| 描述 | Conn Housing PL 8 POS Crimp ST 8 POS AMPSEAL PLUG ASSEMBLY AMPSEAL 8 way plug housing, natural Automotive Connectors PLUG 8 POS F/H NAT Conn Housing PL 8 POS Crimp ST Product Highlights:Plug AssemblyNumber of Positions = 8Terminate To WireColor = Natural AMPSEAL8wayplughousing,natural TE Connectivity AMPSEAL 系列 3行 8路 电缆安装 天然色 公 外壳 |
| 分类 |
商业参数
| 产品 | Housings | 产品类别 | Automotive Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 供电电压 | 250 | 标称电压 | 12, 24, 42, 48, 80, 90, 125, 240 |
| 连接器阻抗 | 否 | ||
机械参数
| 颜色 | Natural | 深度 | 33.6mm |
| 间距 | 4.14 mm | 宽度 | 27.4mm |
| 高度 | 34.6mm | 长度 | 27.4 mm [ 1.079 in ] |
| 锁定类型 | 外壳集成 | 包装方式 | Bulk |
| 出线方向 | 否 | 触头类型 | Female Socket |
| 安装类型 | Straight | 连接器类型 | Plug |
| 紧固类型 | Latch Holder | 安装样式 | Wire |
| 排数 | 3 | 壳体材料 | Glass Fibre Reinforced PBT |
| 安装特性 | 否 | 包装数量 | 220 |
| 主要材料 | 其他 | 端接样式 | Crimp |
| 连接器颜色 | Natural | 触点数 | 8 |
| 接触件端接 | Crimp | 位数 | 8 |
| 连接器/触点类型 | 否 | 接触件表面处理 - 配合 | 是 |
| 法兰上方插针尺寸 | 1.3 mm [ .051 in ] | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | Ampseal Sealed |
| 极性 | 是 | 可密封 | 是 |
| 可维修 | 是 | ||
环境参数
| 防护等级 | IP6K9K | 工作温度 | -40 – 125 °C [ -40 – 257 °F ] |
文档与媒体
相关型号
770520-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip AMPSEAL CONTACT, AMPSEAL AUPL Automotive Connectors CONTACT AMPSEAL AU Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactTerminate To WireGold Contact Mating Area Plating MaterialStrip CRIMP SOCKET, AMPSEAL, 16-20AWG AMPSEAL and AMPSEAL 16 Connector System; AMPSEAL Product Line Applies To Wire/Cable Contact Contact Type: Socket Crimp Termination Method CONTACT, AMPSEAL AUPL
770854-3
te connectivity / amp

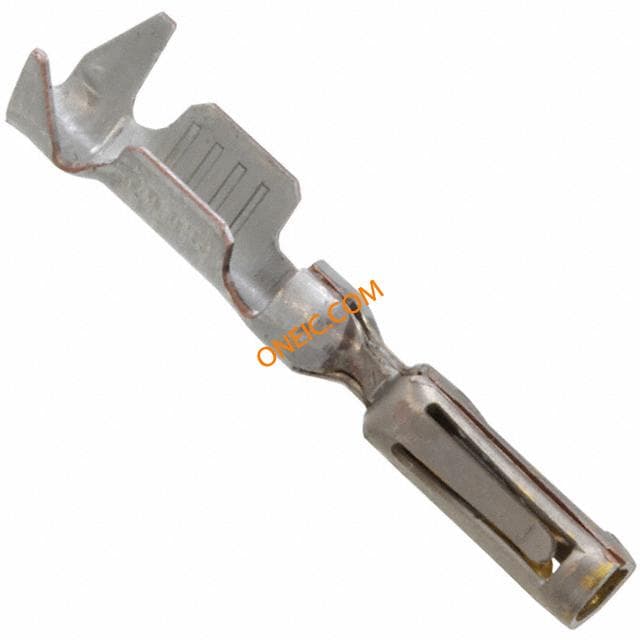

Contact SKT Crimp ST Cable Mount Loose Piece AMPSEAL CONN RECEPT CRIMP GOLD AMPSEAL AMPSEAL socket crimp contact, AWG 16-20 Automotive Connectors AMPSEAL CONTACT Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactTerminate To WireGold Contact Mating Area Plating MaterialPackaging Method = Loose Piece CONTACT, GOLD RECEPT., CRIMP AMPSEALsocketcrimpcontact,AWG16-20 TE Connectivity AMPSEAL 系列 母 压接接线端子, 压接, 镀金触点 CONTACT,AMPSEAL AU L/P
770520-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Automotive Connectors CONTACT AMPSEAL AMPSEAL CONN RECEPT 16-20AWG TIN CRIMP AMPSEAL socket crimp contact, AWG 16-20 Automotive Connectors CONTACT AMPSEAL Reel of 5000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactTerminate To WireTin Contact Mating Area Plating MaterialStrip CONTACT, SOCKET, 20-16 AWG, CRIMP AMPSEALsocketcrimpcontact,AWG16-20 TE Connectivity AMPSEAL 系列 母 压接接线端子, 压接, 镀锡触点 CONTACT, AMPSEAL
770854-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece AMPSEAL CONTACT, AMPSEAL SN/LP AMPSEAL socket crimp contact, AWG 16-20 Automotive Connectors RECEPT CONTACT LOOSE Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactTerminate To WireTin Contact Mating Area Plating MaterialLoose Piece CRIMP SOCKET, AMPSEAL, 16-20AWG Contact;Pin;AMPSEAL16;16-20AWG;8A;CopperNickelZincAlloy TE Connectivity AMPSEAL 系列 母 压接接线端子, 压接, 镀锡触点
