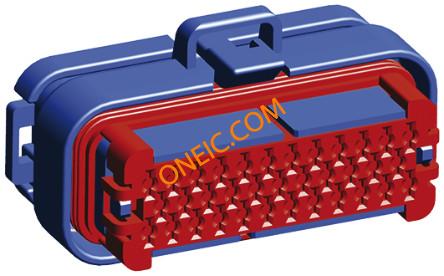

点击放大查看
776164-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing F 35 POS 4mm Crimp ST AMPSEAL PLUG ASSY 35 POS AMPSEAL 35 way plug housing, blue Automotive Connectors PLUG ASSY 35 POS Conn Housing F 35 POS 4mm Crimp ST Product Highlights:Plug AssemblyNumber of Positions = 35Terminate To WireColor = Blue PLUG & SOCKET HOUSING, PLUG, 35POS, PBT, BLUE AMPSEAL35wayplughousing,blue TE Connectivity AMPSEAL 系列 3行 35路 电缆安装 蓝色 公 外壳 |
| 分类 |
商业参数
| 产品 | Housings | 产品类别 | Automotive Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not reviewed for lead free solder process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
机械参数
| 颜色 | Blue | 深度 | 33.6mm |
| 间距 | 4 mm | 宽度 | 63.4mm |
| 高度 | 34.6mm | 重量 | 0.00001 |
| 包装方式 | Bulk | 排间距 | 0.157" (4.00mm) |
| 触头类型 | Female Socket | 外壳颜色 | Blue |
| 安装类型 | Straight | 连接器类型 | Crimp |
| 接触镀层 | Gold | 紧固类型 | Latch Lock |
| 安装样式 | Wire | 排数 | 3 |
| 壳体材料 | Thermoplastic | 总长度 | 63.4 mm |
| 端接样式 | Crimp | 第一触头极性 | :Socket |
| 连接器颜色 | Blue | 触点数 | 35 |
| 接触件端接 | Crimp | 位数 | 35 |
| 第一连接器安装类型 | :Free Hanging | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | F | 系列 | :AMPSEAL |
| 产品子类型 | Plug Assembly | 连接类型 | Wire |
| 适用产品/相关产品 | :AMPSEAL Auto Header Assembly System & Socket Contacts | ||
环境参数
| 工作温度 | +125°C | ||
