776273-4
| 制造商 | TE Connectivity Ltd. |

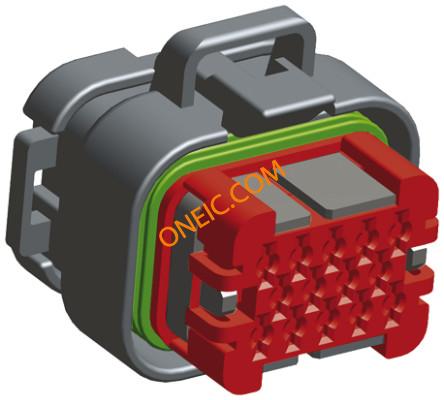

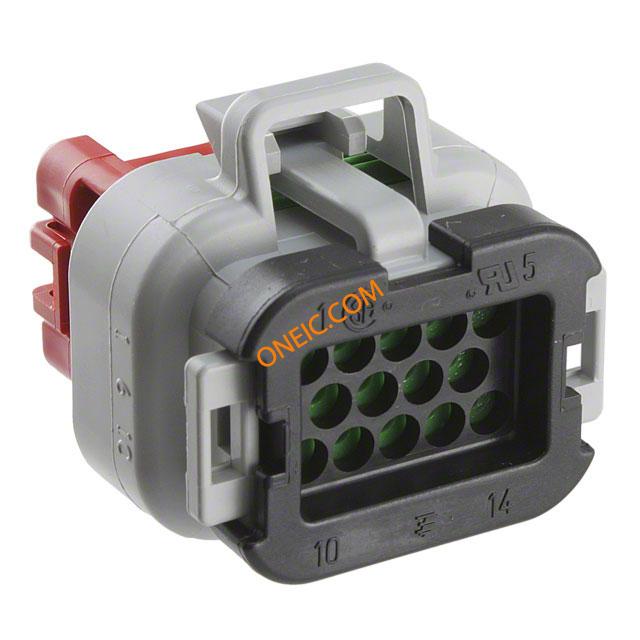

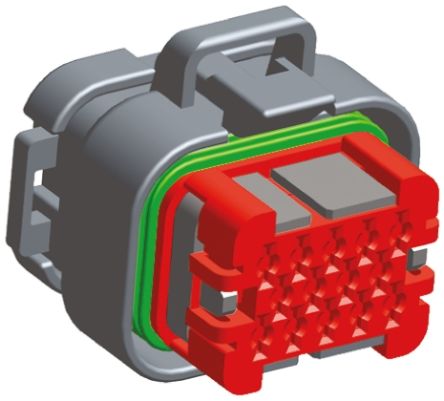

| 描述 | Conn Housing PL 14 POS Crimp ST AMPSEAL 14 POS AMPSEAL PLUG ASSEMBLY AMPSEAL 14 way plug housing, grey Automotive Connectors 14 POS AMPSEAL PLUG ASSY Conn Housing PL 14 POS Crimp ST Product Highlights:Plug AssemblyNumber of Positions = 14Terminate To WireWith GasketColor = Gray AMPSEAL14wayplughousing,grey TE Connectivity AMPSEAL 系列 3行 14路 电缆安装 灰色 公 外壳 |
| 分类 |
商业参数
| 产品 | Housings | 产品类别 | Automotive Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not reviewed for lead free solder process |
| RoHS/ELV合规状态 | ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 供电电压 | 250 | 标称电压 | 12, 24, 42, 48, 80, 90, 125, 240 |
| 连接器阻抗 | 否 | ||
机械参数
| 颜色 | Gray | 深度 | 33.6mm |
| 间距 | 4 mm [ .157 in ] | 宽度 | 35.4mm |
| 高度 | 34.6mm | 长度 | 35.4 mm [ 1.394 in ] |
| 锁定类型 | 外壳集成 | 包装方式 | Bulk |
| 出线方向 | 否 | 触头类型 | Female Socket |
| 外壳颜色 | Gray | 安装类型 | Straight |
| 连接器类型 | Crimp | 紧固类型 | Latch Holder |
| 安装样式 | Wire | 排数 | 3 |
| 壳体材料 | PBT | 总长度 | 35.4 mm |
| 安装特性 | 否 | 包装数量 | 220 |
| 主要材料 | 其他 | 端接样式 | Crimp |
| 连接器颜色 | Grey | 触点数 | 14 |
| 接触件端接 | Crimp | 位数 | 14 |
| 衬套/护套类型 | With | 连接器/触点类型 | 否 |
| 接触件表面处理 - 配合 | 是 | 法兰上方插针尺寸 | 1.3 mm [ .051 in ] |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | Ampseal Sealed |
| 极性 | 是 | 可密封 | 是 |
| 可维修 | 是 | 产品子类型 | Plug Assembly |
| 连接类型 | Wire | ||
环境参数
| 防护等级 | IP6K9K | 工作温度 | -40 – 125 °C [ -40 – 257 °F ] |
