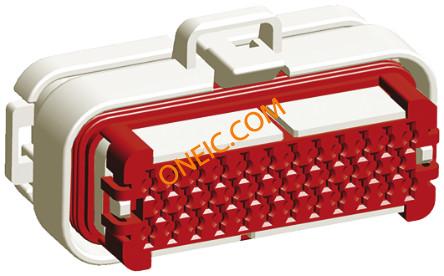

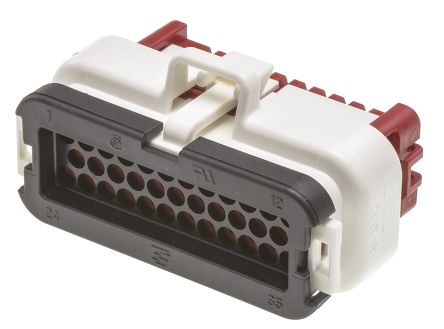

点击放大查看
776164-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing F 35 POS Crimp ST AMPSEAL 35 POS AMP SEAL PLUG ASSY NAT AMPSEAL 35 way plug housing, natural Automotive Connectors 35 POS AMP SEAL PLUG Conn Housing F 35 POS Crimp ST Product Highlights:Plug AssemblyNumber of Positions = 35Terminate To WireColor = Natural PLUG & SOCKET HOUSING, PLUG, 35POS, PBT, NAT AMPSEAL and AMPSEAL 16 Connector System; AMPSEAL Product Line Connector Housing Connector Style: Plug Contact Type: Socket TE Connectivity AMPSEAL 系列 3行 35路 电缆安装 天然色 公 外壳 |
| 分类 |
商业参数
| 产品 | Housings | 产品类别 | Automotive Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not reviewed for lead free solder process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
机械参数
| 颜色 | Natural | 深度 | 33.6mm |
| 间距 | 0.157" (4.00mm) | 宽度 | 63.4mm |
| 高度 | 34.6mm | 重量 | 0.01 |
| 包装方式 | Bulk | 排间距 | 0.157" (4.00mm) |
| 触头类型 | Female Socket | 安装类型 | Straight |
| 连接器类型 | Crimp | 接触镀层 | Gold |
| 紧固类型 | Latch Lock | 安装样式 | Wire |
| 排数 | 3 | 壳体材料 | Thermoplastic |
| 端接样式 | Crimp | 连接器颜色 | Natural |
| 触点数 | 35 | 接触件端接 | Crimp |
| 位数 | 35 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | F | 系列 | Ampseal |
| 产品子类型 | Plug Assembly | 连接类型 | Wire |
| 适用产品/相关产品 | :AMPSEAL and AMPSEAL 16 Series Connectors | ||
环境参数
| 工作温度 | +125°C | ||
