点击放大查看

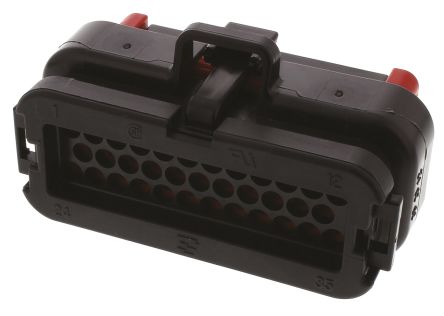

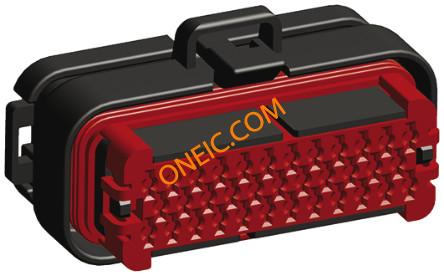

776164-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 35 POS ST AMPSEAL CONN PLUG 35POS FREE HANGING BLK AMPSEAL 35 way plug housing, black Automotive Connectors PLG 35 POS F/H BLK Conn Housing PL 35 POS ST Product Highlights:Plug AssemblyNumber of Positions = 35Terminate To WireColor = Black CONNECTOR, RECEPT Connector,AMPSEAL,Plug,35Position,4.00mmCenterline TE Connectivity AMPSEAL 系列 3行 35路 电缆安装 黑色 母 外壳 , 压接端接 35 POS AMP SEAL PLUG ASSY BLK |
| 分类 |
商业参数
| 产品 | Housings | 产品类别 | Automotive Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not reviewed for lead free solder process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 最大额定电流 | 17A | ||
机械参数
| 颜色 | Black | 深度 | 33.6mm |
| 间距 | 0.157" (4.00mm) | 宽度 | 63.4mm |
| 高度 | 27.6mm | 重量 | 0.034 |
| 包装方式 | Bulk | 绝缘类型 | Insulated |
| 导线线规 | 16-20 | 排间距 | 0.157" (4.00mm) |
| 端接方式 | Crimp | 触头类型 | Female Socket |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Crimp | 紧固类型 | Latch Lock |
| 排数 | 3 | 壳体材料 | Thermoplastic |
| 总长度 | 63.4 mm | 主要材料 | InterconnectSystem |
| 端接样式 | Crimp | 连接器颜色 | Black |
| 触点数 | 35 | 接触件端接 | Crimp |
| 位数 | 35 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | :Ampseal |
| 产品特性 | Ampseal | 制造商全称 | AMPSEAL16 |
| 产品子类型 | Plug Assembly | 连接类型 | Wire |
| 适用产品/相关产品 | :AMPSEAL Connectors | ||
环境参数
| 工作温度 | +125°C | ||
