点击放大查看

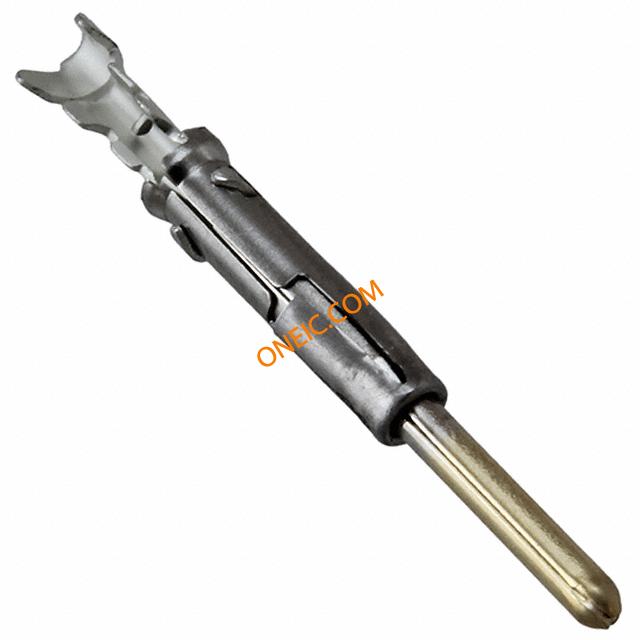

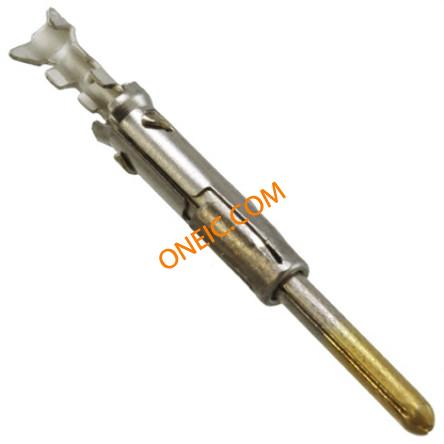

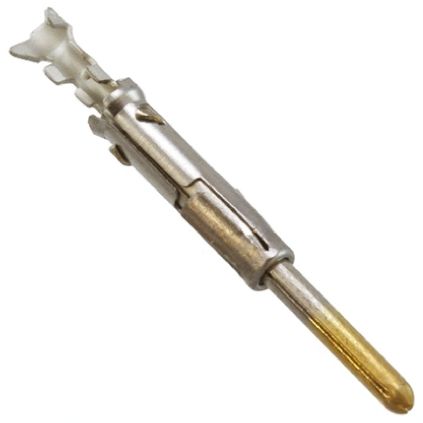

SM20ML1S31
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Contacts Trim Trio Pin Crimp 20 AWG Contact Sz 16 CONTACT PIN CRIMP 20-22AWG GOLD Male #16 Stamped-formed crimp contact CONTACT, PIN, S&F, 20-22 AWG, PK 25 Contact;Pin;16Size1.6mm(0.0625);20AWG;TRIMTRIO Crimp pin Male 22...20 AWG, SM20ML1S31, Souriau Souriau UTS 系列 公 压接端接 圆形 连接器 触芯, 22 → 20 AWG 线规格 |
| 分类 |
商业参数
| 其他名称 | SOU1763 | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 接触电阻 | ≤3mΩ | 最大额定电流 | 13 A |
机械参数
| 尺寸 | 16 | 重量 | 0.001 |
| 包装方式 | Bulk | 导线线规 | 20-22 AWG |
| 端接方式 | Crimp | 触点尺寸 | 16 |
| 触头类型 | Pin & Socket Contacts | 安装类型 | Cable Mount |
| 插针或插孔 | Pin | 接触镀层 | Gold |
| 触头材料 | Copper Alloy | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 接触件端接 | Crimp |
| 接触镀层厚度 | Flash | 线规或范围 - AWG | :22AWG |
产品信息
| 类型 | Stamped | 连接器性别 | Male |
| 系列 | UTS | 适用产品/相关产品 | Circular Connector |
环境参数
| 工作温度 | +70°C | ||
