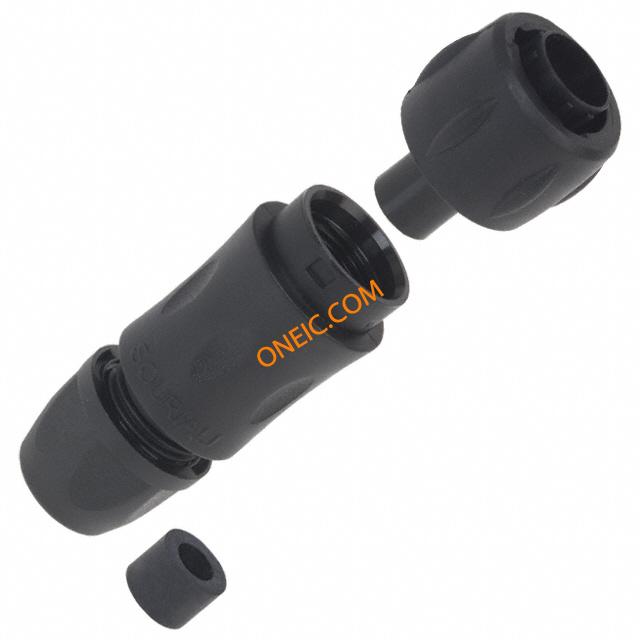

UTS6JC104P
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 4P Straight Pin Plug Backshell Size 10 CONN PLUG CABLE 4X1.6 MALE 4 Pole Male Straight Cable Mount MIL Spec Circular Connector, Shell Size 10 with Male Contacts connector,plasticcirc,size10,strplugw/bkshl,for4size16pincont,sealed Coupling Plug UTS Trim Trio UTS 4P Male 10, UTS6JC104P, Souriau Souriau 4路 电缆安装 直向 连接器 插头 , 公触点 |
| 分类 |
商业参数
| 商标名 | Trim Trio | 其他名称 | SOU1298 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Not Applicable | ||
电气参数
| 额定电压 | 125 V ac | 极数 | 4 |
| 最大额定电流 | 13A | 保护电压（VP）（2416） | IP 68/69 K |
机械参数
| 外形尺寸(长x宽) | 10 | 包装方式 | Bulk |
| 壳体颜色 | 63.2 | 外壳尺寸 | 10 |
| 方向 | Keyed | 端接方式 | Crimp |
| 触点尺寸 | 16 | 触头类型 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 电缆端类型 | 2.5...8 mm |
| 连接器类型 | Plug for Male Contacts | 紧固类型 | Bayonet Lock |
| 安装样式 | Wire | 外壳材料（壳体） | Thermoplastic |
| 连接器样式 | straight | 插入角度 | 10-4 |
| 锁定特性 | Bayonet locking | 触头材料 | CuNi+Au |
| 壳体材料 | Plastic | 端接排数 | 压接 |
| 端接样式 | Crimp Connection | 第一触头极性 | Male |
| 触点数 | 4 | 位数 | 4 |
| 外壳尺寸-插件 | 10-4 | 第一连接器极性 | Male |
| 外壳材料及表面处理 | Thermoplastic | ||
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Male |
| 系列 | UTS | CAD图纸 | 3D CAD Model |
| 产品子类型 | Plugs | 放大器类型 | 26.2 |
环境参数
| 防护等级 | IP68/69K - Dust Tight, Waterproof | 工作温度 | +105°C |
